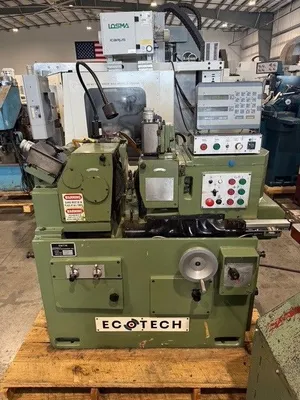

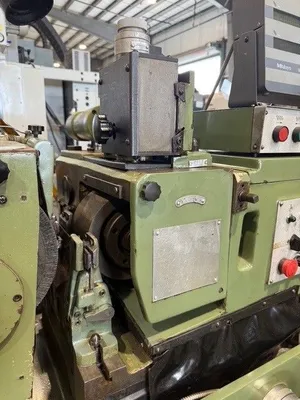

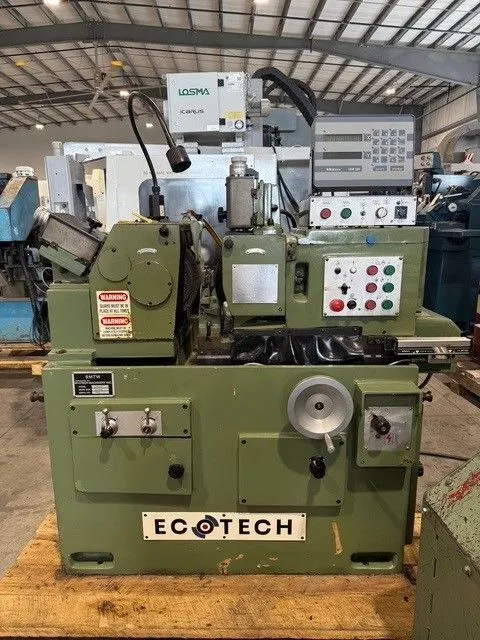

SMTW ECOTECH M1020 Centerless Grinder #7123

SMTW ECOTECH M1020 Centerless Grinder #7123
Stock # 7123
Model # M1020
Serial # 760
Minimum grinding diameter- 0.02”
Maximum grinding diameter- .80”
Max plunge grinding length with standard steady rest- 3.15”
Grinding wheel- 12” x 4” x 5”
Grinding wheel speed- 2,100 R.P.M.
Surface speed- 6,600 S.F.M.
Regulating wheel- 8” x 4” x 3”
Regulating wheel speed- 20 – 210 R.P.M.
Hand wheel infeed per division- 0.0001”
Hand wheel infeed per revolution- 0.012”
Max travel of regulating wheel- 3.00”
Adjustment angle on vertical plane- -2° - +4°
Adjustment angle on horizontal plane- -1°- +3°
Wheel dresser diamond infeed resolution- 0.0004”
Wheel dressing speed range- 20 – 60 I.P.M.
