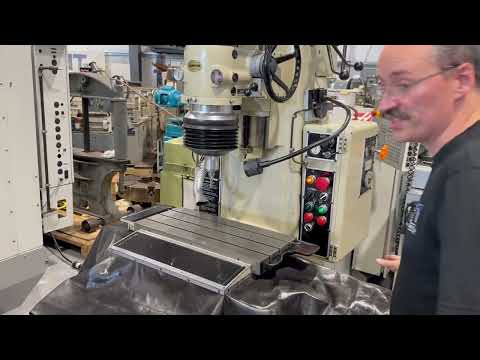

MOORE NASA CNC G-18 CNC Jig Grinder USA #7400
MOORE NASA CNC G-18 CNC Jig Grinder USA #7400
Model # G-18
Serial # G4055
Year of manufacture- 1991’ Machine / Retrofitted 2000’s
Table size- 11” x 24”
X axis travel- 17.5”
Y axis travel- 10.5”
Table top to wheel collet, minimum: 2"
Table top to wheel collet, maximum: 18"
Spindle to column ways: 10"
Spindle to column below ways: 13-1/2”
Infinitely variable spindle speeds: 25-225 R.P.M.
Infinitely variable spindle feeds: 2-120 S.P.M.
Spindle feed adjustable from: 0.100" to 3-5/8"
Grinding wheel speeds: 6,000-175,000 R.P.M.
Grinding capacity, grinding wheels: 1/64"-3-1/2"
Angular adjustment of spindle, either way: 1-1/2°
included angle: 3"
Radial offset of grinding spindle::
A: from center to 1-1/8" off center by rough adjustment while running
B: b) .0001" adjusted for distance of .100" anywhere in the 1-1/8" range
FAGOR CNC Control and pendant
40,000 R.P.M. Spindle head
Hardened, ground, and lapped steel ways (no gibs)
Hardened, ground, and lapped nitralloy leadscrews Leadscrews and nuts that are fully immersed & operated in a bath of oil
Machine is wired for 1/60/230 volt operation.
Machine weight- 4500 Lbs.
Machine dimensions 58” x 62” x 94” H (less control pendant)
Machine location- F.O.B. Sarasota, Florida
