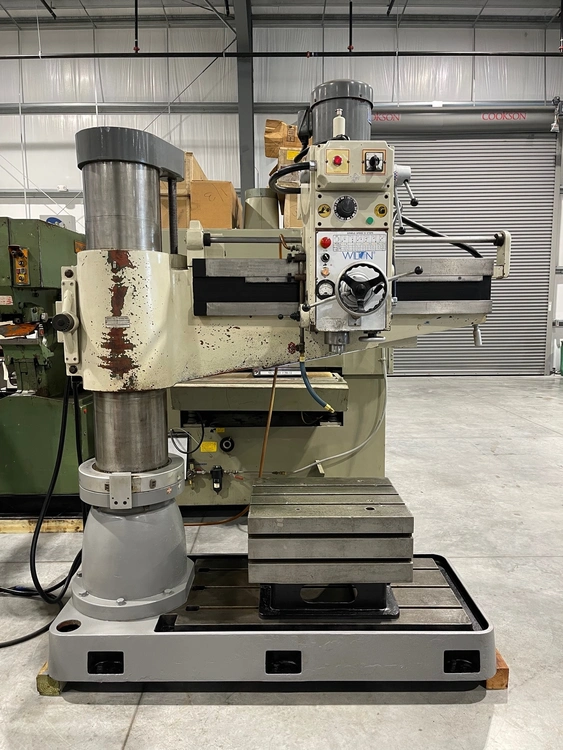

WILTON 1230R 4’ x 11-13/16” Radial Drill 2006’ #6773
Reference # 6773
Model # 1230R
Serial # 0602046
Year of manufacture- 2006’
Drilling capacity- 1-7/8” Steel / 2-5/16” Cast iron
Column diameter- 11-13/16”
Max / Min distance from spindle nose to base- 54” / 19-3/8”
Max / Min distance from column to spindle- 46” / 13-3/4”
Vertical arm travel- 34-5/8”
Spindle speeds- (12) 45 – 1,550 R.P.M.
Spindle taper- #4 Morse
Quill travel- 9-7/8”
Quill power down feeds- (3) .002 , .004 , .006
Box table 20” x 25” x 16-1/2” H
Built in Coolant system
1 H.P. Collant motor
5 H.P. Spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 5,000 Lbs.
Machine dimensions- 80” x 45” x 92” H
Machine location- F.O.B. Sarasota, Florida
This equipment has been sold. Similar equipment available now is shown below.
