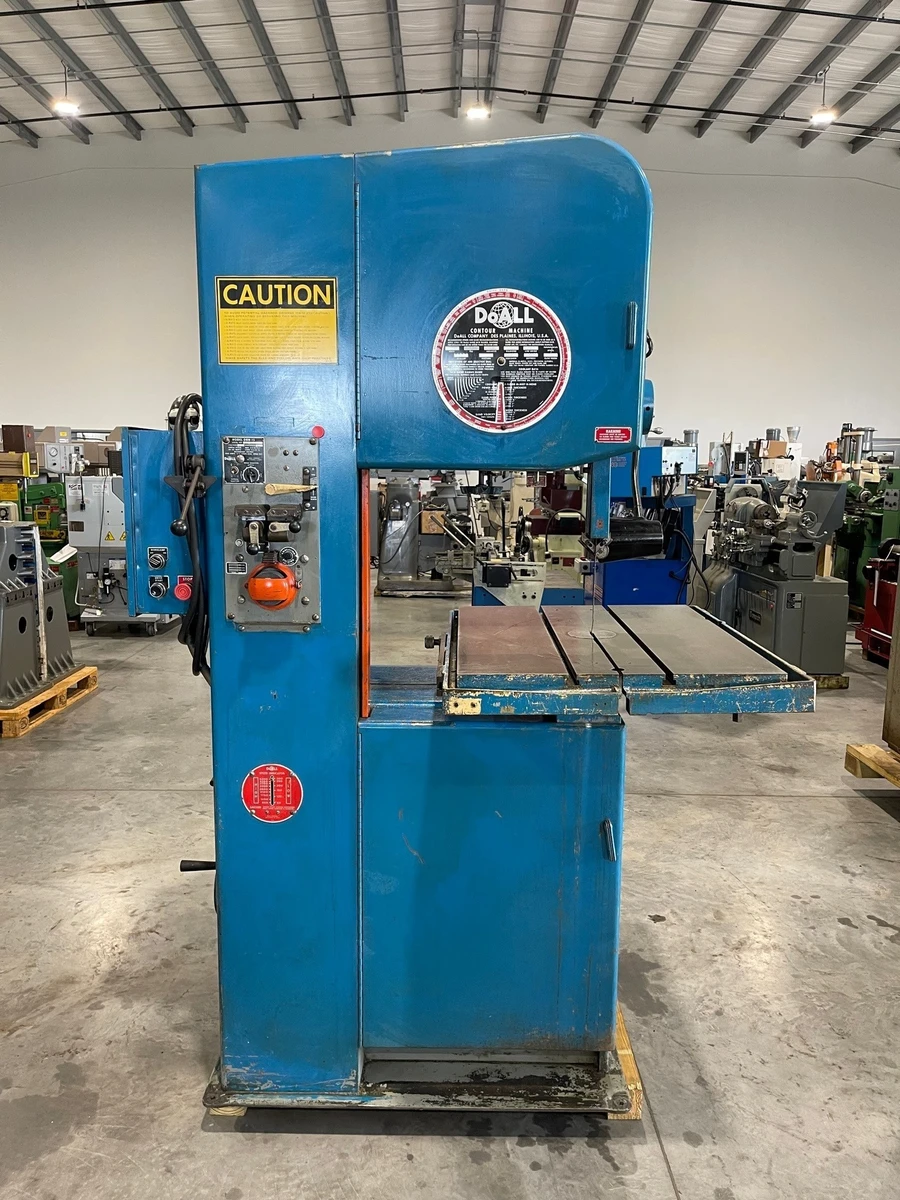

DoALL 2012-1AC 20” Vertical Band Saw USA 1976’
DoALL 2012-1AC 20” Vertical Band Saw USA 1976’ #6788
Reference # 6788
Model # 2012-1AC
Serial # 340-76207
Year of manufacture- 1976’
Throat capacity, band to column- 20”
Maximum work height- 12”
Band width- 1/16” – 1”
File/Saw band length- 153”/154”
Upper wheel adjustment- 3”
Variable band speeds in two ranges- 50– 5,200 F.P.M.
Number of table t-slots- (2) ½”
Work table size, t-slotted- 26-1/2” x 33-1/2”
Work table tilts- 45° right / 10° left
Table height (to floor)- 40-3/8”
Table stroke- 12”
Table feed speed- 0 – 6 F.P.M.
Table feed force- 0 – 175 pounds
***Please Note Table Tilt Support has a crack, it does not affect the operation/ see photo***
Butt welder with flash grinder and blade shear
Dual range transmission
3 H.P. drive motor
Machine is wired for 3/60/220 volt
Machine weight- 2,000 Lbs.
Machine dimensions- 55” x 58” x 81-1/2” H
Machine location- F.O.B. Bradenton, Florida
