WILTON 2475 33” Drill Press Power Downfeed HD Base#6895
Have one to sell?
$10,450.00 USD
ConditionUsed
1 available

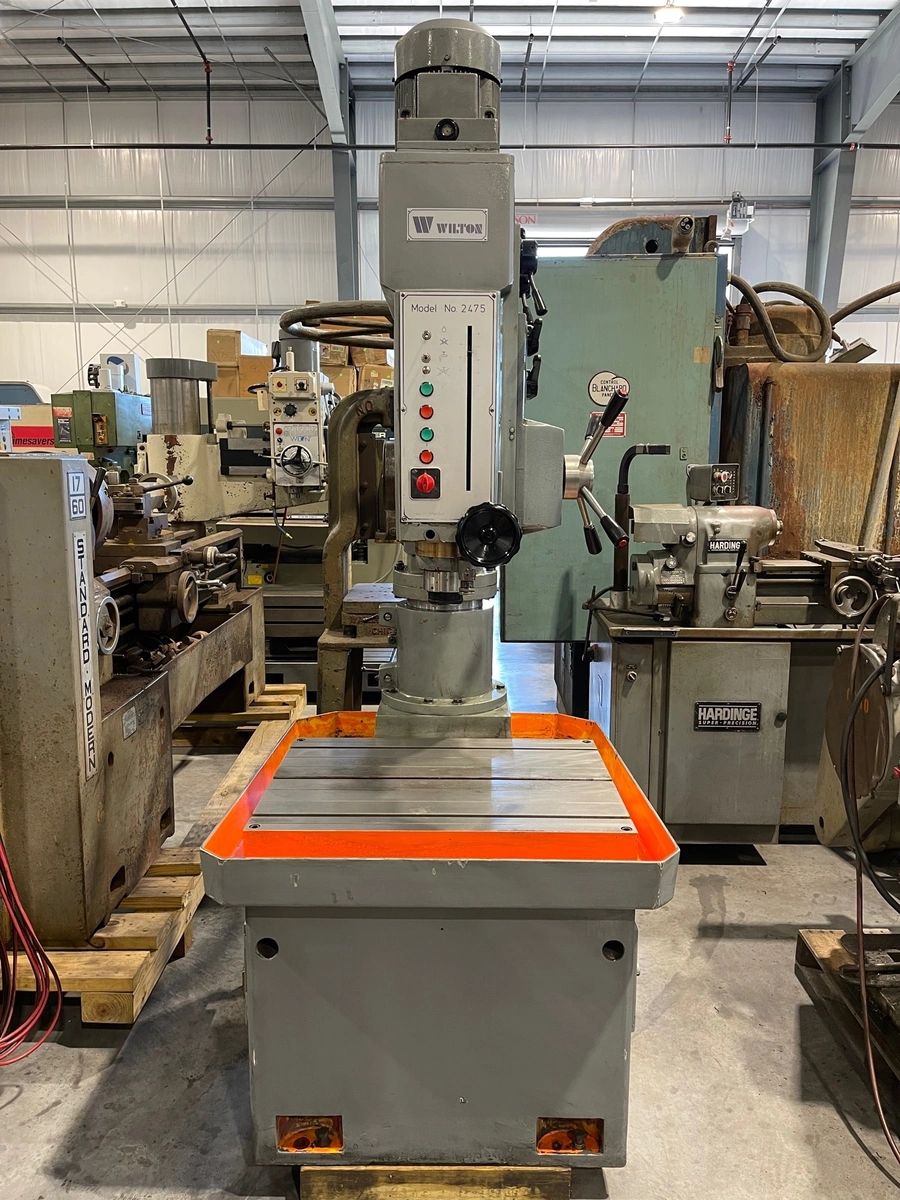

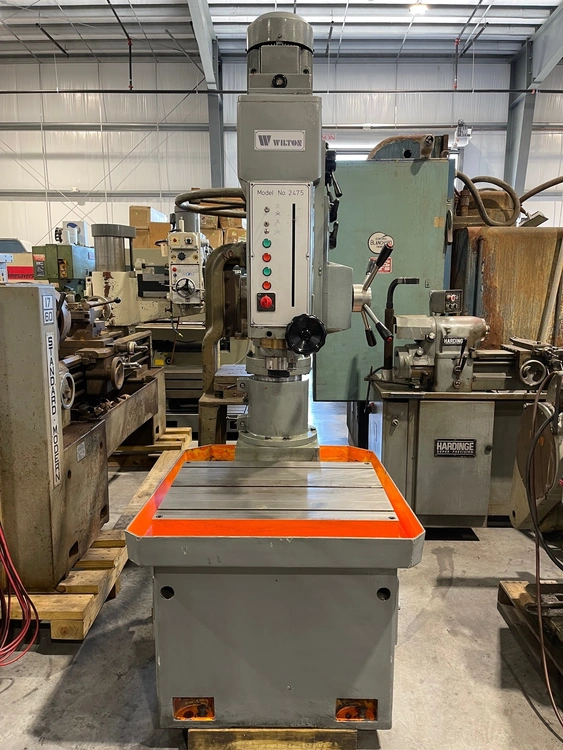

WILTON 2475 33” Drill Press Power Downfeed HD Base
WILTON 2475 33” Drill Press Power Downfeed HD Base #6895
Reference #6895
Model # 2475
Serial # 591/2304
Drilling capacity- 2-3/4” mild steel
Tapping capacity- 2-1/8” mild steel
Throat- 16-1/2”
Drills to center- 33”
Spindle taper- #5 Morse

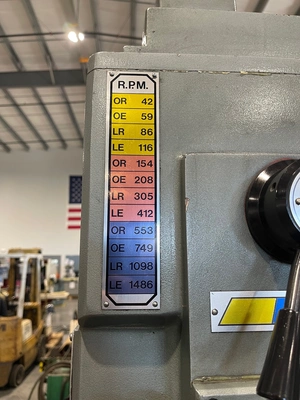

Spindle speeds- (12) 42,59,86,116,154,208,305,412,553,749,1098,1486 R.P.M.

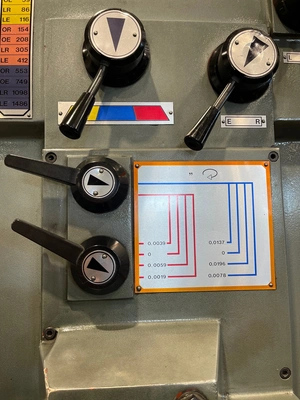

Spindle feeds- (3) .0039, .0059,0.0019
Spindle quill travel- 9”
Table dimensions- 23-1/2” x 31-1/2”
Outer table dimensions- 48” x 37-/12”
Column diameter- 9”
Table weight capacity- 850 Lbs.
Overall base- 30” x 54-3/4”
Production base
Electromagnetic clutch for downfeed
Coolant pump & built in tank
Spindle motor 7-1/2 H.P.
Machine can be wired for 220 volt / 440 volt operation
Machine is currently wired for 440 volt / 3 phase / 60 H.Z.
Machine weight- 3,000 Lbs.
Machine dimensions- 30” W x 55” L x 100’’ H
Machine location- F.O.B. Sarasota, Florida
