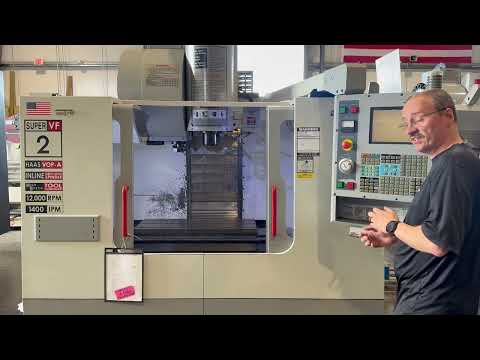

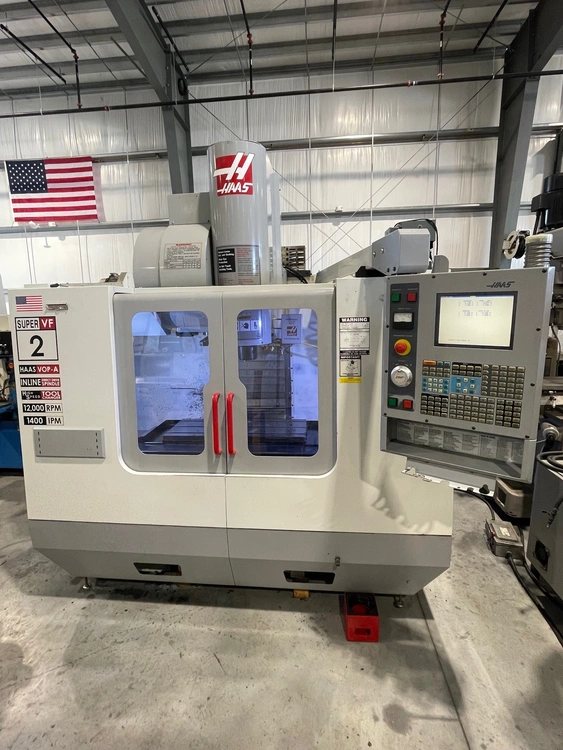

HAAS #VF-2SS CNC Vertical Machining Center 2003’ SUPER SPEED USA #6936
Have one to sell?
$22,500.00 USD
ConditionUsed
1 available
HAAS #VF-2SS CNC Vertical Machining Center 2003’ SUPER SPEED USA
HAAS #VF-2SS CNC Vertical Machining Center 2003’ SUPER SPEED USA
Reference # 6936
Model # VF-2SS
Serial # 32293
Year of manufacture- 8/2003’
Table size- 16” x 36”
Number of T-slots- (3)
Max table weight- 3000 Lbs.
Travels-
X axis- 30”
Y axis- 16”
Z axis- 20”
Maximum distance from spindle nose to table- 24”
Minimum distance from spindle nose to table- 4”
Maximum spindle speeds- 12,000 R.P.M.
Spindle taper- BT-40
Max cutting rate- 833 I.P.M.
X,Y,Z Rapids- 1400 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3”
Max tool length- 11”
Max tool weight - 12 Lbs.
Programmable coolant nozzle
Side mount tool changer 24 tool station
Telescopic way covers
Air gun
(6) Leveling pads
Chip Auger
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Control options- Programmable coolant, Rigid tapping, DNC, M19 spindle orient, Quick code
Machine hours -Servo Time 7,583, Motion Time 21,811, Spindle Time 22,022
30 H.P. Spindle motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 8000 Lbs.
Machine dimensions- 111’’ L x 91’’ W x 91’’ H
Machine location- F.O.B. Sarasota, Florida
