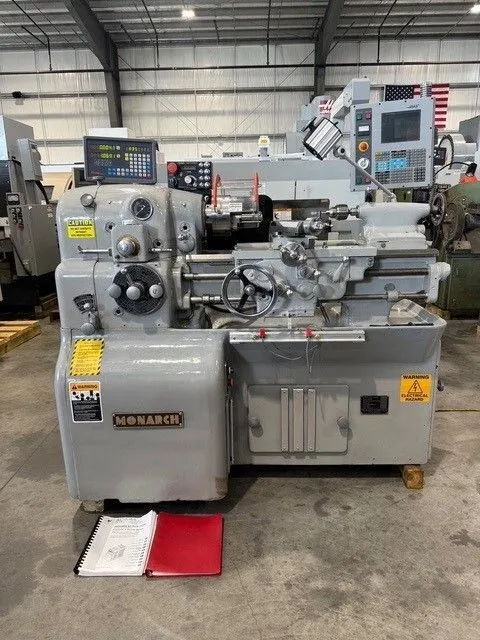

MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics/Rebuilt USA #7156
Have one to sell?
ConditionUsed
1 available
$16,500.00 USD
MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics / Rebuilt USA #7156
MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics / Rebuilt USA #7156
Reference # 7156
Model # 10EE
Serial # 17169
Year of Manufacture- 7/1943’ / Rebuilt 2019’
Swing over bed- 12-1/2"
Swing over cross slide- 7-1/4"
Distance between centers- 20”
Hole through spindle- 1-13/32"
Spindle nose, Camlock, type- D-1-3
Infinitely variable spindle speeds to- 2,000 R.P.M.
Headstock and tailstock spindle center taper- #2 Morse
Tailstock spindle diameter- 1-1/4"
Tailstock spindle travel- 3-1/2"
(60) Threads, inch- 3-184 T.P.I.
(50) Feeds, longitudinal- .0005-.0161 I.P.R.
Updated Tas-Iron Drive with R.P.M. display
Updated electronics with new 5 H.P. motor
2 AXIS DRO Digital Read Out
Work light
Flame hardened bed ways
6” 3 Jaw Chuck
Jacobs drill chuck
Taper attachment
Electronic Carraige stops
***No Threading Dial***
5 H.P. 3/60/230 volt spindle drive motor and electrical controls
Machine is wired for 220 Volt single phase input
Machine weight- 3,500 Lbs.
Machine dimensions- 64” L x 32” W x 52’’ H
Machine location- F.O.B. Sarasota, Florida
