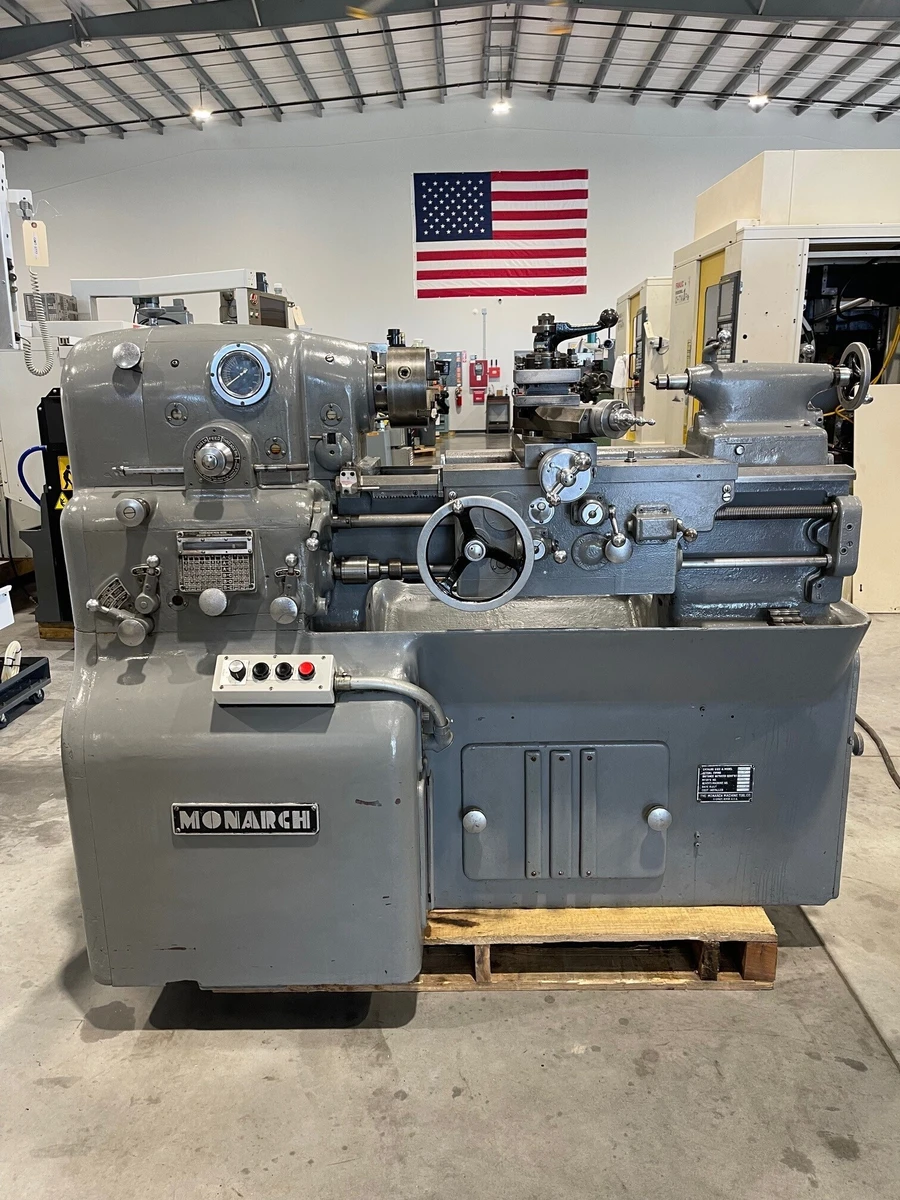

MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics 10HP USA
MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics 10HP USA #6976
Reference #6976
Model # 10EE
Serial # 33036
Year of Manufacture- 9/1950’
Swing over bed- 12-1/2"
Swing over cross slide- 7-1/4"
Distance between centers- 20”
Hole through spindle- 1-13/32"
Spindle nose, Camlock, type- D-1-3
Infinitely variable spindle speeds to- 2,000 R.P.M.
Headstock and tailstock spindle center taper- #2 Morse
Tailstock spindle diameter- 1-1/4"
Tailstock spindle travel- 3-1/2"
(60) Threads, inch- 3-184 T.P.I.
(50) Feeds, longitudinal- .0005-.0161 I.P.R.
Updated electronics with 10 H.P. motor
Flame hardened bed ways
5” 3 Jaw Chuck
Live center
Tool post
10 H.P. 3/60/230 volt spindle drive motor and electrical controls
Machine is wired for 230 Volt / 3 phase / 60 H.Z
Machine weight- 3,500 Lbs.
Machine dimensions- 64” L x 32” W x 52’’ H
Machine location- F.O.B. Sarasota, Florida
