MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics DRO USA #7032
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD

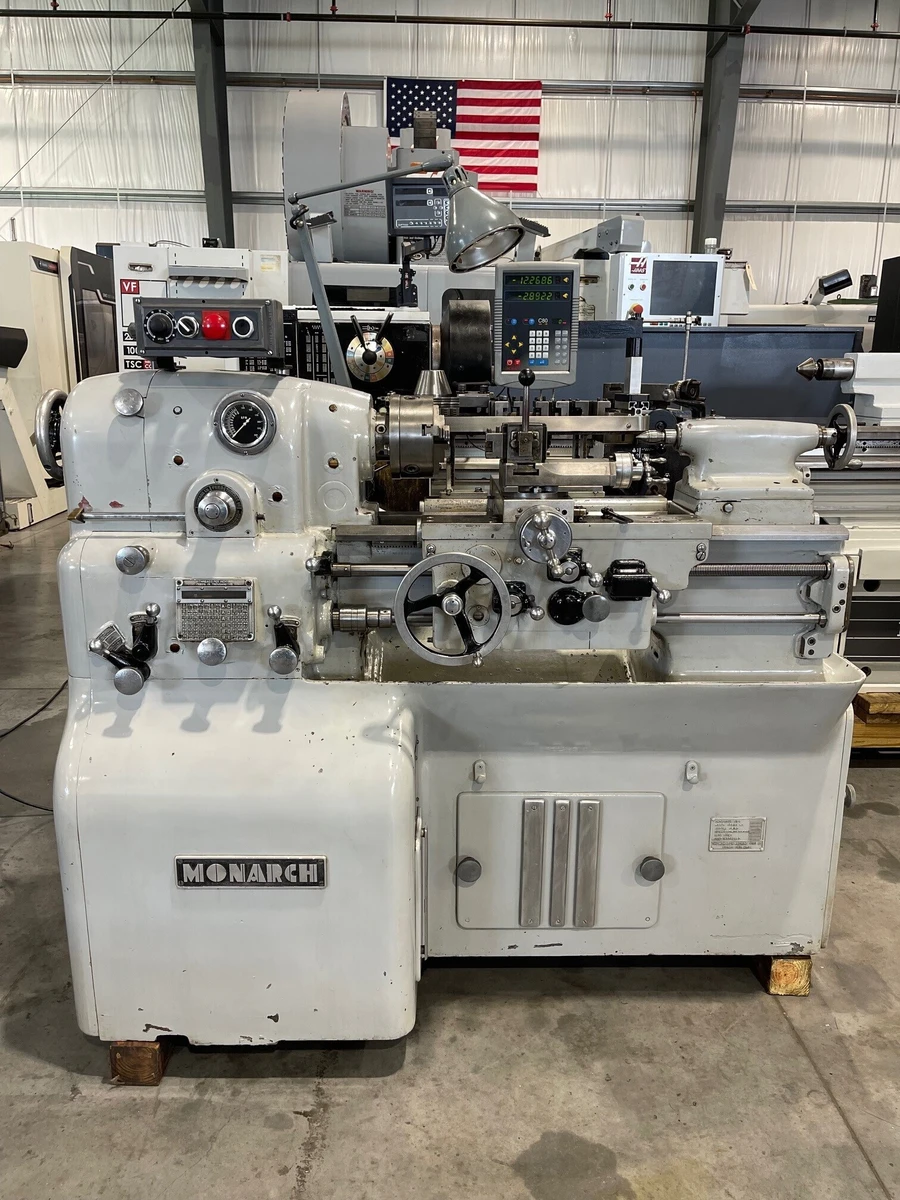

MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics DRO USA
MONARCH 10EE Precision Toolmaker’s Lathe Updated Electrics DRO USA #7032
Reference # 7032
Model # 10EE
Serial # 43825
Year of Manufacture- 5/1955’
Swing over bed- 12-1/2"
Swing over cross slide- 7-1/4"
Distance between centers- 20”
Hole through spindle- 1-13/32"
Spindle nose, Camlock, type- D-1-3
Infinitely variable spindle speeds to- 2,000 R.P.M.
Headstock and tailstock spindle center taper- #2 Morse
Tailstock spindle diameter- 1-1/4"
Tailstock spindle travel- 3-1/2"
(60) Threads, inch- 3-184 T.P.I.
(50) Feeds, longitudinal- .0005-.0161 I.P.R.
NEWAL 2 AXIS DRO
Updated electronics with 5 H.P. motor
Flame hardened bed ways
6 BISON” 3 Jaw Chuck
Live center
Tool post & (7) Holders
5-C nose piece and manual draw bar
5 H.P. 3/60/230 volt spindle drive motor and electrical controls
Machine is wired for 230 Volt / 3 phase / 60 H.Z
Machine weight- 3,500 Lbs.
Machine dimensions- 64” L x 32” W x 52’’ H
Machine location- F.O.B. Sarasota, Florida
