| X axis | 41.34" | 1,050 mm |
| Y axis | 20.87" | 530.1 mm |
| Z axis | 20.08" | 510.03 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 21.66" | 550.16 mm |
| Table-L | 61.18" | 1,554 mm |
| # Axis | 3 | 3 |
| Dimensions | 118” L x 112” W x 114” H | 118” L x 112” W x 114” H |
| Weight | 15,500 Lbs. | 15,500 Lbs. |

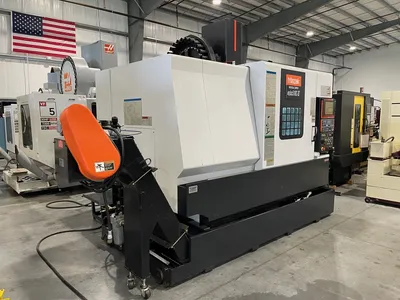

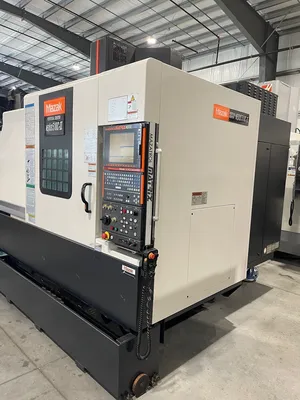

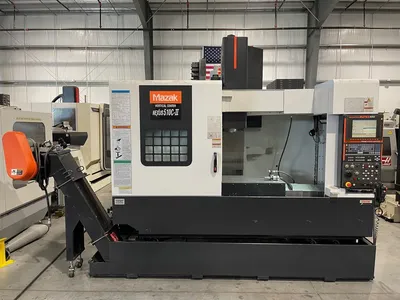

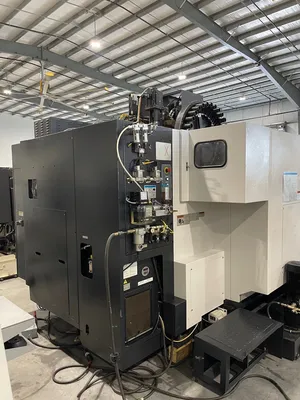

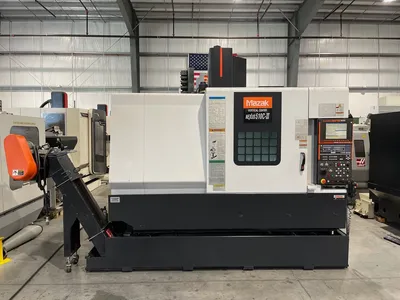

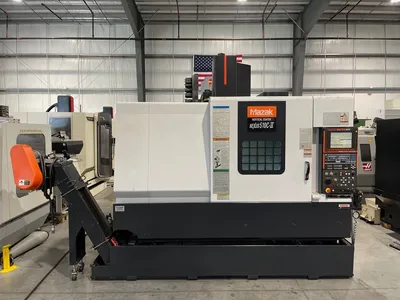

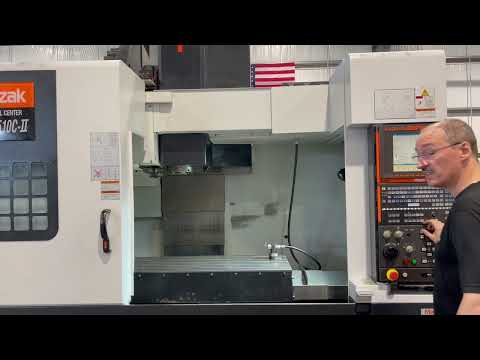

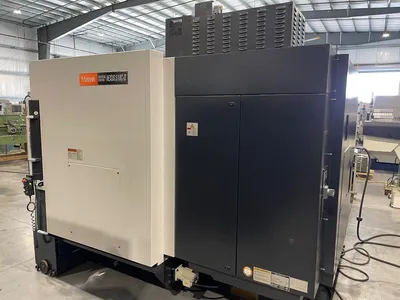

MAZAK VCN 510C II CNC Vertical Machining Center MATRIX Nexus 2009’ #7115
Stock #7115
Model # VCN-510C II
Serial # 213792
Year of manufacture- 12/2008’

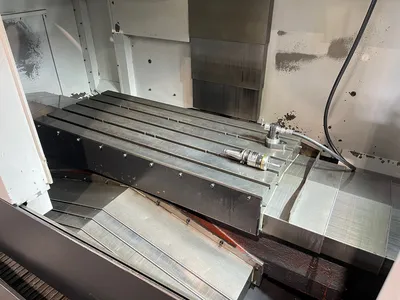

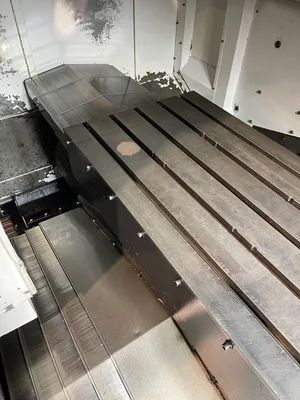

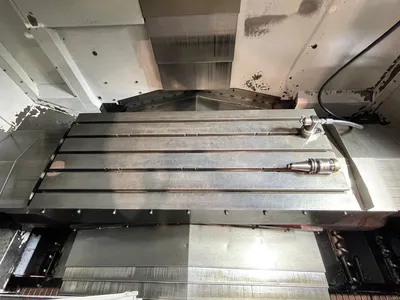

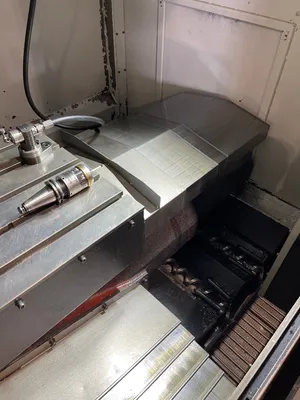

Table size- 51.18” x 21.65”
Number of T slots- (3)
Maximum table load capacity- 2640 Lbs. (evenly distributed)
X axis travel- 41.34”
Y axis travel- 20.08”
Z axis travel- 20.08’’
Distance from table top to spindle nose- 5.90” – 25.98”
Distance from column surface to spindle center- 22.67”

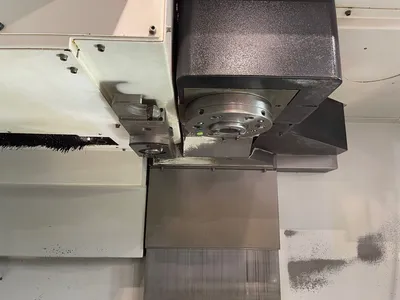

Maximum spindle speed- 12,000 R.P.M.
Spindle taper- Cat 40
Rapid traverse on X,Y & Z axes- 1417 I.P.M.
Cutting feedrate on X,Y & Z axes- 0.03 – 315 I.P.M.

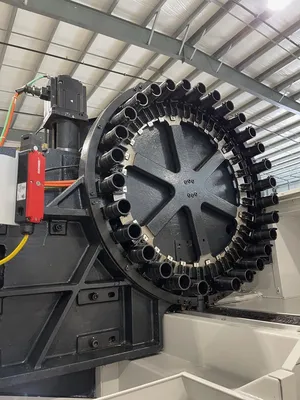

Side mount tool changer capacity- 30 tools
Maximum tool diameter- 3.15”
Maximum tool length- 13.78”
Maximum tool weight- 17.64 Lbs.
Tool change time- 1.3 seconds (tool to tool)

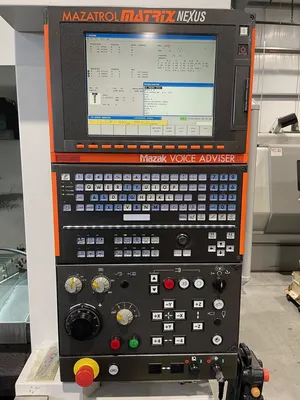

Mazatrol MATRIX NEXUS CNC control (12.1” color LCD)
Machine hours- Operation time- 18,266 / Cutting time- 14,037

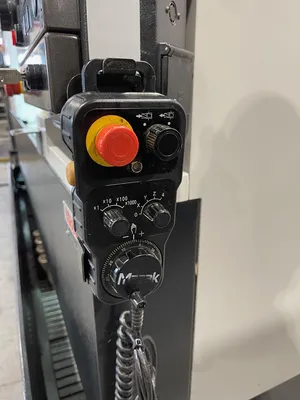

“MPG” Manual pulse generator
(2) USB ports

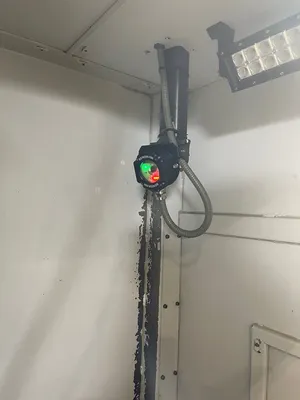

LED Work light
High Pressure Thru spindle coolant option
Flood coolant option
Control options- EIA , Spiral, EIA 3D comp, Rotation, Geometric, Scaling, Ext-Data I/O, Shape Comp, Thread, Inverse Time, Auto TLM, Synchronized tapping, Variable 600 sets, EIA Herical tap cycle, EIA pattern cycle, Tilted working plane, Pitch error comp

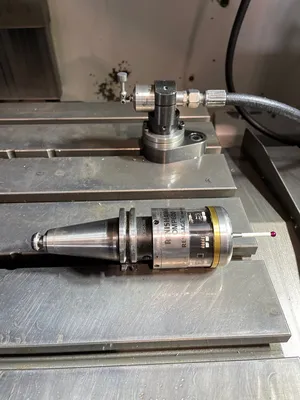

REINSHAW Tool Probe & Reader

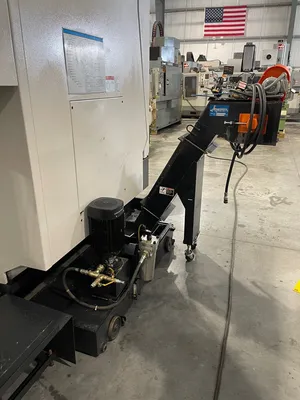

Belt type Chip conveyor
Coolant tank 66.04 gallons
25 H.P. Main spindle motor

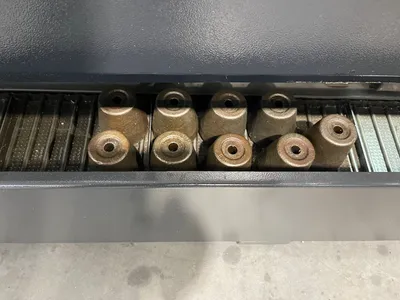

Leveling pads
Machine is currently wired for 230 Volt / 3 phase / 60 H.Z.
Machine weight- 15,500 Lbs.
Machine dimensions- 118” L x 112” W x 114” H (less conveyor)
Machine location- F.O.B. Sarasota, Florida
