| Tonnage | 90 T | 81.647 t |
| Angle (L1) | 5" | 127 mm |
| Angle (L2) | 5" | 127 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Power | 10 hp | 10 hp |
| Throat | 10" | 254 mm |
| Stroke | 4.875" | 123.82 mm |
| Dimensions | 32” W x 80” L x 64’’ H | 32” W x 80” L x 64’’ H |
| Weight | 4400 Lbs. | 4400 Lbs. |

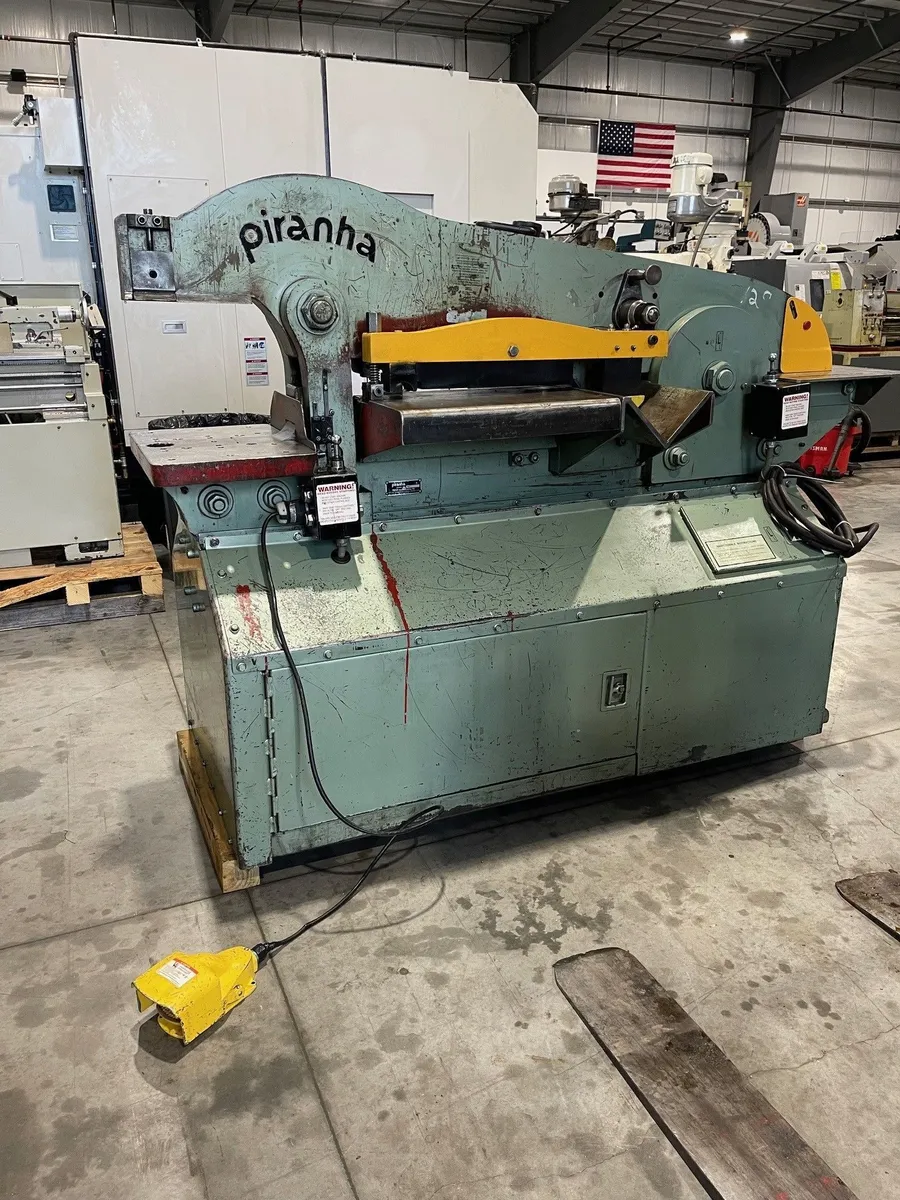

PIRANHA P-90 90 Ton Hydraulic Ironworker 1994’ USA 7118
Reference #7118
Model # P-90
Serial # P-90-660
Year of manufacture- 1994’
Tonnage – 90 Ton
Throat depth- 10”
Open height- 15”
Closed height w/o Die block- 10-1/8”
Stroke length- 4-7/8”
Platen table size- 12” x 21”
Punch hole size- 1-1/8” x 1”
Plate shear- 12” x 1” / 18” x 3/4”
Angle shear- 6” x 6” x 5/8”
Bar shear- ½” – 2” rounds / 1-3/8” square
Coper / Notcher- 4” x 6” x 3/8”
Punch strokes per minute- 32 @ ¾”
Work station height- 42”
25 gallon hydraulic reservoir
10 H.P. Main motor
Machine is currently wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 4400 Lbs.
Machine dimensions- 32” W x 80” L x 64’’ H
Machine location- F.O.B. Sarasota, Florida
This equipment has been sold. Similar equipment available now is shown below.
