| Throat | 18.5" | 469.9 mm |
| Work Height | 20.5" | 520.7 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 14.92' | 4,547.6 mm |
| FPM | 75-400 FPM | 75-400 FPM |
| Dimensions | 60” x 110 “ x 98” H | 60” x 110 “ x 98” H |
| Weight | 4500 Lbs. | 4500 Lbs. |

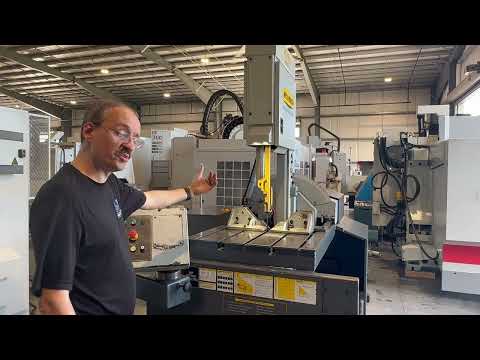

HYD-MECH V-18 Series II 18” x 20” Vertical Band Saw 2007’ #7142
Reference # 7142
Model # V-18 Series II
Serial # J0107227
Year of manufacture- 1/2007’
Capacity at 90° rectangles- 18” x 20”
Capacity at 90° rounds- 17.5” diameter
Capacity at 45° rectangles- 18” x 13”
Capacity at 45° rounds- 13”
Blade length- 14’ 11”
Blade width- 1-1/4”
Blade thickness- .035”
Blade speed- 65 – 385 S.F.M.
Blade wheel diameter- 19”
Table height- 38”
Hydraulically actuated head tilt to 45 degrees in either direction
Hydraulically actuated blade tension
Hydraulically actuated guide arm positioning
Left and right full stroke hydraulic vises
Hardened and replaceable wear strips
Variable frequency drive
Powered blade brush
2 H.P. hydraulic drive motor
7.5 H.P. blade drive motor
Machine is wired for 3/60/208 volt operation.
Machine weight- 4500 Lbs.
Machine dimensions- 60” x 110 “ x 98” H
Machine location- F.O.B. Sarasota, Florida
