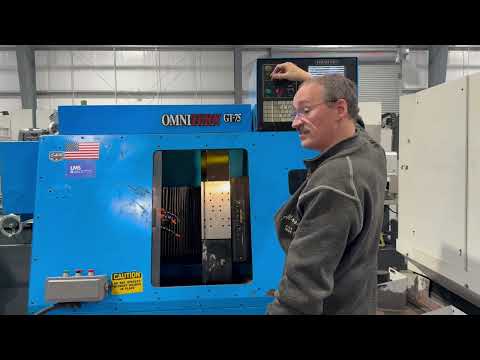

OMNITURN GT-75 Series CNC Gang Lathe # 7226
Have one to sell?
$9,500.00 USD
ConditionUsed
1 available
OMNITURN GT-75 Series CNC Gang Lathe # 7226
OMNITURN GT-75 Series CNC Gang Lathe # 7226
Reference # 7226
Model # GT-75 Series
Serial # 158462
Maximum turning diameter- 6”
X-axis travel- 12’’
Z-axis travel- 9’’
Rapid traverse rate- 300 I.P.M.
Tooling height- ½”
Tooling plate size- 6” x 14”
Collet taper- 5-C
Bar capacity-1-1/16”
Spindle nose- 4° can nose
Spindle speed range- 10 – 4,000 R.P.M.
Spindle programming- R.P.M. or C.S.F.
Thread range (R.H., L.H., Internal, External, Inch, Metric, Tapered, Multi start)- 2-180 T.P.I.
OMNI TURN PC based two-axis CNC & slide with 9" monochrome CRT
Pneumatic collet drawbar with regulator (M function controlled)
Operator station with dual palm cycle start buttons, collet control, and emergency stop
Work light
Self-contained flood coolant system (M function controlled)
Removable chip pan
Complete enclosure
AC inverter drive for spindle
5 H.P. drive motor and electrical controls
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 2000 Lbs.
