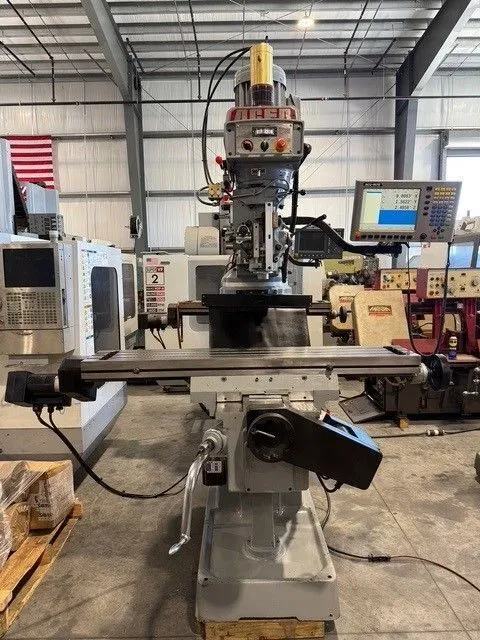

ACER #EVS-3VKH-54 CNC Vertical Milling Machine 2014’ MILPWR #7364

ACER #EVS-3VKH-54 CNC Vertical Milling Machine 2014’ MILPWR #7364
Reference #7364
Model # EVS-3VKH-54
Serial # N14030132
Year of manufacture - 2014’
Table working surface- 10" x 54"
Number of t-slots- (3)
Range: longitudinal (x)- 34”
cross (y)- 16”
vertical, knee (z)- 16”
quill- 5”
Ram travel- 24”
Head tilt, left and right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
Turret rotation- 360 degrees
Maximum/Minimum distance, spindle nose to top of table- 18” / 2”
Maximum/Minimum throat distance- 28.75"/4"
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds- 60-4,200 R.P.M.
Spindle taper- R-8
