HAAS TL-3 CNC Toolroom Teach Style Lathe 2008’ USA #7462
Reference # 7462
Model # TL-3
Serial # 3082640
Year of manufacture- 6/2008’
Maximum swing- 20”
Swing over cross slide- 13”
Maximum cutting diameter- 16”
Maximum cutting length- 60”
Distance between centers- 60”
X axis travel- 12”
Z axis travel- 60”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.5”
HAAS CNC control
Control options-, DNC, Quick code, Barfeeder interface, Intuitive Programming system
Machine hours- Servo time- 3,709 In motion time- 2,772, Spindle time- 7,241

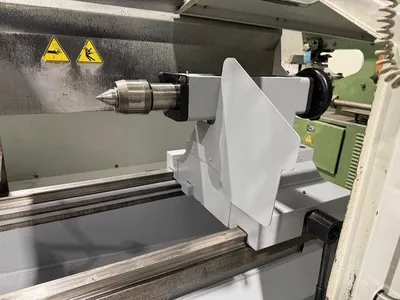

Tailstock with live center
12” 3 Jaw Chuck “Adjust-Tru” Type
Dorain tool post
Coolant tank & pump
Chuck wrench
Main spindle motor 18 H.P.
Machine is wired for 208/230 volt / 3 phase / 60 H.Z.
Machine weight- 8500 Lbs.
Machine dimensions- 118” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
