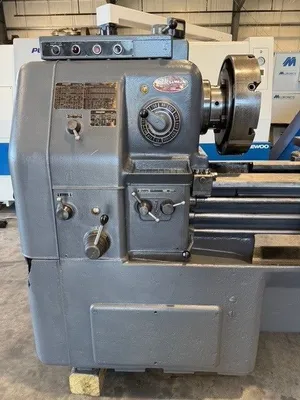

OKUMA LS 21” x 59”cc Engine Lathe Japanese #7499

OKUMA LS 21” x 59”cc Engine Lathe Japanese #7499
Reference #7499
Model # LS
Serial # 4201-10786
Swing over bed- 21.2”
Swing over the cross slide- 13.7”
Distance between centers- 59”
Diameter of hole in spindle- 1-11/16”
(12) Spindle speeds- 35 – 1,800 R.P.M.
Spindle nose, Camlock, size- D1-6
Taper of headstock spindle bore- # 4 Morse
(32) Feeds: longitudinal- 0.001"-0.028"
Cross- 0.001"-0.014"
Range of threads: Inch- 4-56 T.P.I.
Metric- 0.5 – 7 mm
Tailstock spindle diameter- 2.56”
Tailstock spindle travel- 5.9”
Taper of tailstock spindle bore- # 4 Morse
Compound feed screw has micrometer dials reading up to- 0.001”
