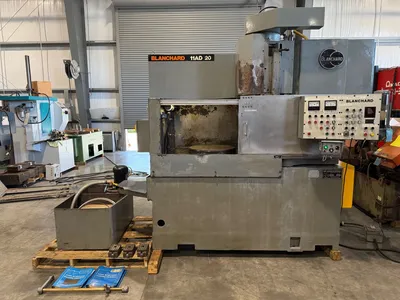

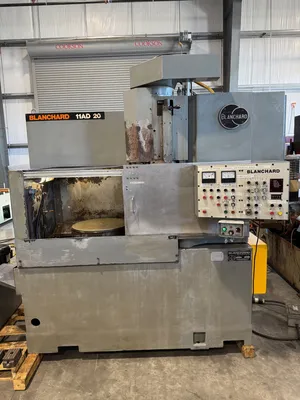

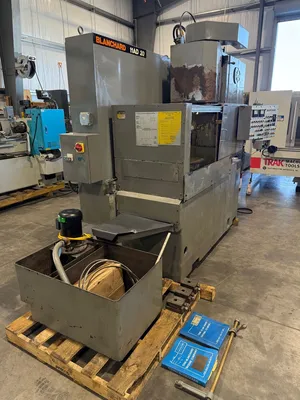

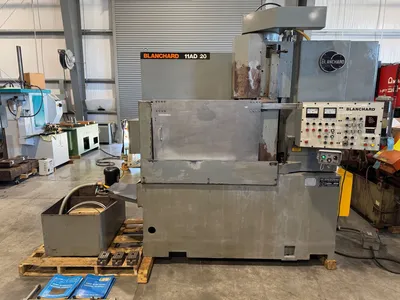

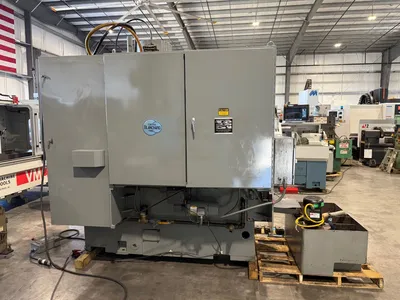

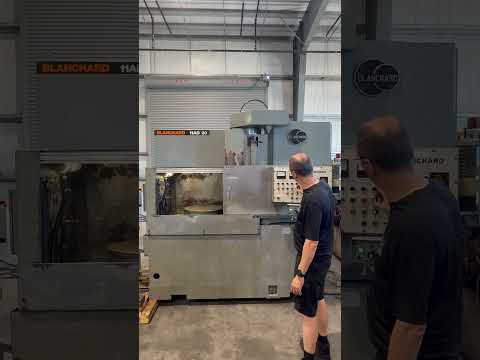

BLANCHARD # 11AD-20 Vertical Rotary Surface Grinder 1995’ USA #7502
Have one to sell?
ConditionUsed
1 available
$27,500.00 USD
BLANCHARD # 11AD-20 Vertical Rotary Surface Grinder 1995’ USA #7502
BLANCHARD # 11AD-20 Vertical Rotary Surface Grinder 1995’ USA #7502
Reference # 7502
Model # 11AD-20
Serial # 15899
Year of manufacture- 1995’
Table diameter- 20”
Maximum table load- 500 Lbs.
Maximum swing inside splash guards- 21”
Maximum work height under the grinding wheel- 12”
Table speeds Varaible- 15 - 75R.P.M.
Wheel speed-1,200 R.P.M.

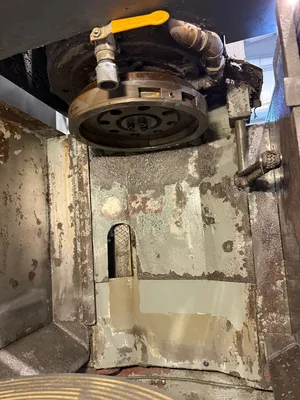

Wheel diameter- 11”
Power downfeed range or grinding wheelhead- .001 to .100 I.P.M.

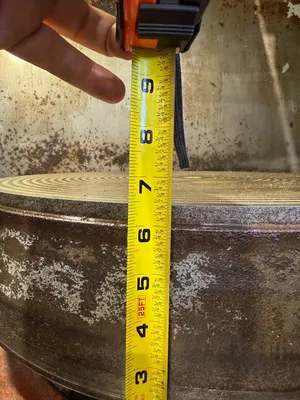

Approx chuck thickness- 3/8”

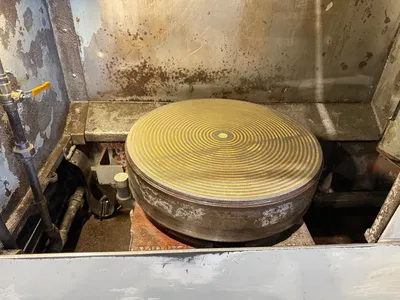

20" Diameter electromagnetic chuck with NEUTROFIER control
Motorized power rapid traverse to grinding wheelhead (vertical downfeed of wheelhead)

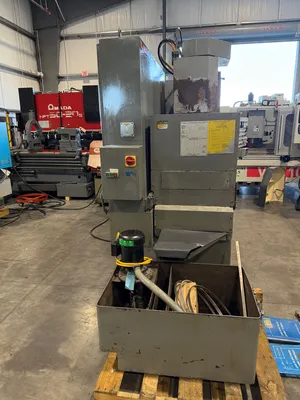

Coolant system with machine splash guards

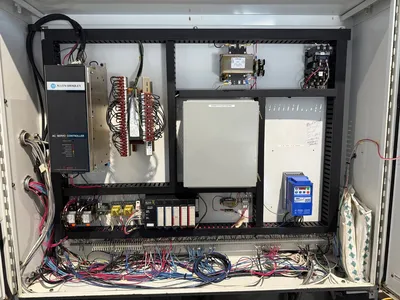

Machine manuals & Schematics
¼ H.P. 3/60/230-460 volt wheelhead rapid traverse motor
2 H.P. 3/60/230-460 volt table drive motor

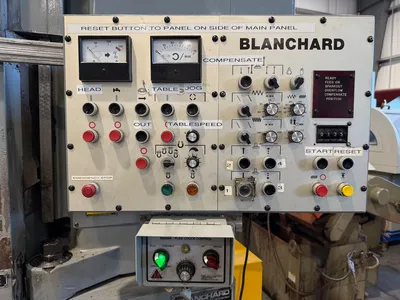

15 H.P. 3/60/230-460 volt spindle drive motor with electrical controls and load meter
Machine is wired for 230 volt operation.
Machine weight- 9500 Lbs.
Machine dimensions- 92” L x 56” W x 105’’ H
Machine location- F.O.B. Sarasota, Florida
