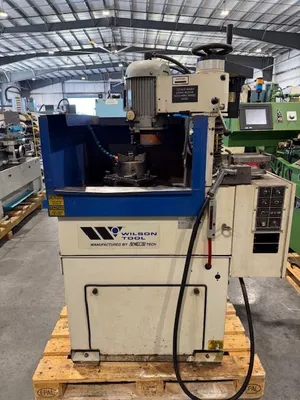

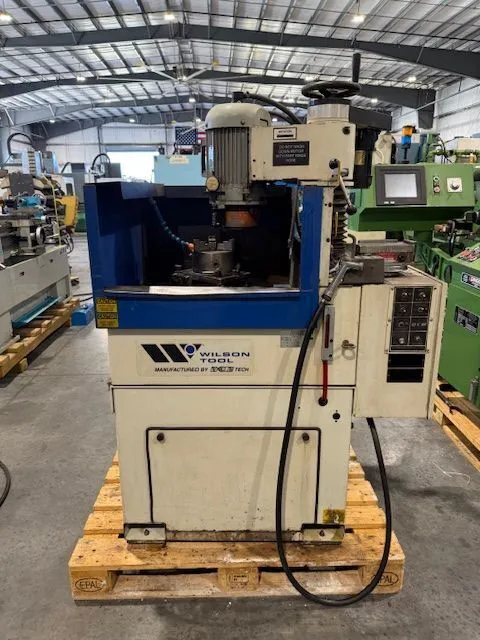

DCM PDG-5-3 AUTOMATIC Rotary Surface Grinder #7504
DCM PDG-5-3 AUTOMATIC Rotary Surface Grinder #7504

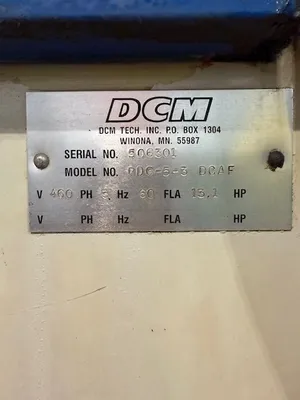

Reference #7504
Model # PDG-5-3
Table diameter- 18”
Table speed- 20 R.P.M.
Spindle speed- 3,600 R.P.M.
Spindle grinding wheel size- 6”
Spindle grinder wheel size- 1-1/4”
Tilt angle- 0-10 degrees
Autofeed rates- 0.0005” – 0.020” I.P.M.
Manual handwheel graduations- 0.001”

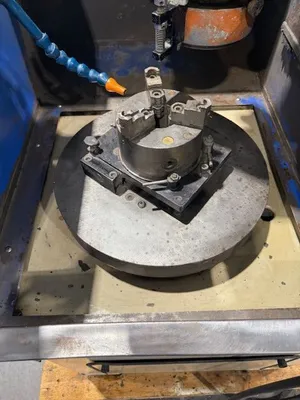

6” BISON 3 jaw chuck

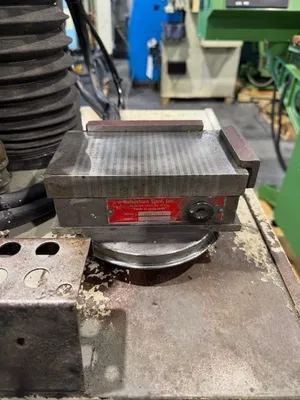

5” x 7” SUBURBAN Tool Magnetic chuck
Leveling pads

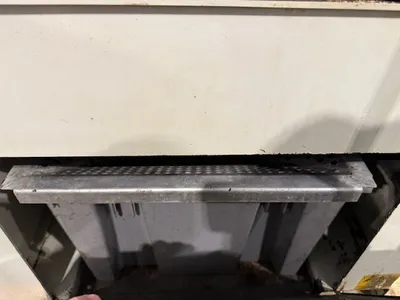

Removable coolant pan in base

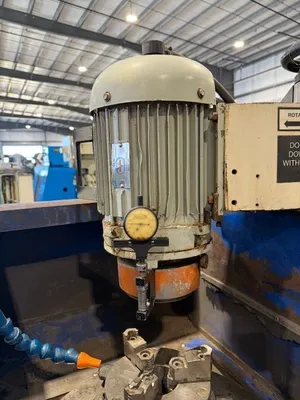

Spindle motor 5 H.P.
Downfeed motor ½ H.P.
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 1500 Lbs.
Machine dimensions- 42” x 36” x 65” H
Machine location- F.O.B. Sarasota, F.L
