| X axis | 40.75" | 1,035 mm |
| Y axis | 20" | 508 mm |
| Z axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | CAT-40 | CAT-40 |
| # Axis | 4 | 4 |
| Dimensions | 135” x 98” x 104” H | 135” x 98” x 104” H |
| Weight | 10,000 Lbs. | 10,000 Lbs. |

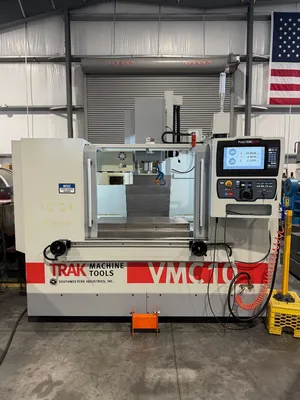

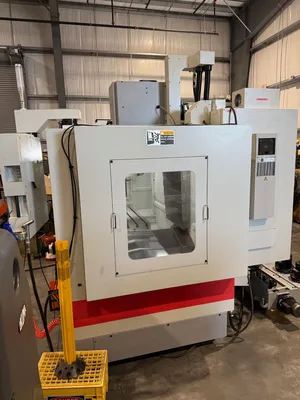

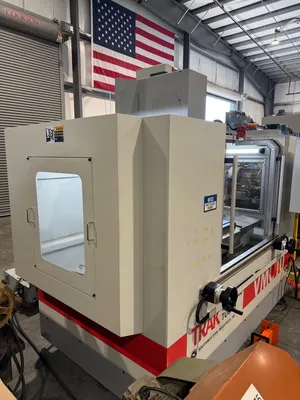

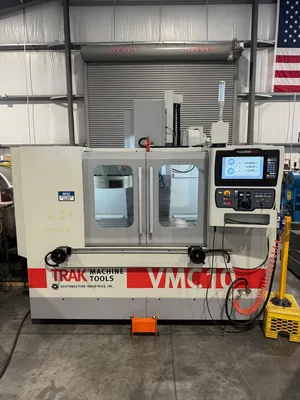

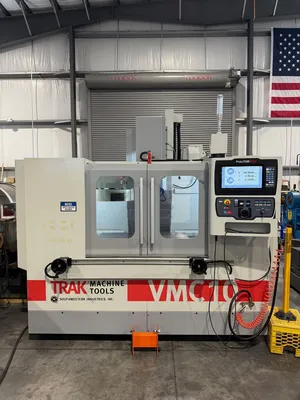

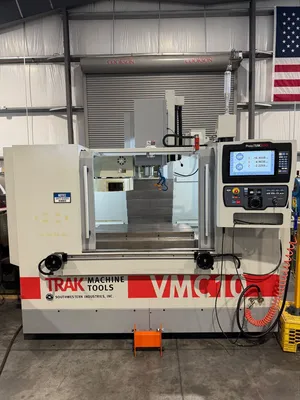

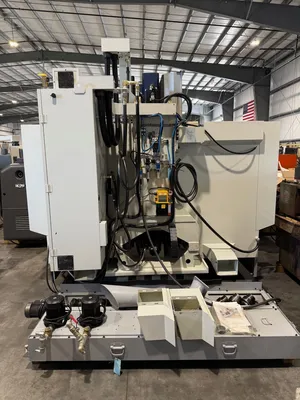

TRAK VMC10 TMC10 CNC Vertical Machining Center 2020’ USA #7503
Reference #7503
Model # VMC10

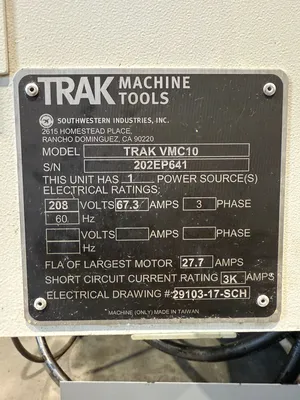

Serial # 202EP641
Year of manufacture- 2020’

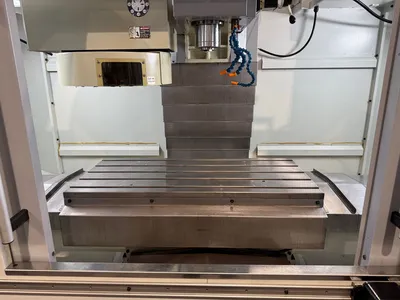

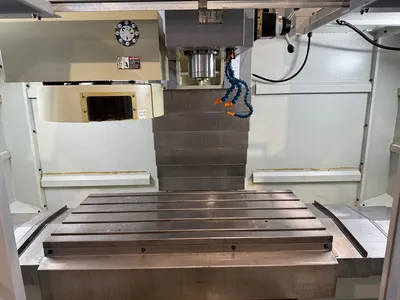

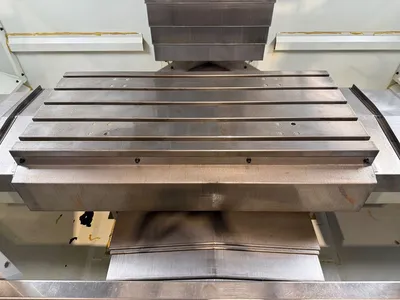

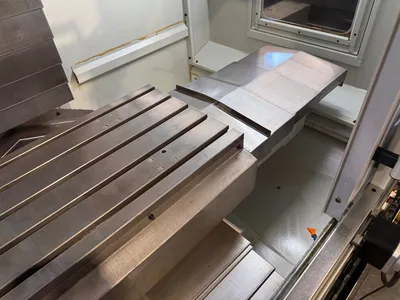

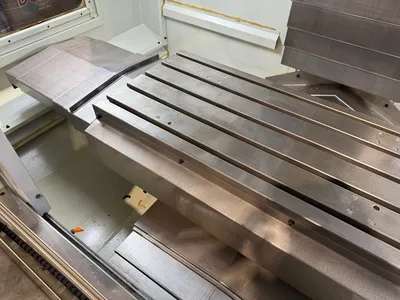

Table size- 44.09” x 19.69”
Table capacity- 1,760 Lbs.
X axis travel- 40.75”
Y axis travel- 20”
Z axis travel- 20”
Rapid traverse on X,Y,Z- 400 I.P.M. / 1,000 I.P.M.
Spindle taper- CAT-40
Spindle speed- 50 – 8,000 R.P.M.
Min / Max spindle nose to table- 3.5” / 23.50”
ATC Capacity- 16

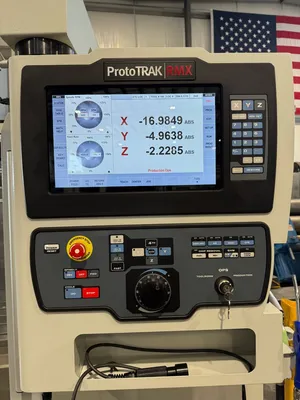

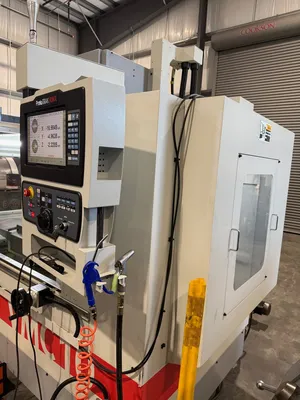

TRAK RMX Touch Screen Control with USB
Control options-
Electronic handwheel options
Coolant tank & Pump
15 H.P. Spindle motor
Machine is wired for 208 volt / 3 phase / 60 H.Z.
Machine dimensions- 135” x 98” x 104” H
Machine dimensions- 10,000 Lbs.
Machine location- F.O.B. Sarasota, F.L.
