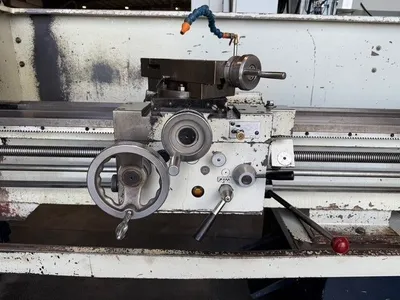

WILLIS 18120 18”/28” x 120”cc Gap Lathe #7505

WILLIS 18120 18”/28” x 120”cc Gap Lathe #7505
Reference #7505
Model # MJ18120
Serial # 0945
Year of manufacture-
Swing over bed- 18”
Swing in gap- 28”
Swing over cross slide- 11-1/2”
Distance between centers- 120”cc
Spindle nose- D1-8
Spindle bore- 3-1/8”
Spindle speeds- (16) 22 – 1,700 R.P.M.
Bed width- 13”
Cross slide travel- 10-1/2”
Compound travel- 5-1/4”
Tailstock quill travel- 7”
Tailstock taper- #5 Morse
Inch threads- (45) 2 – 72 T.P.I.
Metric threads- (39) .04 – 14mm
Longitudinal feeds- .0015 - .04 I.P.R.
Cross feeds- .00075 - .02 I.P.R.
