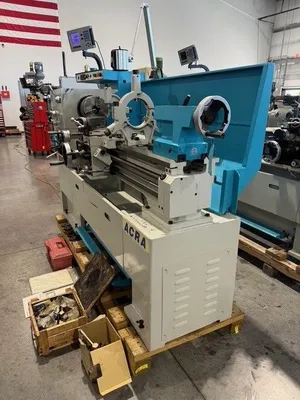

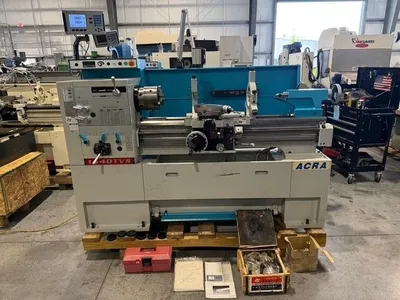

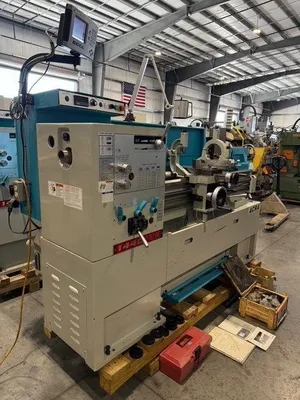

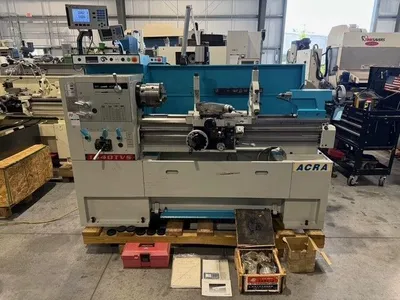

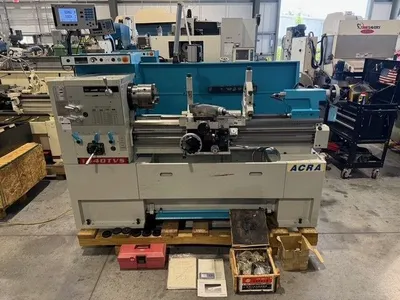

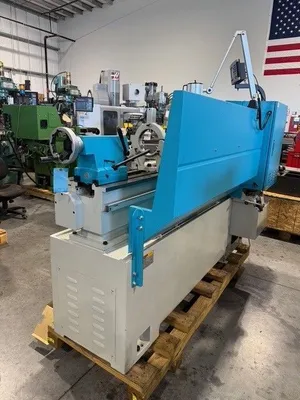

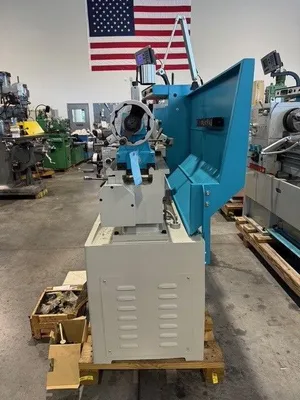

ACRA 1440TVS 14”/21” x 40”cc Variable Speed Lathe DRO 2015’ #7529
ACRA 1440TVS 14”/21” x 40”cc Variable Speed Lathe DRO 2015’ #7529
Reference # 7529
Model # 1440TVS

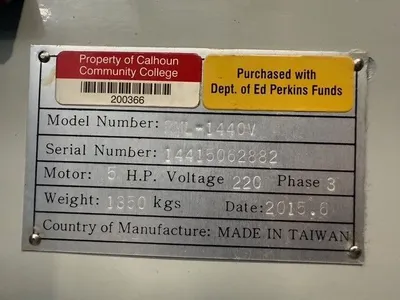

Serial # 14415062882
Year of manufacture- 6/2015’
Swing over bed- 14-3/16”
Swing in Gap- 21”
Swing over cross slide- 8/3/8”
Distance between centers- 40”
Bed width- 10-1/4”
Spindle nose- D1-6
Spindle bore- 2-1/16”
Spindle speeds- 20 – 2,500 R.P.M.

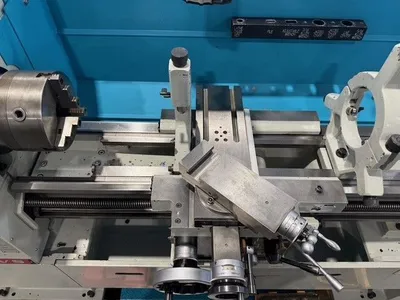

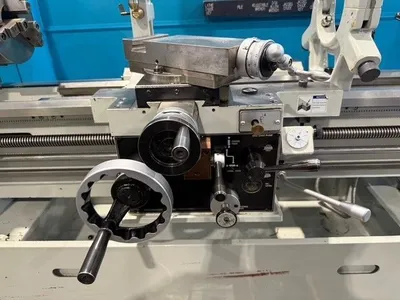

Cross slide travel- 8-11/16”
Compound travel- 5-1/2”
Inch threads- 2 – 72 T.P.I.
Metric threads- 0.2 – 14 mm
Longitudinal feeds- 0.002 – 0.067 I.P.R.
Cross feeds- 0.001 – 0.034 I.P.R.
Tailstock taper- # 4 Morse
Tailstock quill diameter- 2”
Tailstock quill travel- 6”
***Machine acquired out of a School***

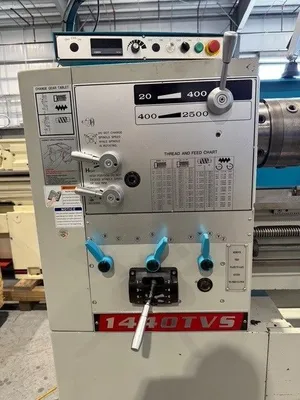

EVS Electronic Variable Speed with speeds display

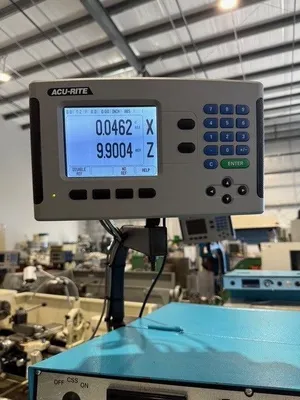

ACURITE DRO 2 Axis Digital Read Out with CSS Option
“CSS” Contant Surface Speed Option

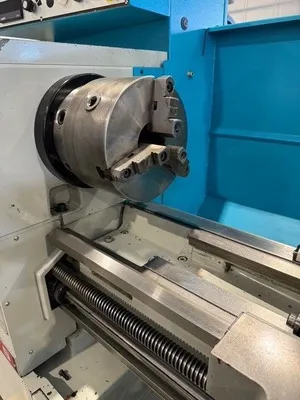

8” 3 Jaw chuck
10” 4 Jaw chuck new in the box

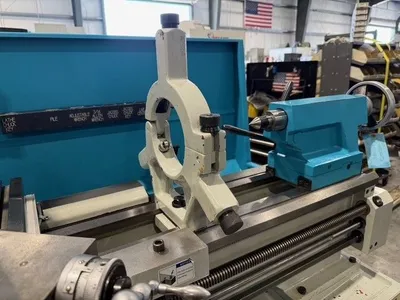

Steady rest
Follow rest
Foot tredal
Work light
Leveling pads
5 H.P. Motor
Machine manuals
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 3750 Lbs.
Machine dimensions- 93” x 36” x 64” H
Machine location- F.O.B. Sarasota, Floirda
