| Swing | 8" | 203.2 mm |
| Centers | 18" | 457.2 mm |
| Power | 3 hp | 2.2 kW |
| Workhead Power | 2 hp | 1.5 kW |
| Workhead Speed | 0.2 RPM | 0.2 RPM |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Dimensions | 63” x 63” x 65” H | 63” x 63” x 65” H |
| Weight | 4450 Lbs. | 4450 Lbs. |

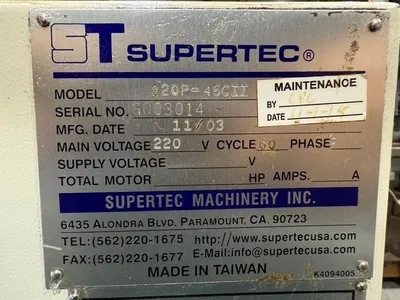

SUPERTEC G20P-45CII 18” x 18” Cylindrical Grinder 2004’ #7542
Reference # 7542
Model # 7542
Serial # G003014
Year of manufacture- 11/2003’
Center height- 3.93”
Distance between centers- 19.68”
Swing diameter- 7.87”
Grinding wheel size- 12” x 1” x 3” Bore
Max workpiece weight- 176 Lbs.
Grinding wheel speed- 2,200 R.P.M.
Tailstock taper- #3 Morse
Table swivel- +/- 7°
PLC Display
3” 3 jaw chuck
Dead center
Extra wheel & belts
Leveling pads
Coolant tank & pump
Built in hydraulic reservoir
Machne is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 4450 Lbs.
Machine dimensions- 63” x 63” x 65” H
Machine location- F.O.B. Sarasota, Floirda
