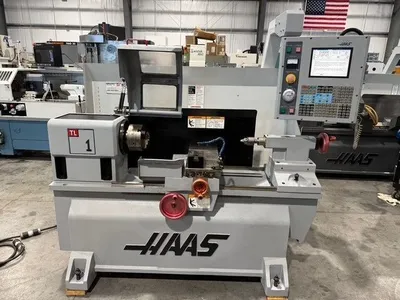

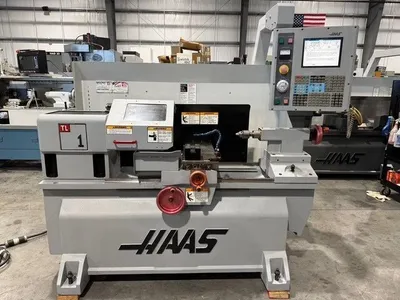

HAAS TL-1 CNC Toolroom Teach Style lathe 2004’ #7543
HAAS TL-1 CNC Toolroom Teach Style lathe 2004’ #7543
Stock #7543
Model # TL-1

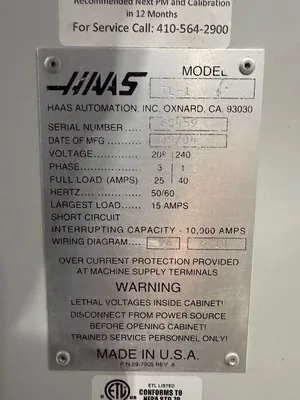

Serial # 68459
Year of manufacture- 9/2004’
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 30”
Distance between centers- 30”
X axis travel- 8”
Z axis travel- 30”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-5
Max spindle speed- 1800 R.P.M.
Spindle bore- 2.30”

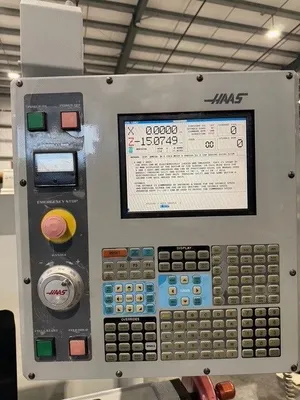

HAAS CNC control
Control options- DNC, MACROS, Quick code, Brushless Barfeeder interface, Intuitive Programming System

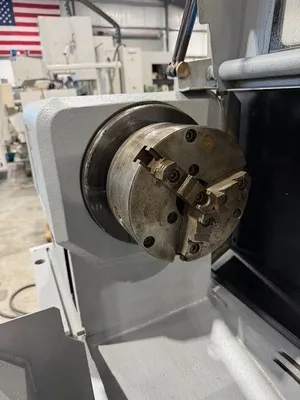

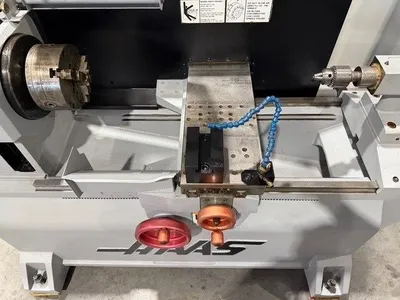

8” BISON 3 jaw chuck

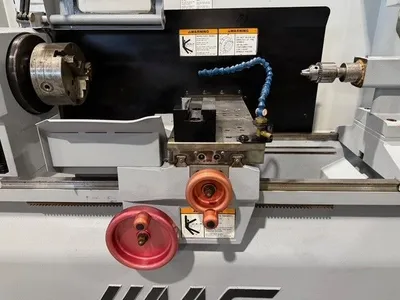

Jacobs drill chuck

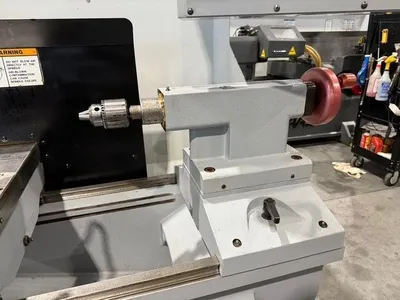

Tailstock
Main spindle motor 10 H.P.

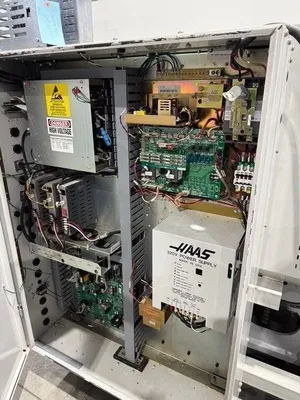

Machine is currently wired for 208 3 phase or can be wired for 240 volt single phase
Machine weight- 5000 Lbs.
Machine dimensions- 92” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
