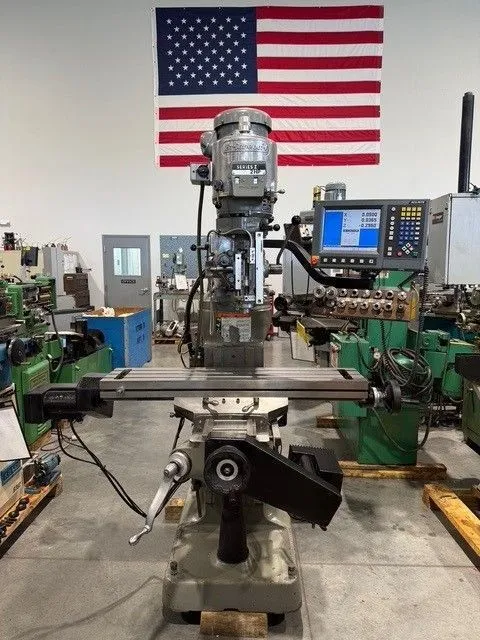

BRIDGEPORT 2 Axis CNC ACU-RITE MILLPWR Vertical Milling Machine #7545

BRIDGEPORT 2 Axis CNC ACU-RITE MILLPWR Vertical Milling Machine #7545
Reference # 7545
Model # Series 1
Serial # 248313
Year of manufacture- 1987’
Table working surface- 9” x 42”
Number of t-slots- (3)
Range:
Longitudinal- 26”
Cross- 12”
Vertical, knee- 16”
Quill- 5”
Maximum/Minimum distance, spindle nose to table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges-60-4,200 R.P.M
Spindle taper- R-8
