| Rect-Cap (H) | 9" | 228.6 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 10.75" | 273.05 mm |
| Power | 2 hp | 1.5 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 158" | 4,013.2 mm |
| Dimensions | 87” L x 45” W x 52’’ H | 87” L x 45” W x 52’’ H |
| Weight | 950 Lbs. | 950 Lbs. |

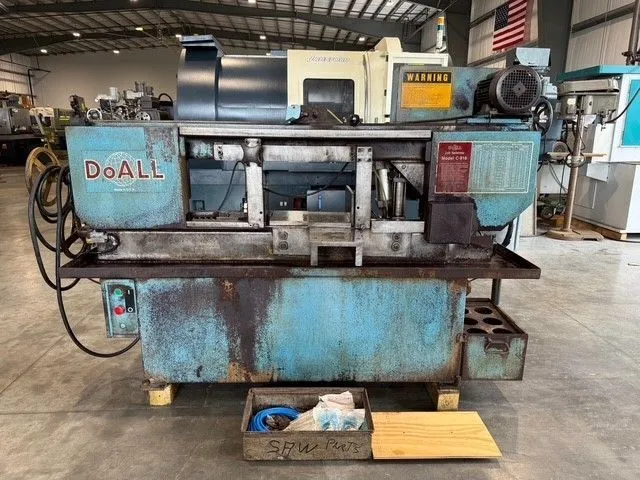

DoAll C-916M 9” x 16” Horizontal Band Saw USA #7546
Reference # 7546
Model # C-916M
Serial # 470-911141
Year of manufacture- 1991’
Capacity at 90 degrees: rectangles- 9” x 16”
Rounds- 10-3/4”
Band width- 1”
Band length- 158”
Band wheel diameter (cast iron)- 14”
Infinitely variable blade speeds- 105 – 275 F.P.M.
Spring counter-balanced head with infinitely-variable hydraulic feed control
Swivel vise jaws for miter cutting
Power band brush
Recirculating coolant system
Extra guides
2 H.P. 3/60/230-460 Volt BALDOR main drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 950 Lbs.
Machine dimensions- 87” L x 45” W x 52’’ H
Machine location- F.O.B. Sarasota, Florida
This equipment has been sold. Similar equipment available now is shown below.
