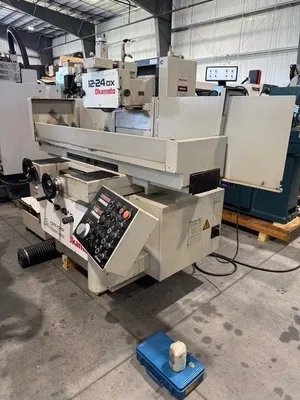

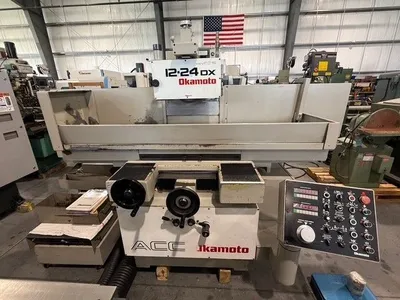

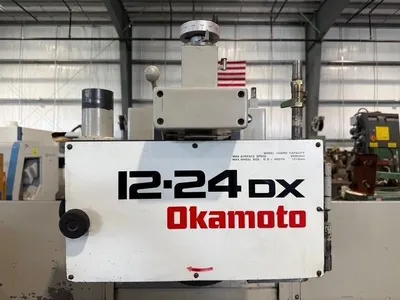

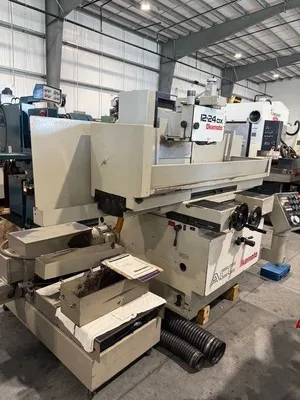

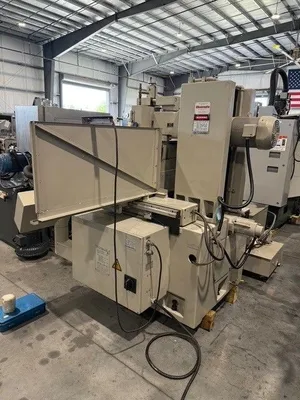

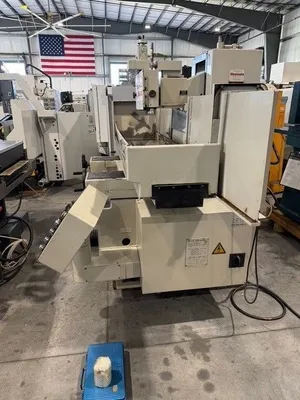

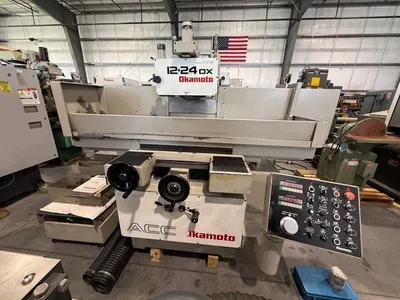

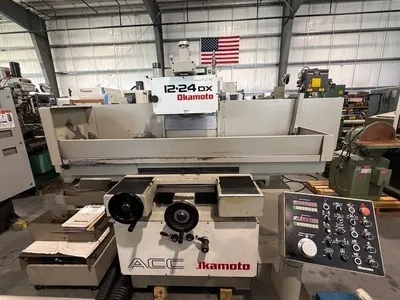

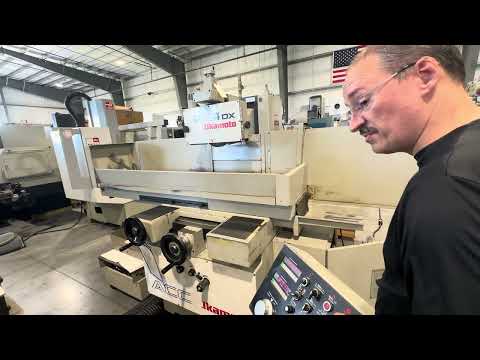

OKAMOTO #ACC-1224 DX 12” x 24” Hydraulic Surface Grinder # 7562
Have one to sell?
$22,500.00 USD
ConditionUsed
1 available
OKAMOTO #ACC-1224 DX 12” x 24” Hydraulic Surface Grinder # 7562
OKAMOTO #ACC-1224 DX 12” x 24” Hydraulic Surface Grinder # 7562
Reference # 7562

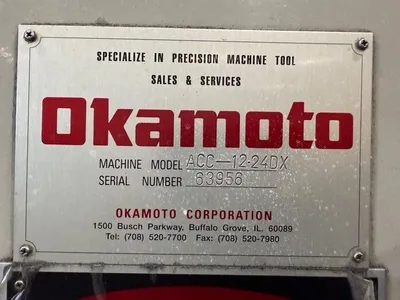

Model # ACC-12.24DX
Serial # 63956
Table working capacity- 12" x 24"
Maximum grinding width- 12"
Maximum grinding length- 24"
Maximum distance from underside of 13.6”
Maximum weight of workpiece on table- 1,540 Lbs.
Hydraulic longitudinal feed- 1 to 82 F.P.M.
Hydraulic intermittent cross feed- .02 to 0.8 I.P.M..
Automatic downfeed traverse and plunge cut- .00005" - .0015"

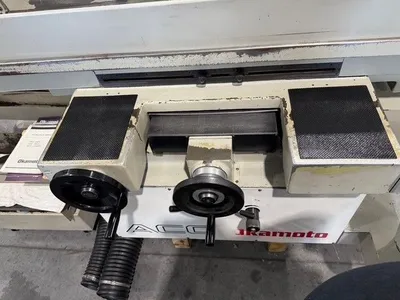

Graduation of crossfeed handwheel- .001"
Graduation of vertical handwheel- .001"

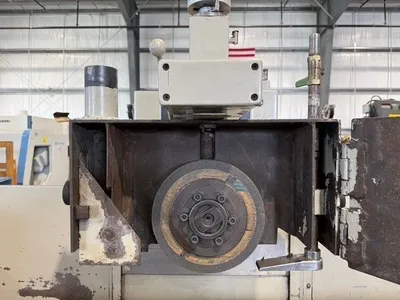

Grinding wheel size- 12" diameter x 5" bore x 1.5" width
Grinding wheel speed- 3,600 R.P.M.
Hydraulically actuated longitudinal and cross feeds
Double vee way table construction
Servo driven automatic incremental down feed of grinding wheelhead in programmable
coarse and fine increments from 0.00005" to 0.0015" in both the plunge and surface
grinding modes of operation
Automatic cycle with sparkout timer from 0 to 5 passes

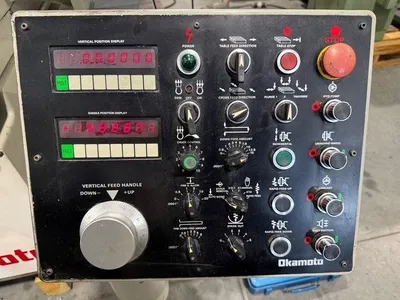

Electronic handwheel for manual vertical movement with each graduation equivalent to
.00001", .0001" or .001"
Digital display of vertical axis position
Motorized power rapid traverse to grinding wheelhead

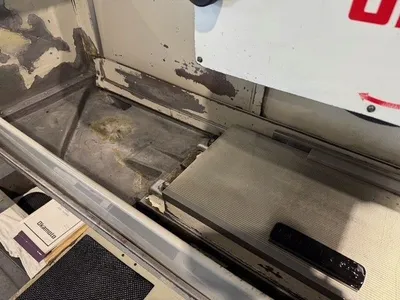

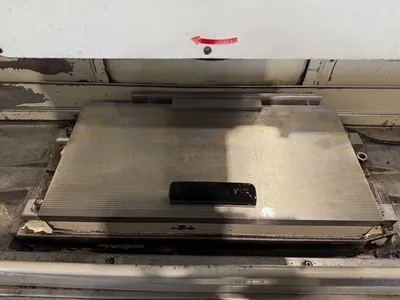

12” x 24” electromagnetic chuck with variable hold control
(5) Leveling pads

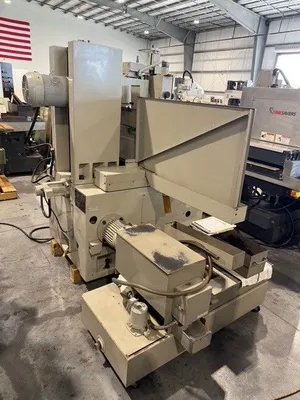

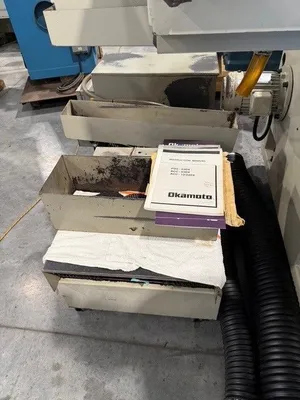

½ H.P. External coolant pump and tank
1/2 H.P. AC Servo feed motor
3 H.P. 3/60/230/460 volt hydraulic pump motor
5 H.P. 3/60/230/460 volt spindle drive motor and electrical controls
Machine is wired for 230 Volt operation
Machine weight- 5,500 Lbs.
Machine dimensions- 108" L-R x 75" F-B x 73" H
Machine location- F.O. B. Sarasota, Florida
