| Max Keyway Capacity | 1.25" | 31.75 mm |
| Max Length of Cut | 9" | 228.6 mm |
| Dimensions | 32’’ L x 42’’ W x 51’’ H | 32’’ L x 42’’ W x 51’’ H |
| Weight | 1200 Lbs. | 1200 Lbs. |

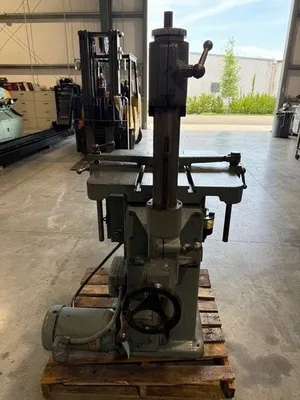

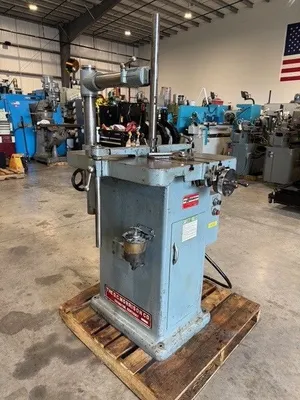

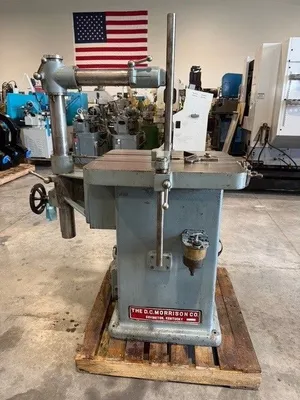

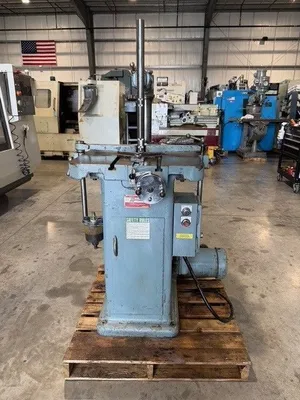

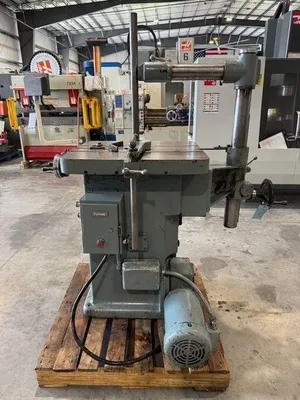

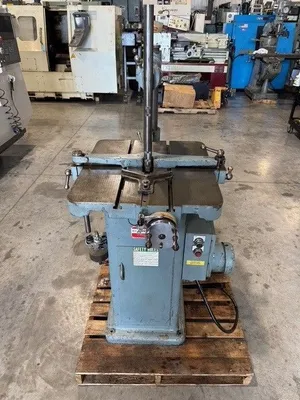

D.C. MORRISON # K 1-1/4” Keyseater keyway Broach 1987’ #7564
Reference # 7564
Model # K

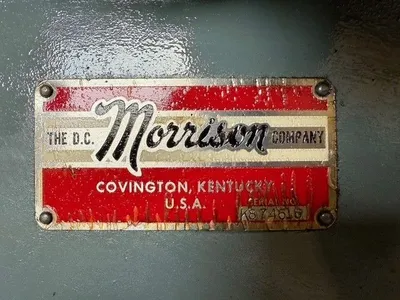

Serial # K874516
Year of manufacture- 1987’
Cuts keyways- 1/16" to 1-1/4" wide
Maximum length of cut- 9”
Length of stroke- 3", 4-1/2", 6", 7-1/2", 9"
Strokes per minute- 34
(3) Feeds- .002", .004", .006"
Largest diameter cutter bar- 1-1/4”
Distance from 1" cutter to column- 16-1/4”
Maximum distance under standard clamps- 14”
Distance between clamps- 25-1/2”

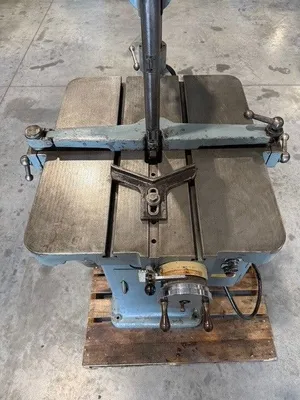

Table size- 24” x 27”

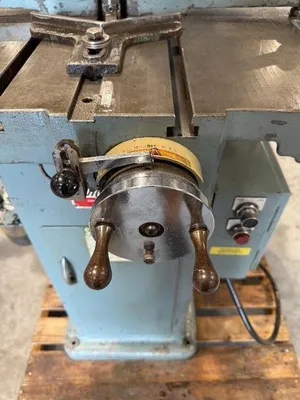

Automatic table feed and stop
Centering vee
Swinging clamp bar
BIJUR one-shot lubrication system

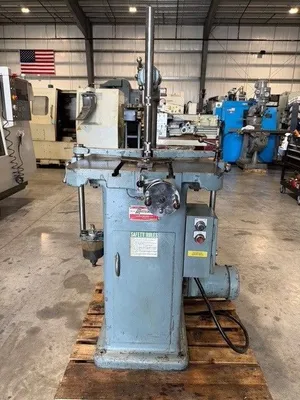

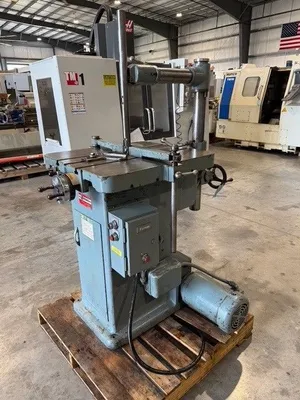

2 H.P. 3/60/230-460 volt drive motor with start, stop and jog 110 volt pushbutton station
Machine is wired for 230 volt operation.
Machine weight- 1200 Lbs.
Machine location- F.O.B. Sarasota, Florida
Machine dimensions- 32’’ L x 42’’ W x 51’’ H
