| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |

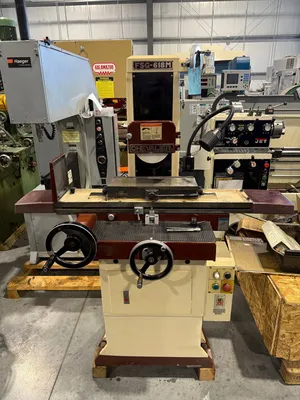

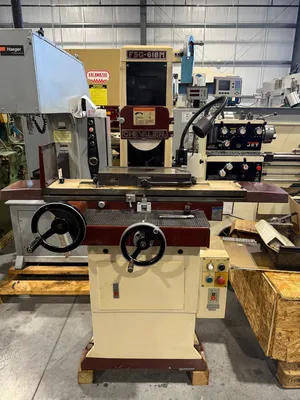

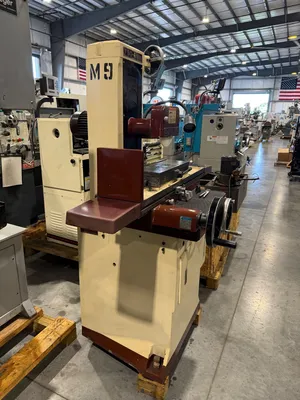

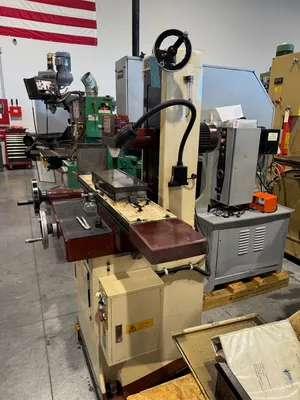

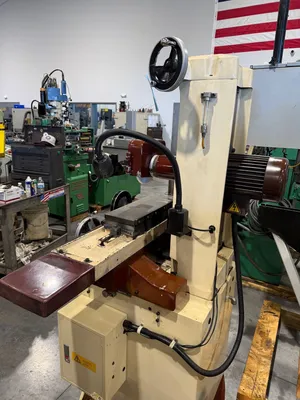

CHEVALIER #FSG-618M 6” x 18” Hand Feed Surface Grinder #7567
Reference #7567
Model # FSG-618M

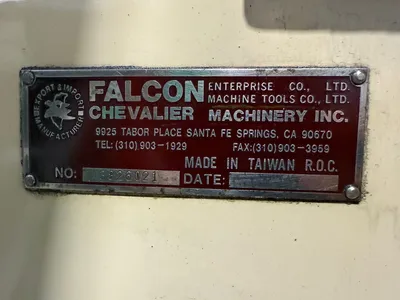

Serial # A3826021
Maximum grinding length- 18”
Maximum grinding width- 6”
Maximum table travel
longitudinal- 19”
cross- 7”
Maximum distance from table working surface to spindle center- 18”
Handwheel graduations
Cross- .0005"
Downfeed- .0001"
Spindle speed- 3,450 R.P.M.
Wheel size- 8" diameter x 1/2" width x 1-1/4" bore

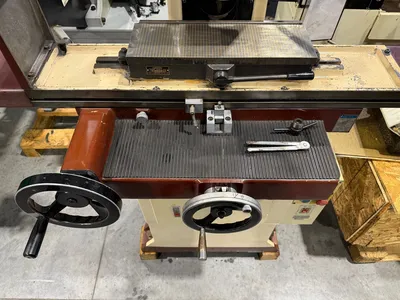

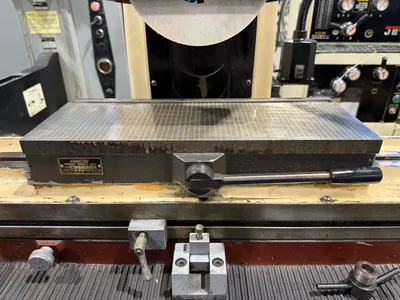

6” x 18” Magnetic chuck
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V guideways laminated with Turcite-B for saddle travel

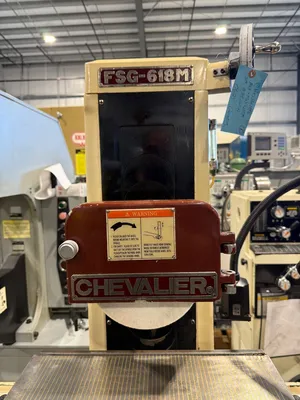

Wheel guard
One shot lubrication

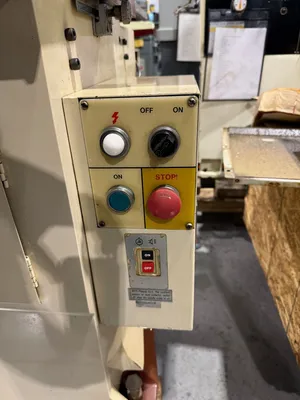

2 H.P. 3/230/ 60 HZ volt spindle motor and electrical controls
Machine is wired for 230 volt
Machine weight- 1,500 Lbs.
Machine dimensions- 54" L-R x 40" F-B x 68" H
Machine location- F.O.B. Sarasota, Florida
