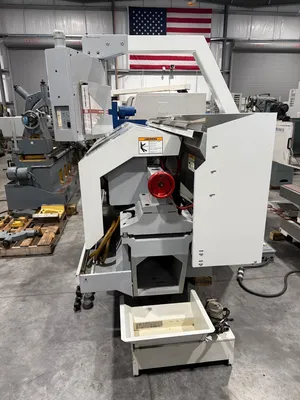

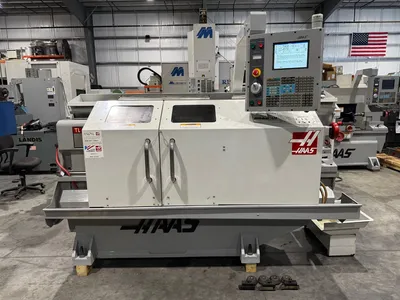

HAAS TL-2 CNC Toolroom Teach Style Lathe 2006’ USA #7570
Reference # 7570
Model # TL-2
Serial # 73728
Year of manufacture- 6/2006’
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 48”
Distance between centers- 48”
X axis travel- 8”
Z axis travel- 48”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.00”

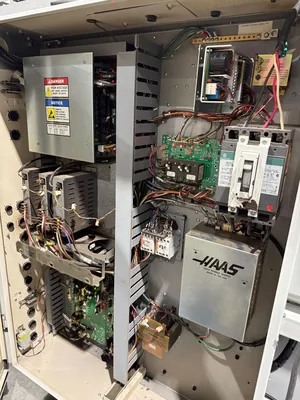

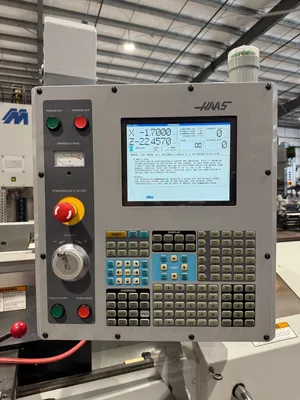

HAAS CNC control

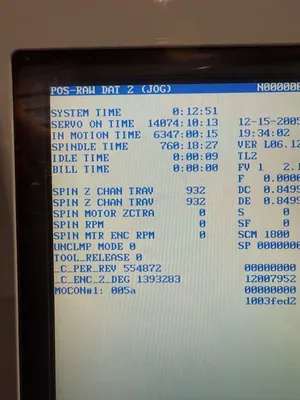

Machine hours- Servo time-14,074, Motion time-6,347, Spindle time 760
Control options- DNC, Quick code, Brushless bar feeder interface, intuitive programming system

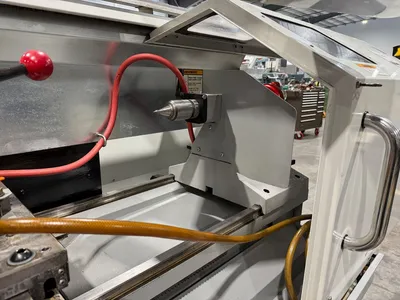

Tailstock

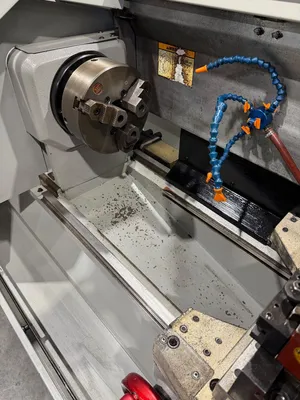

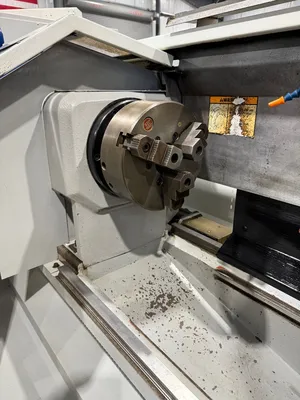

BTC 10” “Set-Tru” 3 Jaw Chuck
Live center

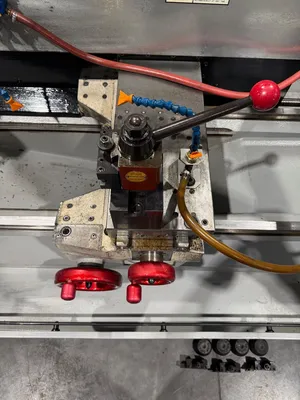

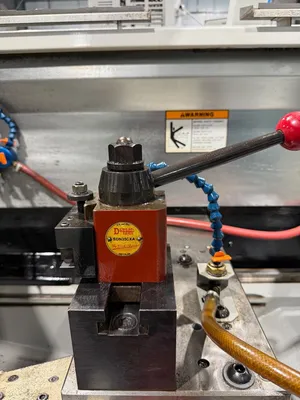

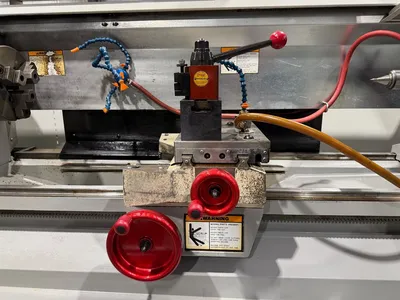

Dorain tool post & (4) holders
Coolant tank & pump

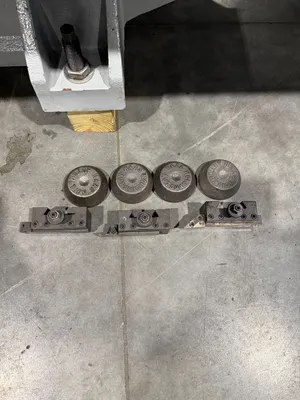

(4) Leveling pads
Splatter shield
Main spindle motor 10 H.P.

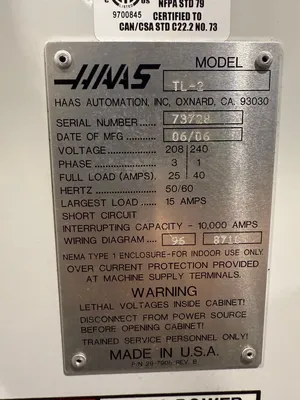

Machine can run on 208 volt 3 phase / 240 single phase
Machine is currently wired for 208 volt / 3 phase / 60 H.Z.
Machine weight- 5000 Lbs.
Machine dimensions- 109” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
