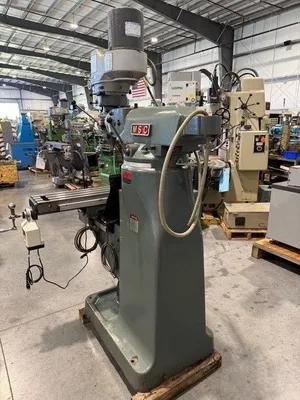

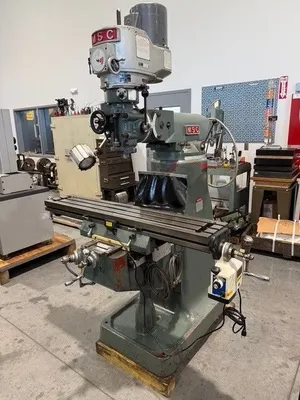

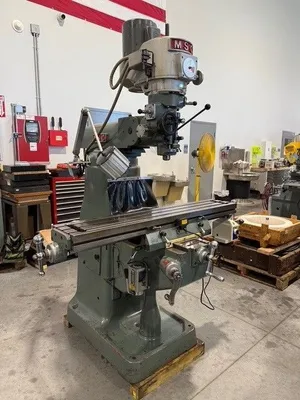

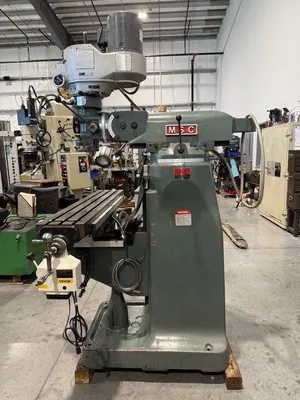

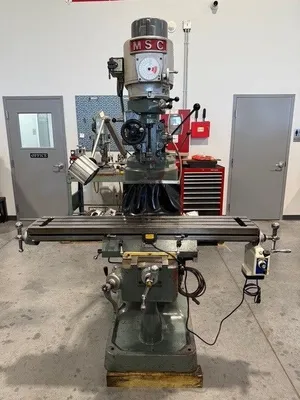

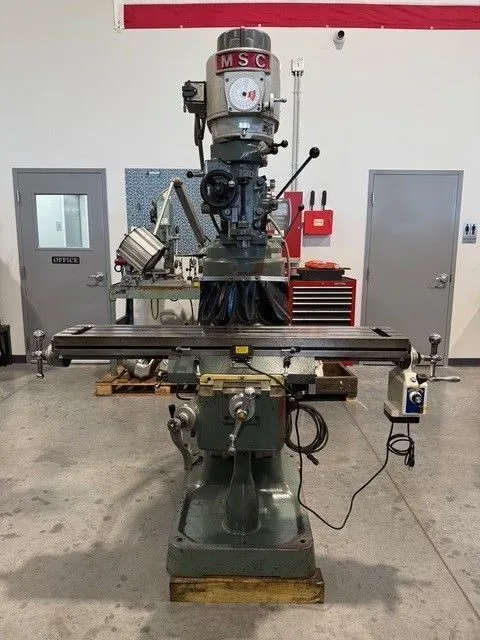

MSC Vertical Milling Machine 2 H.P. Power feed #7575
MSC Vertical Milling Machine 2 H.P. Power feed #7575
Reference # 7575

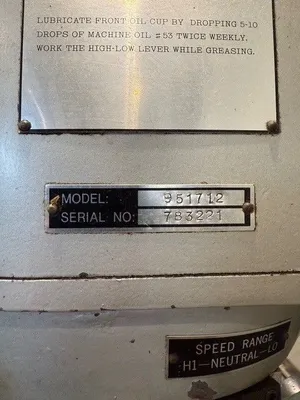

Model # 951712
Serial # 783221
Year of manufacture- 1989’

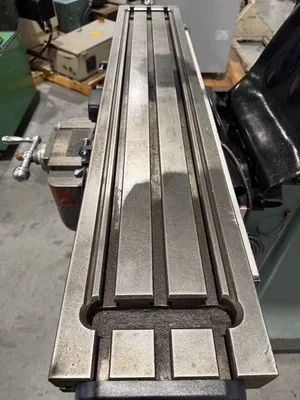

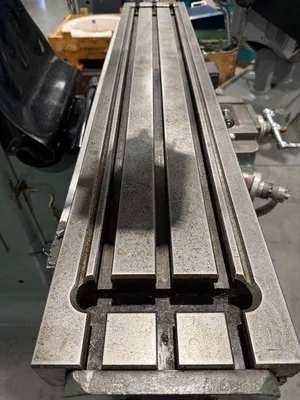

Table working surface- 9“ x 49”
Number of t-slots- 3
Ranges-
Longitudinal- 32-1/2”
Cross- 12”

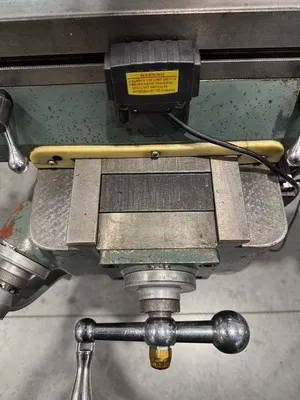

Vertical, knee- 16”
Quill-5”
Maximum/Minimum distance, spindle nose to top of table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
Turret rotation- 360 degrees
(3) Power quill feeds- - .0015, .003, .006 I.P.R.

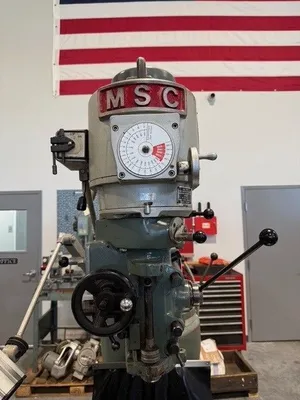

Infinitely variable spindle speeds, two ranges- 60-4,200 R.P.M
Spindle taper- R-8
Maximum collet capacity- ¾”
One-shot lubrication system
Work light
Power feed on X axis
2 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2000 Lbs.
Machine dimensions- 64” L x 57” w x 83’’ H
Machine location- F.O.B. Sarasota Florida
