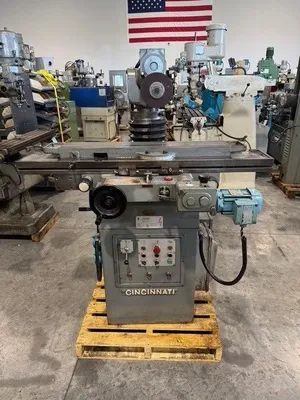

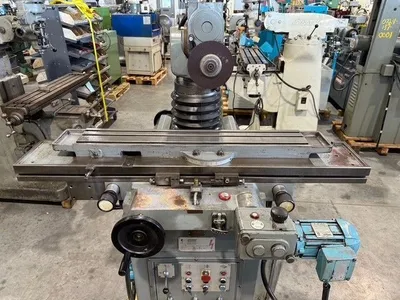

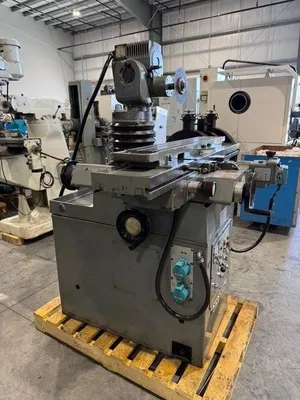

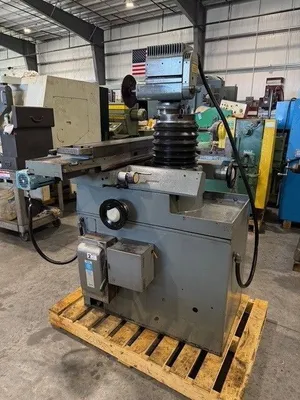

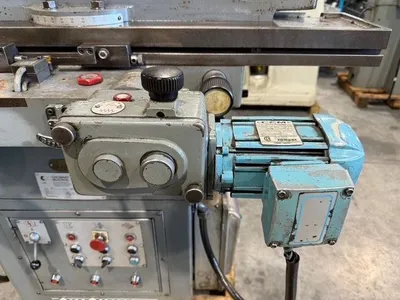

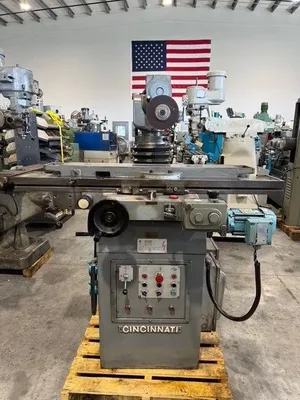

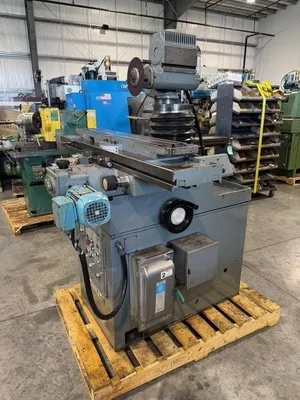

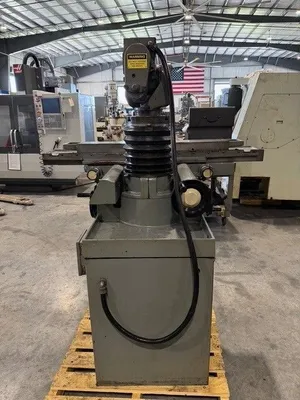

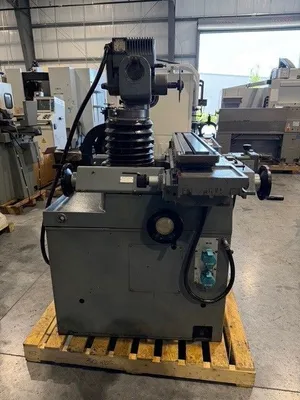

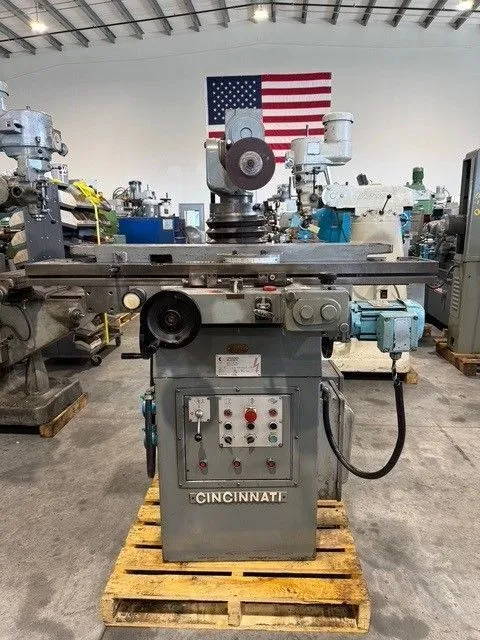

CINCINNATI MILACRON #2MT Tool & Cutter Grinder Power Table #7581

CINCINNATI MILACRON #2MT Tool & Cutter Grinder Power Table #7581
Reference # 7581
Model # 2MT

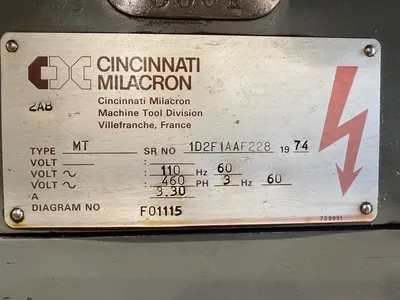

Serial # 1D2F1AAF228
Year of manufacture- 1974’
Swing over table diameter- 10”

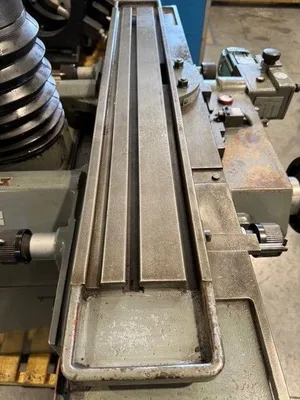

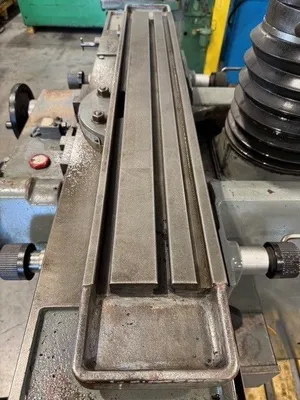

Table size- 6” x 44”
Longitudinal table travel- 24”
Cross movement of table- 10”

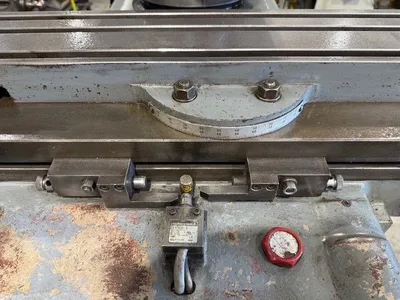

Table swivel- 180°
Table taper per foot on diameter (forward & away)- 5”
Fine adjust taper per foot on diameter- 2”
Table graduations in centers- 90°

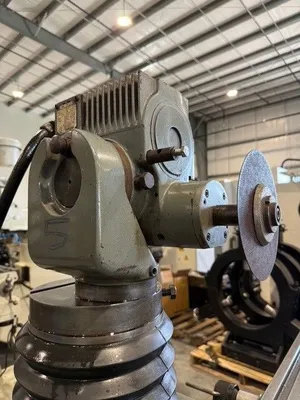

Vertical movement of grinding wheel spindle- 10-1/2”
Max distance centerline of spindle to table- 13-1/2”
Spindle tilts above and below center- 15°
Swivel movement of grinding wheel spindle- 360°
6” Wheel, surface speed 6,022 FT./MIN.- 3,837 R.P.M.
3” Wheel, surface speed 5,887 FT./MIN.- 6,442 R.P.M.
