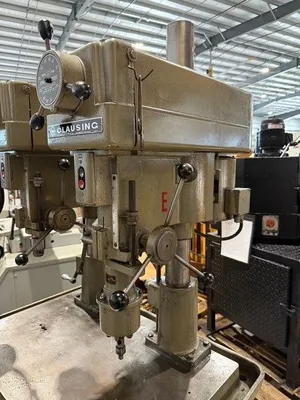

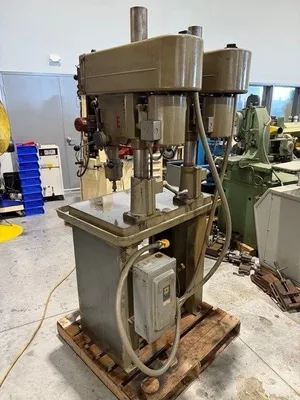

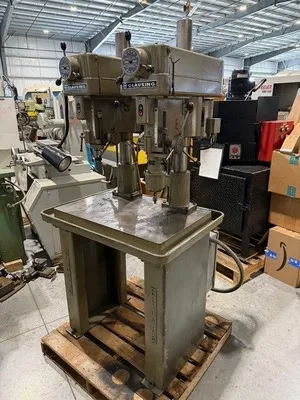

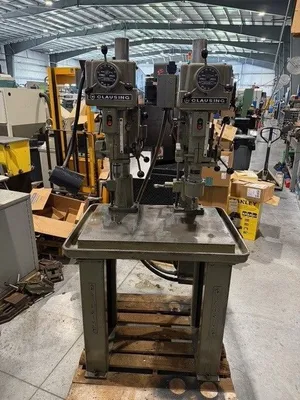

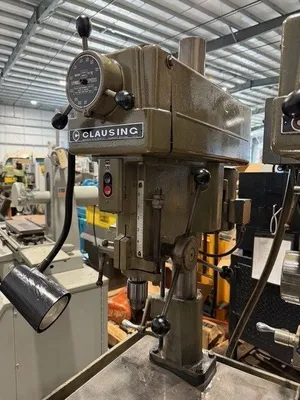

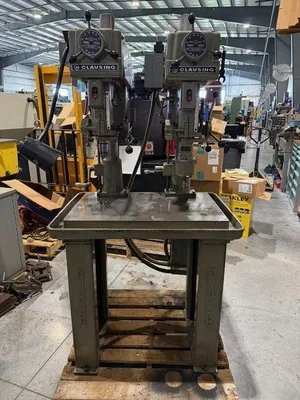

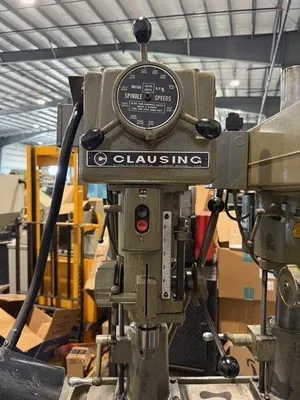

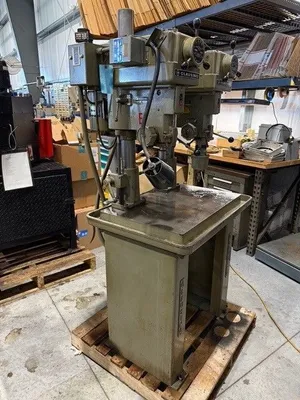

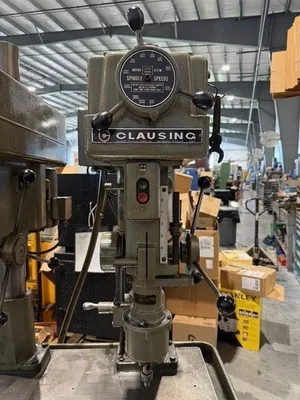

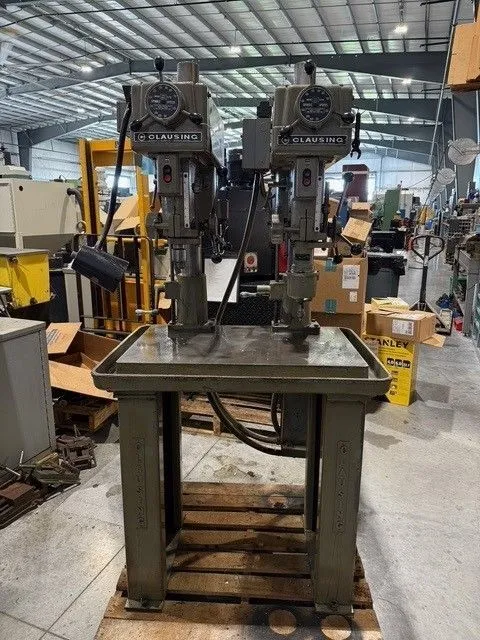

CLAUSING #1666 15” (2) Spindle Drill Press USA #7582
CLAUSING #1666 15” (2) Spindle Drill Press USA #7582
Reference #7582

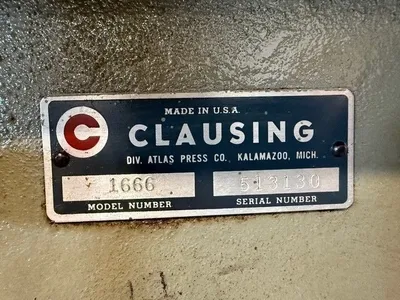

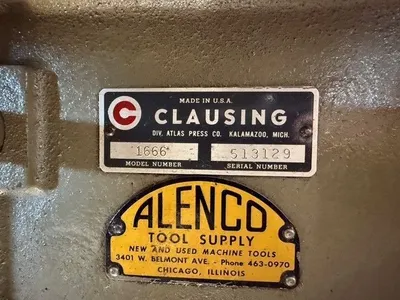

Model #1666
Serial #- 513129, 513130
Overall size of table- 25" x 55"
Table working surface- 30" x 20"
Throat depth- 15”
Drilling capacity, cast iron- 5/8”
mild steel- ½”
Spindle taper- #33 Jarno for 1/2" capacity drill chucks
Spindle travel- 4-3/4”
Distance between spindles- 15”
Spindle speeds- 330 – 4,0000 R.P.M. Variable speed
Maximum distance, spindle to table- 23”

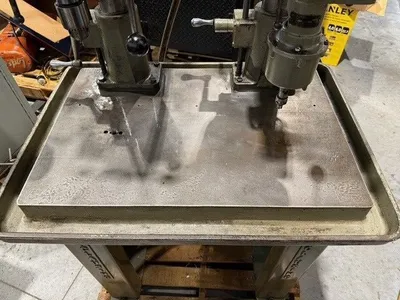

25" x 35" Production table with trough
Head positioning mechanisms
(1) 0-1/2" Capacity JACOBS drill chucks
(1) Procunier tapping head

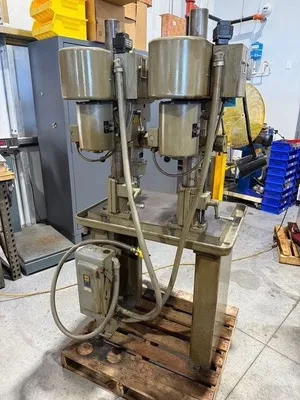

(2) 3/4 H.P. 3/60/220-440 volt drive motors with electrical controls
Machine is wired for 220 volt operation.
Machine location- F.O.B. Sarasota , Florida
Machine weight – 1250Lbs.
Machine dimensions- 35" L-R x 35" F-B x 72" High
