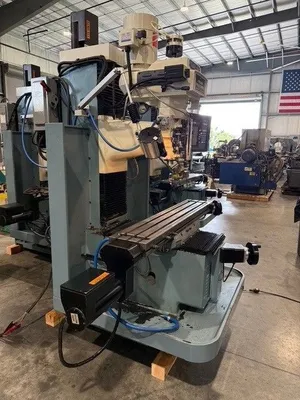

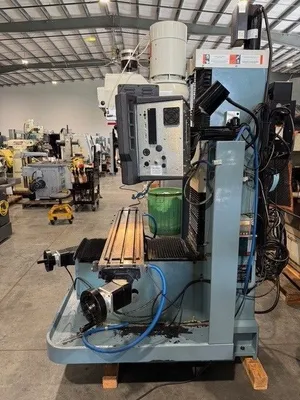

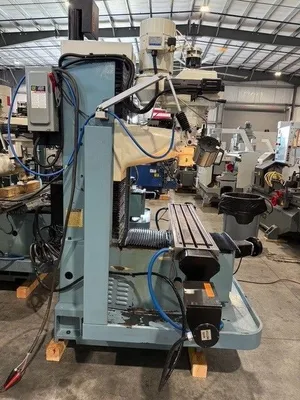

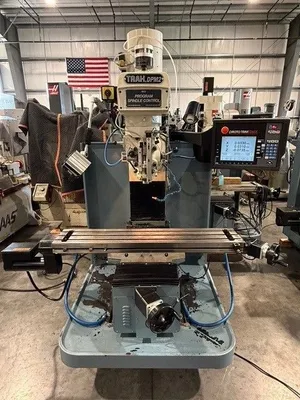

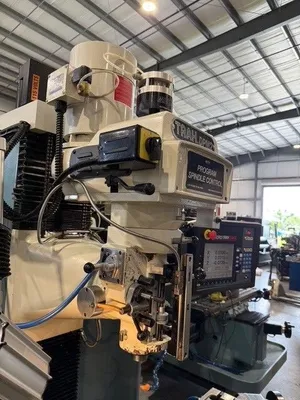

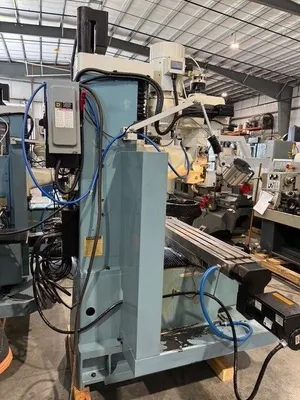

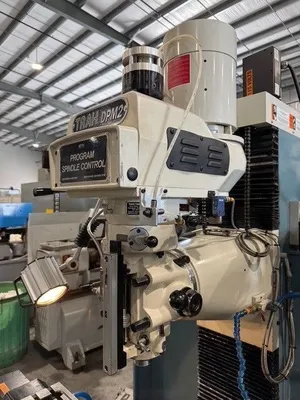

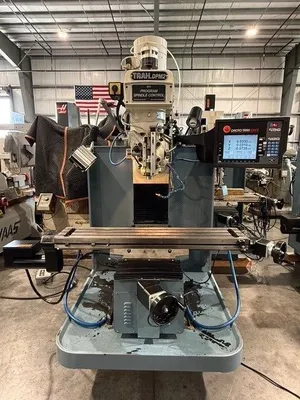

TRAK SWI DPM SX2P CNC Bed Mill 3 Axis 2011’ #7611
TRAK SWI DPM SX2P CNC Bed Mill 3 Axis 2011’ #7611
Reference # 7611
Model # DPM SX2P
Serial # 114DK64032
Year of manufacture- 2011’

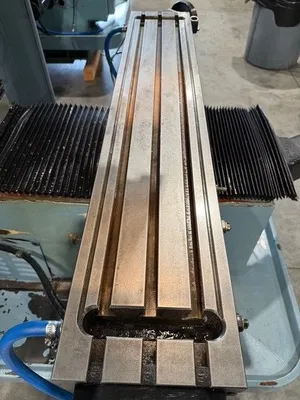

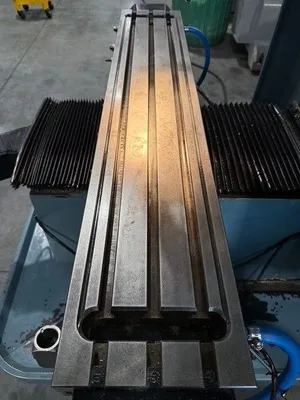

Table size- 9” x 49”
Max table load- 1,320 Lbs.
X axis travel- 31”
Y axis travel- 16”
Z axis travel- 27”
Quill travel- 5”
Spindle taper- R-8
Spindle speeds- 40 – 600 / 300 – 5,000 R.P.M.
Spindle center to column face- 18.5”
Head swivel- +/- 90°
Quill feeds- (3) 0.0015, 0.003, 0.006
Max spindle nose to table- 25.5”
X rapids- 150 I.P.M.
Y rapids- 150 I.P.M.
Z axis- 150 I.P.M.

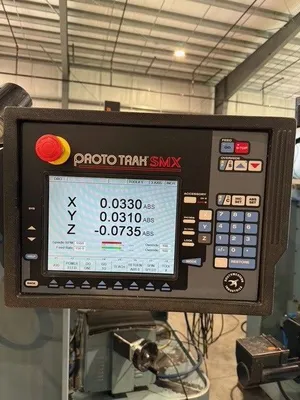

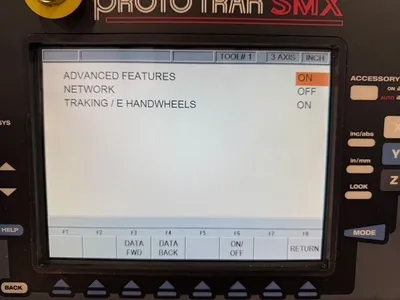

TRAK SMX CNC Control with USB
Advanced Features option
Traking / Electronics hand wheels option
Network option
Pneumatic drawbar
Work light
Remote Stop / Go Switch
Chip tray & Splash shield

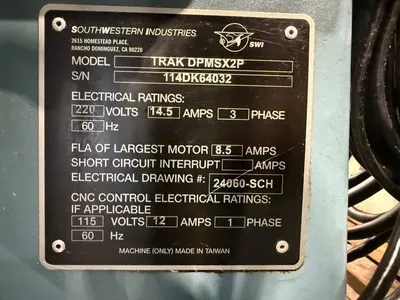

Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 3500 Lbs.
Machine dimensions- 74” x 72” x 88” H
Machine location- F.O.B. Sarasota, Florida
