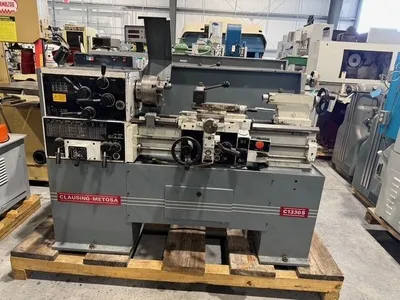

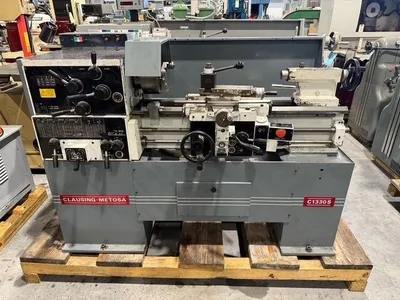

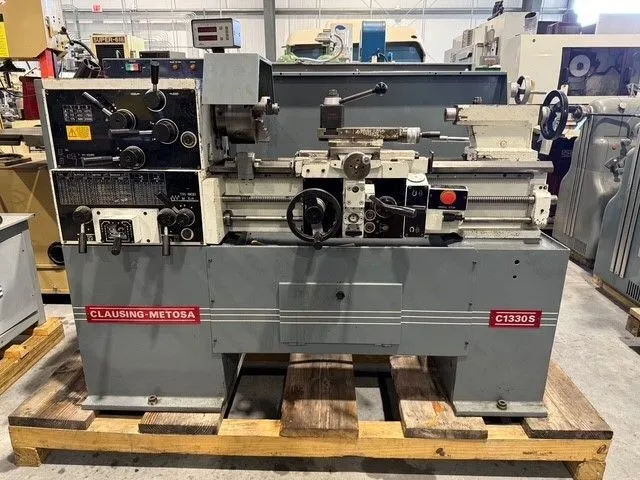

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612

CLAUSING METOSA #C1330S 13” x 30”cc Engine Lathe # 7612
Reference # 7612
Model # C1330S

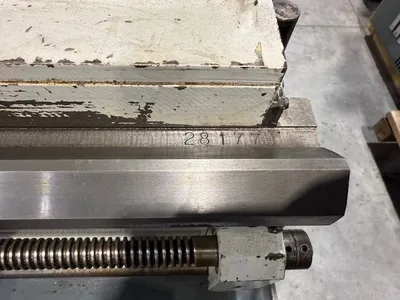

Serial # 28177
Swing over bed- 13-3/16”
Swing over carriage- 12-3/16”
Swing over cross slide- 6-7/8”
Bed width- 10”
Spindle bore- 1-5/8”
Spindle taper- D1-5 Camlock
Spindle Morse taper - #4 Morse
Longitudinal feeds- (44) .0018” - .026”
Cross feeds- (44) .0005” - .0076”
Metric threads- .5mm – 7.5mm
Whitmore threads- 60 – 4 T.P.I.
Modular threads- .25 -3.75
Diametral threads- 120 – 8
Cross slide travel- 9-5/8”
Tool post slide travel- 4-3/4”

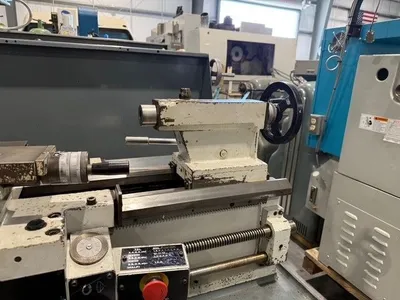

Tailstock quill diameter- 1-7/8”
Tailstock quill travel- 5-1/2”
Tailstock taper- #3 Morse
Spindle speeds- (9) 75 – 2500 R.P.M.
