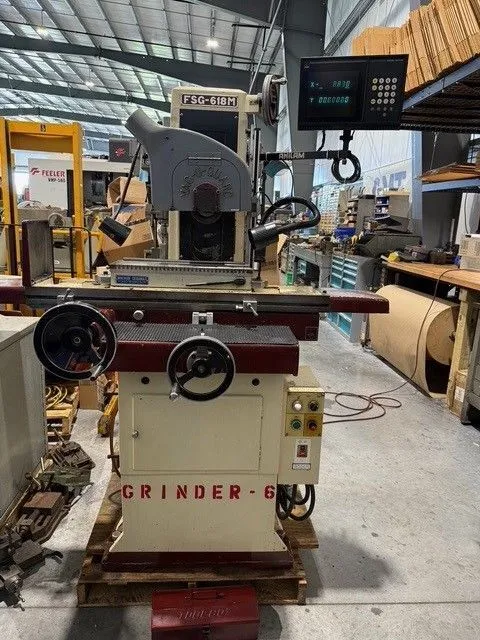

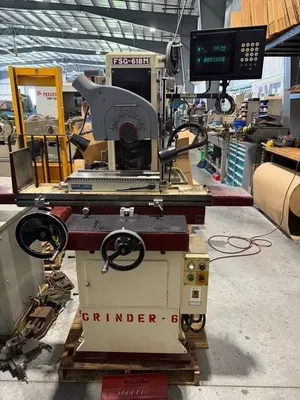

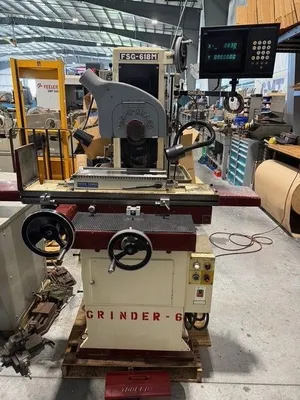

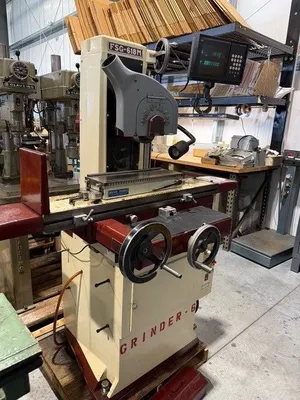

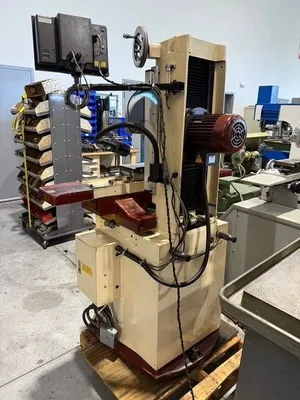

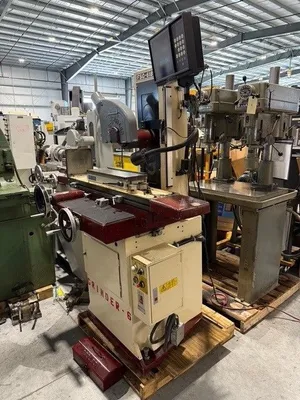

CHEVALIER #FSG-618M 6” x 18” Hand Feed Surface Grinder #7613
Have one to sell?
$3,950.00 USD
ConditionUsed
1 available
CHEVALIER #FSG-618M 6” x 18” Hand Feed Surface Grinder #7613
CHEVALIER #FSG-618M 6” x 18” Hand Feed Surface Grinder #7613
Reference #7613
Model # FSG-618M
Serial # A3814002
Maximum grinding length- 18”
Maximum grinding width- 6”
Maximum table travel
longitudinal- 19”
cross- 7”
Maximum distance from table working surface to spindle center- 18”
Handwheel graduations
Cross- .0005"
Downfeed- .0001"
Spindle speed- 3,450 R.P.M.
Wheel size- 8" diameter x 1/2" width x 1-1/4" bore

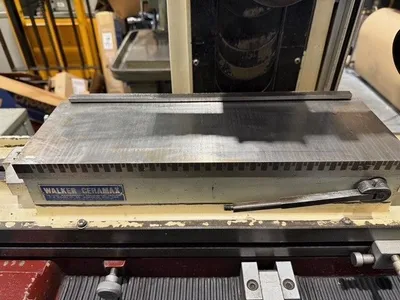

WALKER 6” x 18” Magnetic chuck

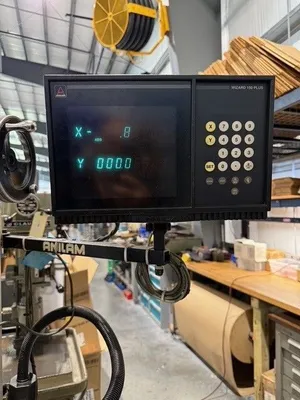

ANILAM DRO single axis
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V guideways laminated with Turcite-B for saddle travel

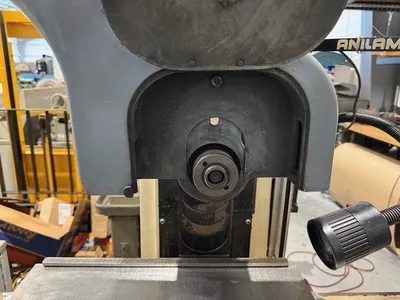

VAC-U-GUARD Wheel guard
One shot lubrication
2 H.P. 3/230/ 60 HZ volt spindle motor and electrical controls
Machine is wired for 230 volt
Machine weight- 1,500 Lbs.
Machine dimensions- 54" L-R x 40" F-B x 68" H
Machine location- F.O.B. Sarasota, Florida
