| X axis | 50" | 1,270 mm |
| Y axis | 20" | 508 mm |
| Z axis | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |
| Dimensions | 124” L x 110” W x 102’’ H | 124” L x 110” W x 102’’ H |
| Weight | 14,500 | 14,500 |

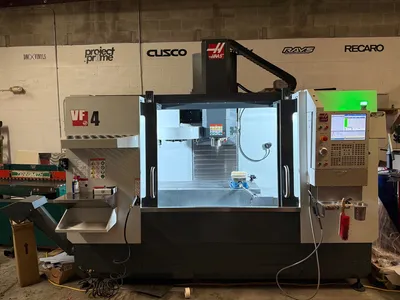

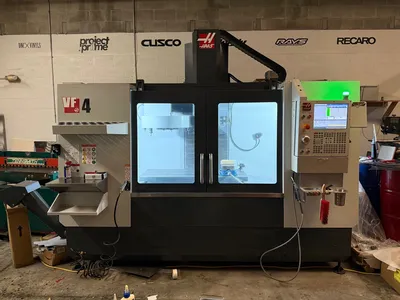

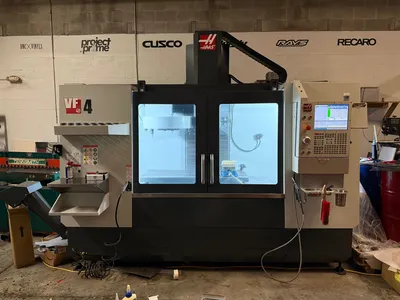

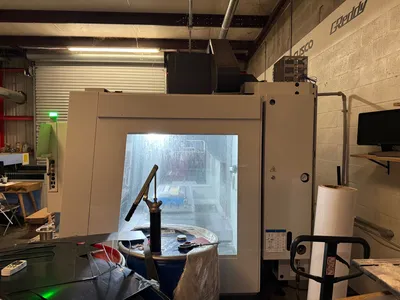

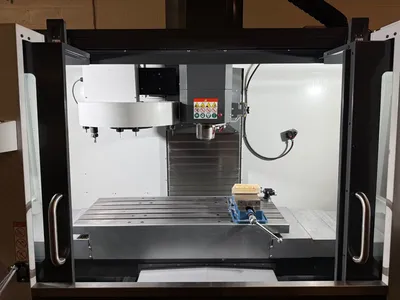

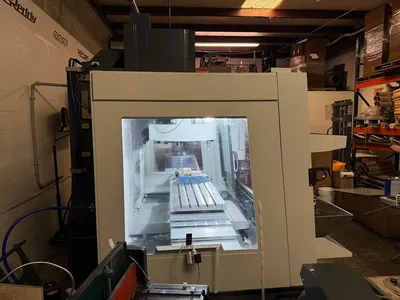

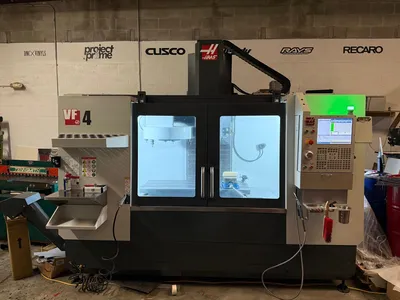

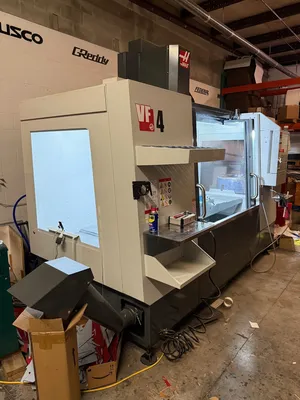

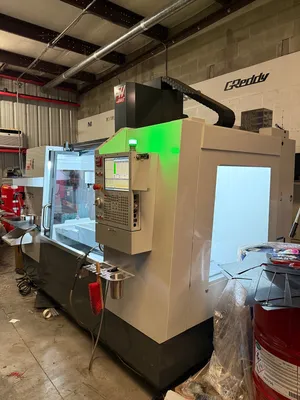

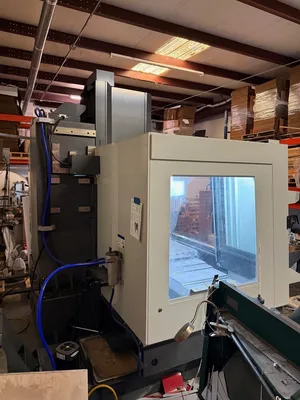

HAAS VF-4 CNC Vertical Machining Center 2024’ USA # 7618
Reference # 7618
Model # VF-4

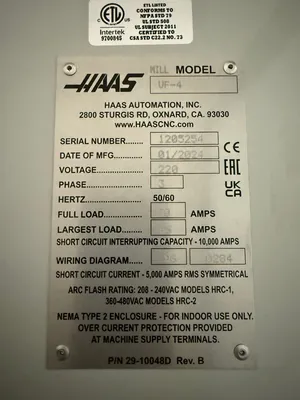

Serial # 1205254
Year of manufacture- 01/2024’

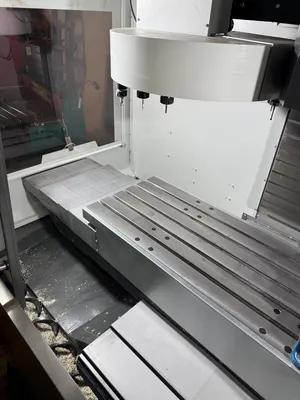

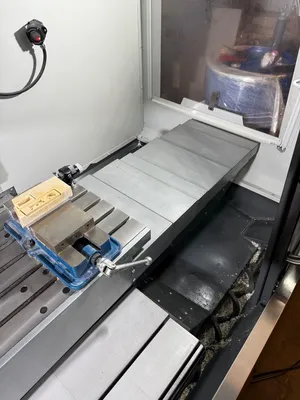

Table size- 18” x 52”
X axis travel- 50”
Y axis travel- 20”
Z axis travel- 25”
Minimum/Maximum distance, spindle nose to table- 4.2”/29.2”

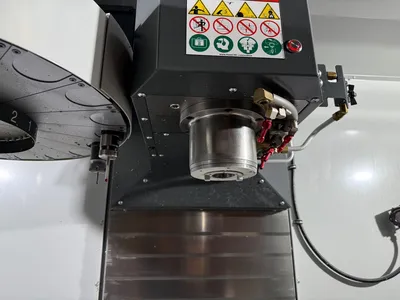

Spindle taper- CAT-40
Spindle speeds, infinitely variable ranges from 0 – 8,100 R.P.M.
Maximum weight on table- 3,500 Lbs.
Rapid traverse rate- 1000 I.P.M.
Maximum cutting federate- 650 I.P.M.

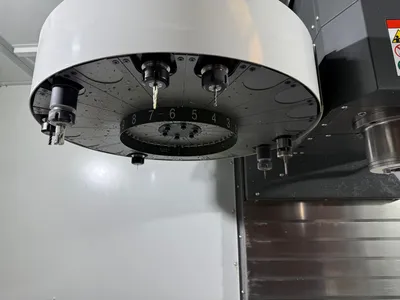

Number of stations in automatic tool changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
***Buyer Responsible to hire Rigger to load*** Machine will be blocked, power disconnected included and can assist with recommendations. Machine is located in Sarasota, Florida

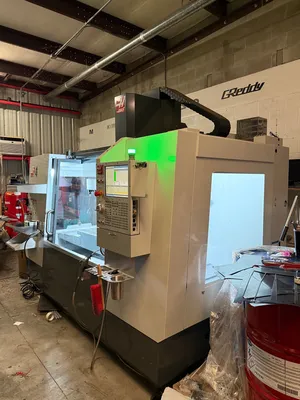

HAAS CNC control, Color Touch screen
All amplifiers are Brushless style

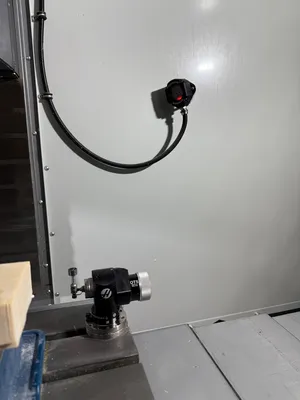

Wireless probing (Includes probe & touch off)
Control options- MACROS, Rigid tapping, Rotation & Scaling, M19 Spindle Orient, VPS Editing, Media display, 1 GB Memory, Wireless Networking, Compensation tables
Machine hours- Power on Time 146, Cycle Start Time 33, Spindle Time 24
Telescopic way covers
Chip auger
Automatic lubrication system

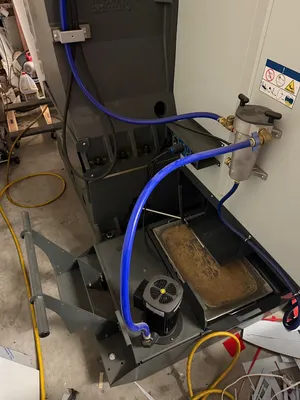

External coolant tank & Coolant pump
30 H.P. Spindle motor
Machine is wired for 220 volt operation.
Machine weight- 14,500 Lbs.
Machine dimensions- 124” L x 110” W x 102’’ H
Machine location- Sarasota, Florida
