| Swing | 23.5" | 596.9 mm |
| Machining Length | 19.3" | 490.22 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.97" | 75.438 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
| Dimensions | 106” L x 72” W x 85’’ H | 106” L x 72” W x 85’’ H |
| Weight | 9500 Lbs. | 9500 Lbs. |

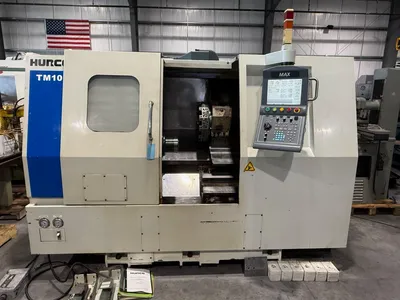

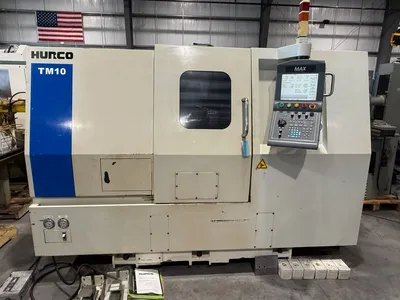

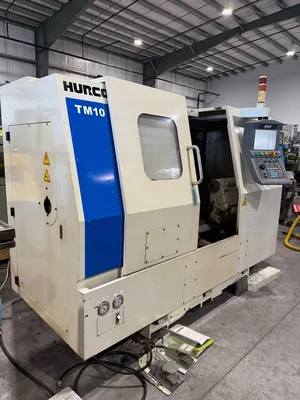

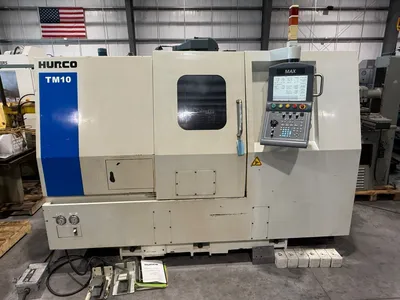

HURCO TM-10 CNC Lathe Turning Center 2008’ # 7627
Reference # 7627
Model # TM-10
Serial # H-T100107
Year of manufacture- 2/28/2008’
Swing over bed- 23.5”
Maximum turning diameter- 10”
Maximum turning length- 20”
X axis travel- 9”
Z axis travel- 22”
Spindle nose- A2-8
Spindle speed- 3,000 R.P.M.
Spindle bore- 2.99”
X axis rapid feed rate- 750 I.P.M.
Z axis rapid feed rate- 945 I.P.M.

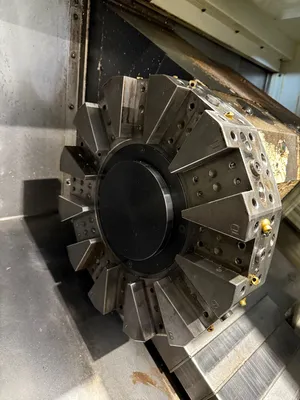

Turret- 12 Station

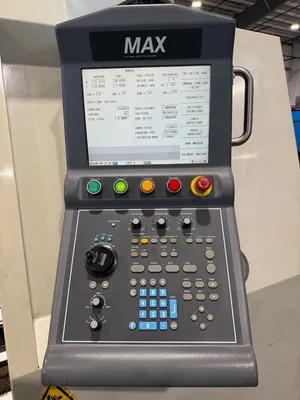

HURCO MAX CNC Control
Control options- Max Classic, NCPP

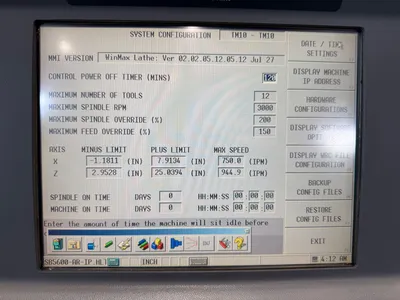

WinMax Lathe Version 02.02.05

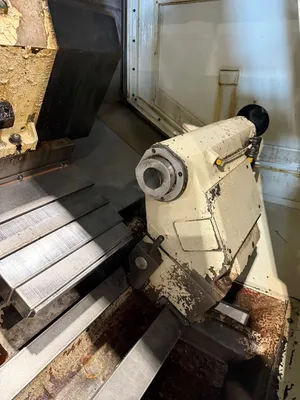

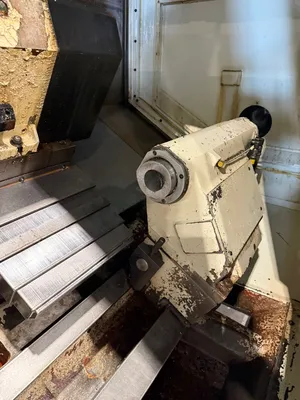

Tailstock
ROYAL Collet Chuck
Coolant tank & pump
Foot pedals
Leveling pads
Spindle motor 25 H.P.

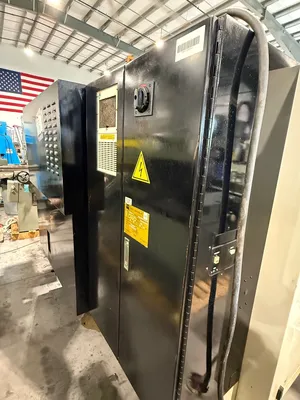

Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 9,500 Lbs.
Machine dimensions- 106” L x 72” W x 85’’ H
Machine location- F.O.B. Sarasota, Florida
