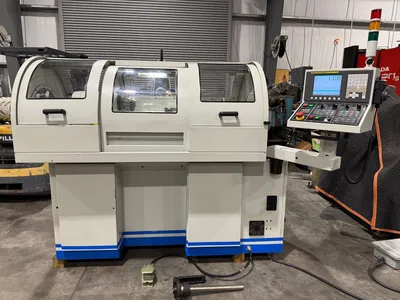

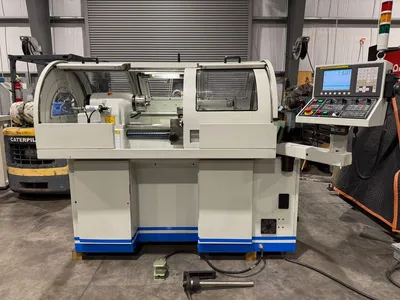

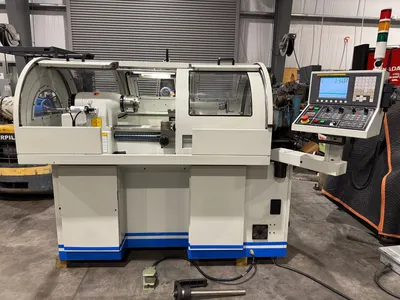

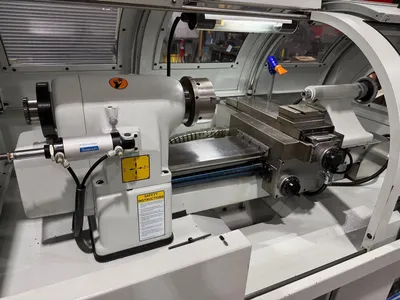

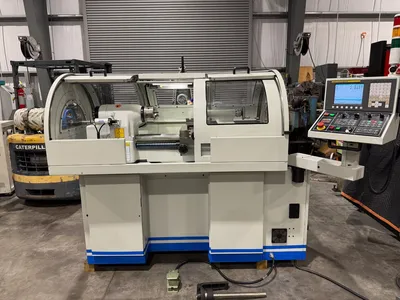

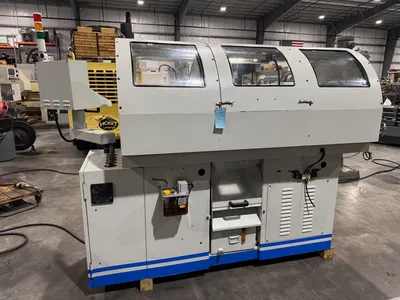

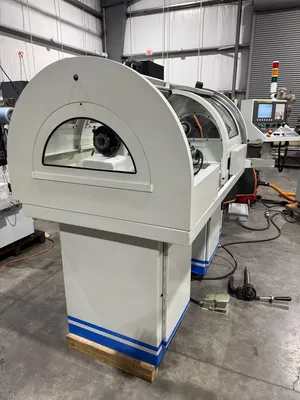

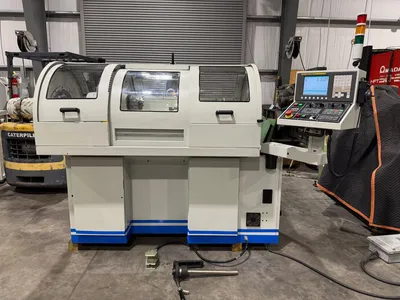

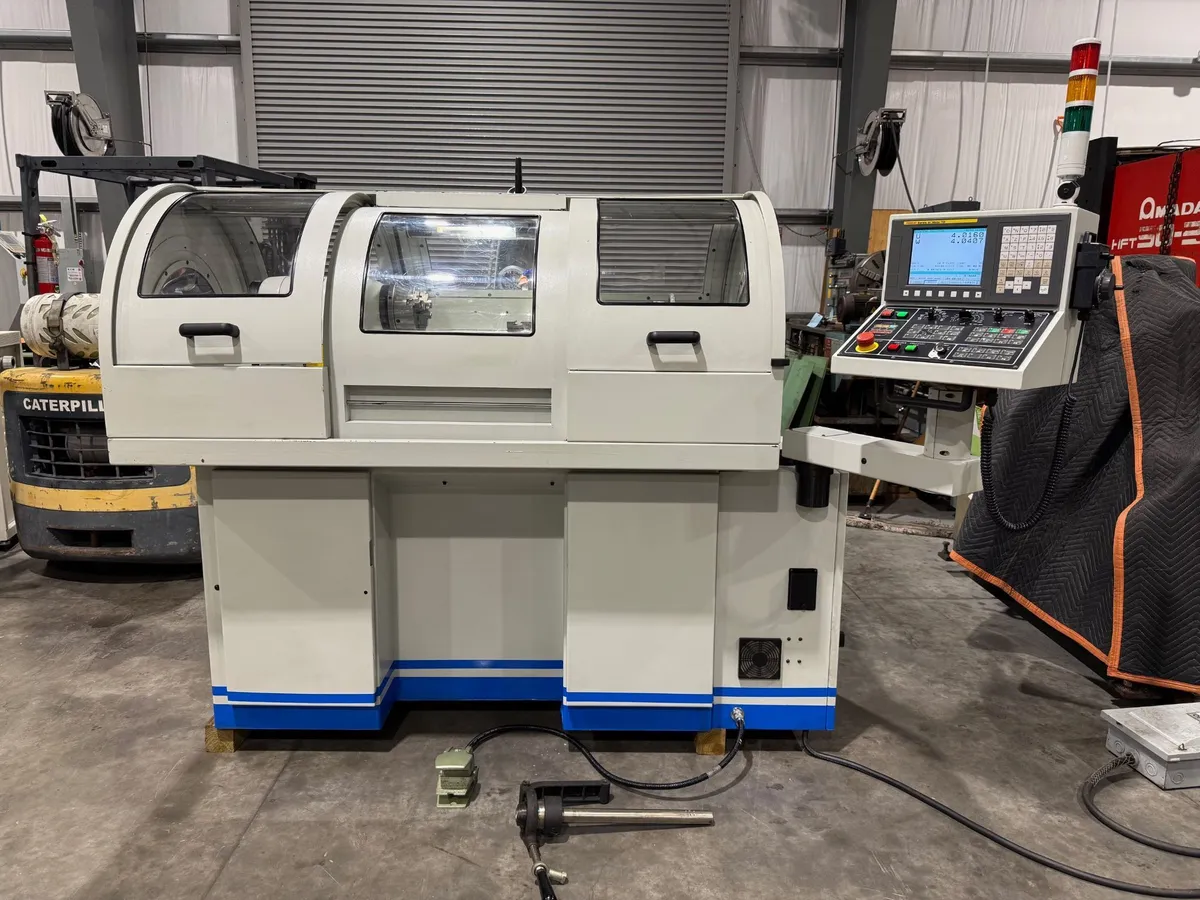

ACRA ATL-1118A CNC Toolroom Lathe FANUC 2014’ #7629
Reference # 7629

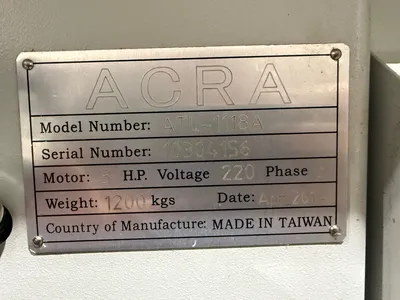

Model # ATL-1118A
Serial # 10304156
Year of manufacture- 4/2014’
Swing over bed- 11”
Swing over cross slide- 6”
Swing over carriage- 9”
Distance between centers- 18”
Spindle nose- 4° degree tapered (Hardinge type)
Spindle speeds- 0 – 4,000 R.P.M. C.S.S.
Spindle bore- 1-1/4”
Bar capacity- 11/16”
X axis travel- 6-1/4”
Z axis travel- 13-1/2”
Rapid traverse- 787 I.P.M.

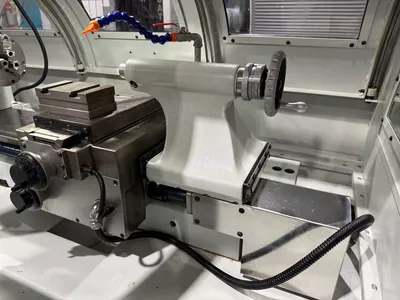

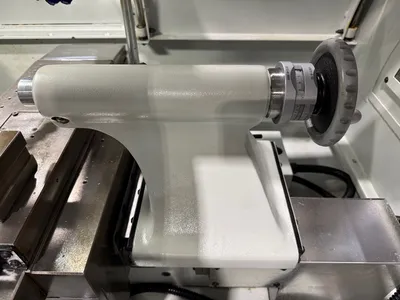

Tailstock quill taper- #2 Morse
Tailstock quill diameter- 1.358”
Tailstock quill travel- 3-3/4”

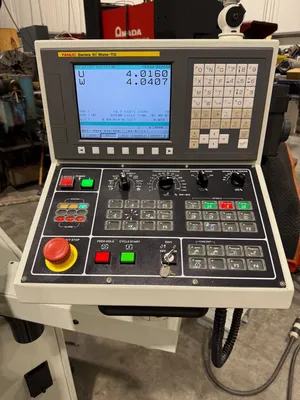

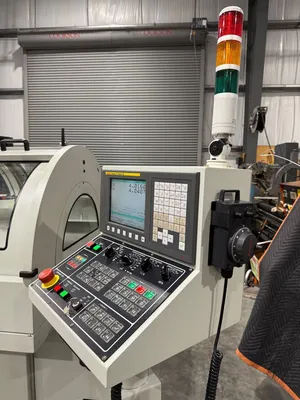

FANUC Oi CNC Control

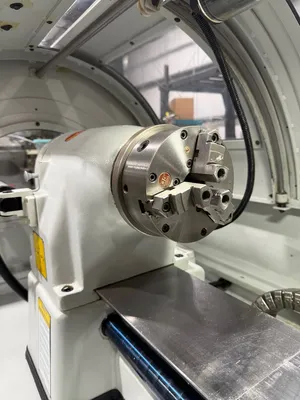

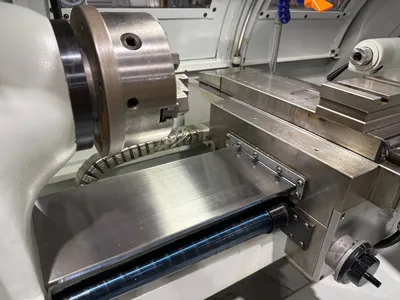

6” BTC 3 Jaw Chuck

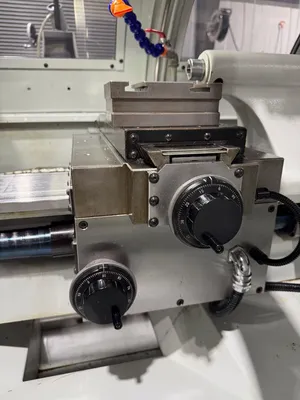

X & Z Electronic hand wheels
M.P.G. Manual Pulse Generator
“CSS” Constant Surface Speed

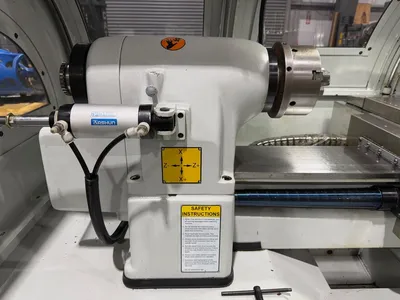

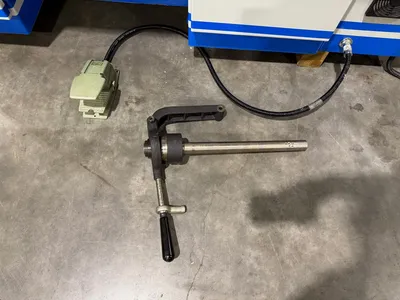

Pneumatic 5-C Lever collet closer
Coolant pump
Work light
5 H.P. Main motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 2,500 Lbs.
Machine dimensions-87” x 44” x 78”
This equipment has been sold. Similar equipment available now is shown below.
