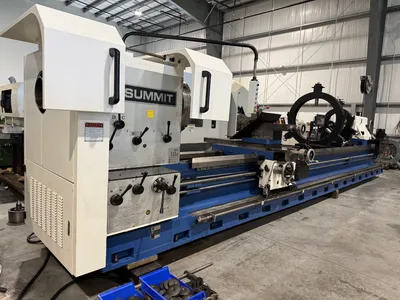

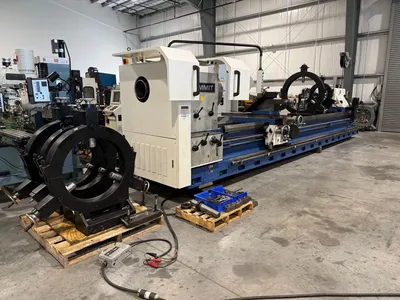

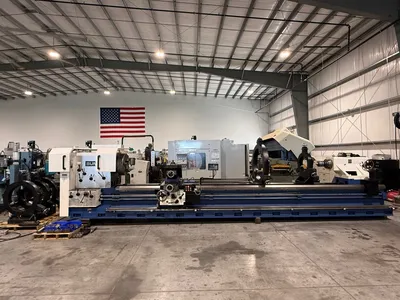

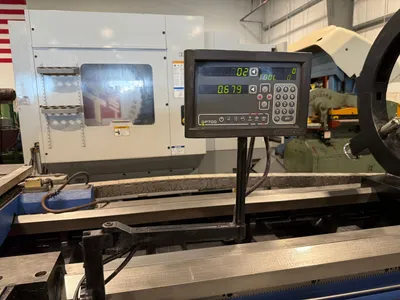

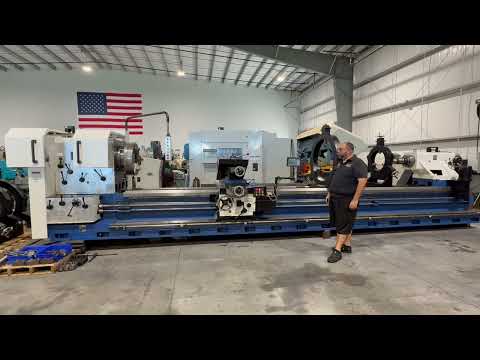

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628

SUMMIT 47-9 x 240”cc Hollow Spindle Lathe 2013’ 9” Bore DRO #7628
Reference #7628

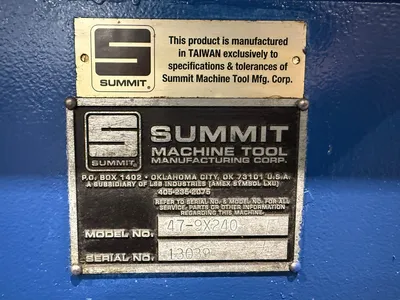

Model # 47-9x240
Serial # 13039
Year of manufacture- 2013’
Swing over bed- 47”
Swing over cross slide- 32.6”
Distance between centers- 240”
Maximum workpiece between centers- 22,000 Lbs. (supported)

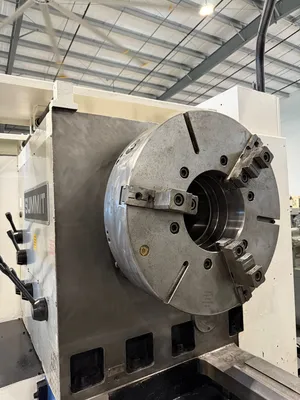

Spindle nose- A2-15

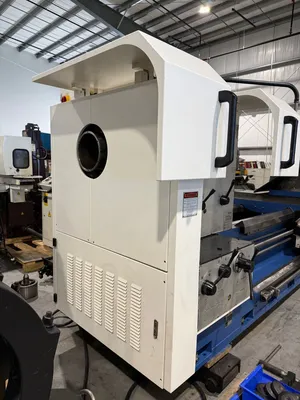

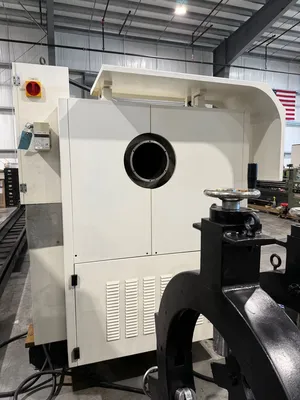

Spindle bore- 9”
Spindle speeds- (12) 6 – 400 R.P.M.

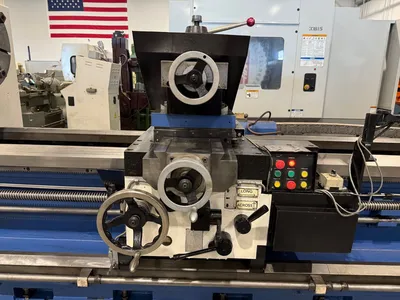

Cross slide trave- 30.7”

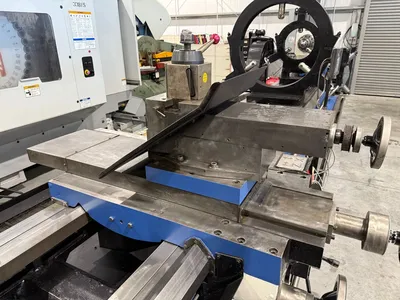

Compound travel- 13.7”
Bed width- 31.5”
Leadscrew diameter- 1.97”
Longitudinal feeds- (48) .13 – 1.92 I.P.R.
Cross feeds- (48) .065 - .96 I.P.R.
Inch threads- (48) 1 – 15 T.P.I.
Metric threads- (48) 2 – 30 mm

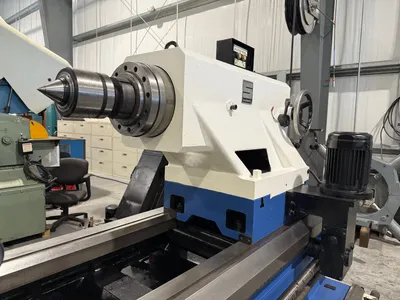

Tailstock taper- #7 Morse taper
Tailstock quill travel- 11.8”
Tailstock quill diameter- 7.9”
