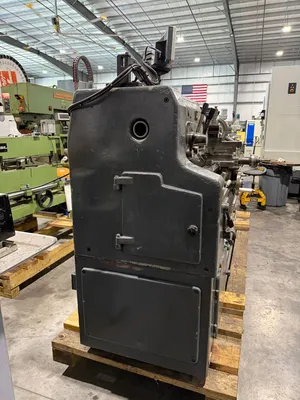

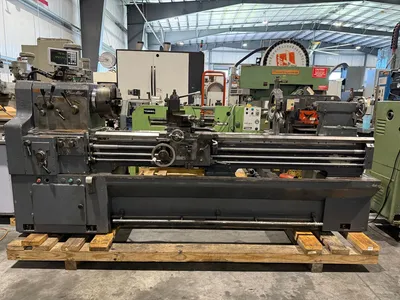

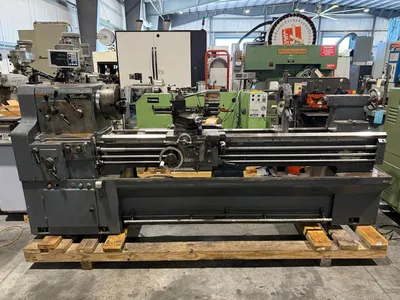

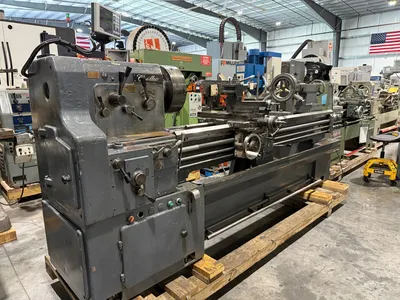

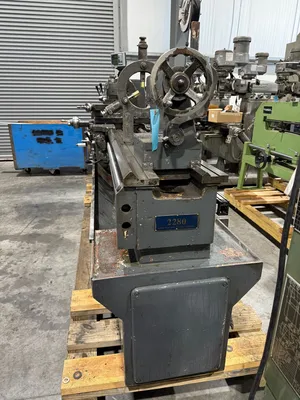

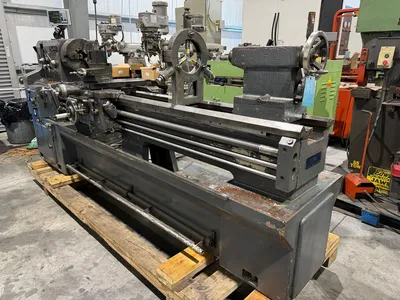

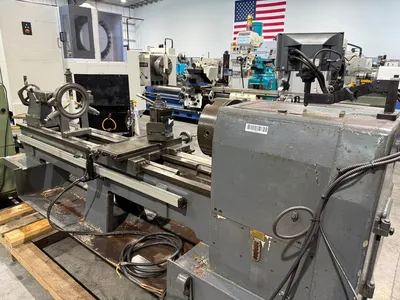

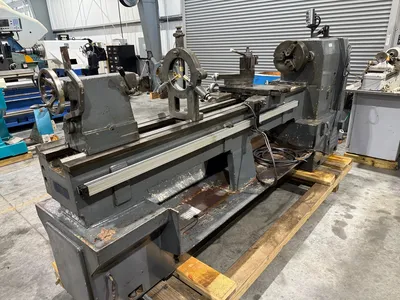

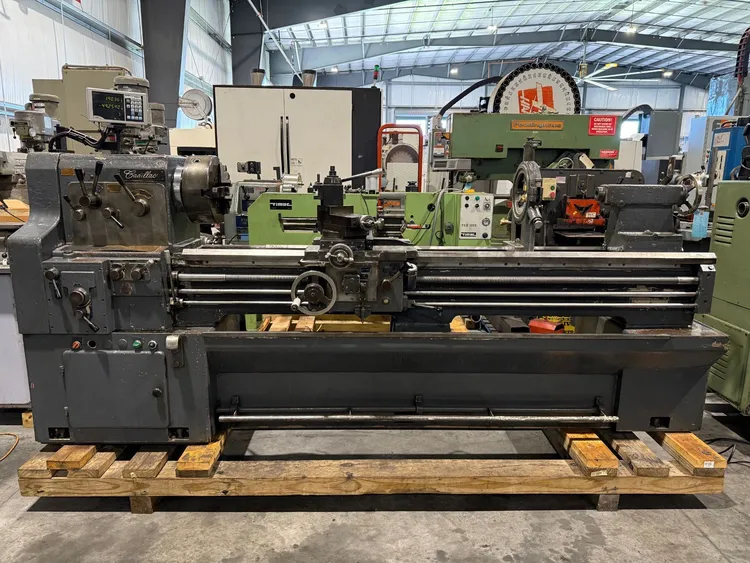

CADILLAC 22” x 80”cc Engine Lathe DRO #7642
Reference #7642
Model # 22x80

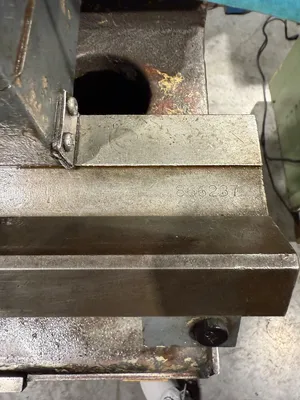

Serial # 866237
Swing over bed- 22”
Swing over cross slide- 15”
Distance between centers- 80”
Spindle nose- D1-6
Spindle bore- 2-9/32”
Spindle speeds- 25 – 1,500 R.P.M.
Tailstock taper- #4
Tailstock quill travel- 6”
Longitudinal feeds- (32) 0.0018 – 0.025”
Cross feeds- (32) 0.0018 – 0.025”

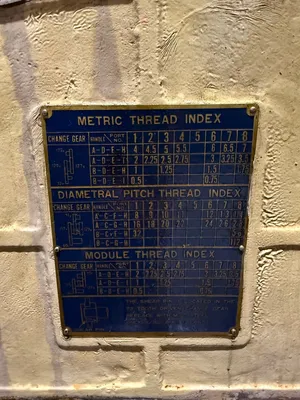

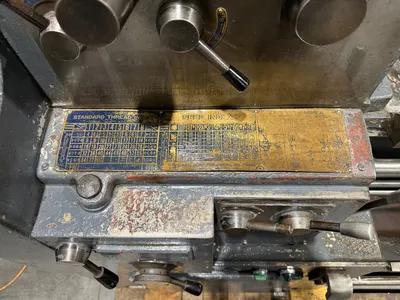

Inch threads- 4 – 80 T.P.I.
MM threads- 0.25 – 21
Cross slide travel- 10”
Compound travel- 5.7”

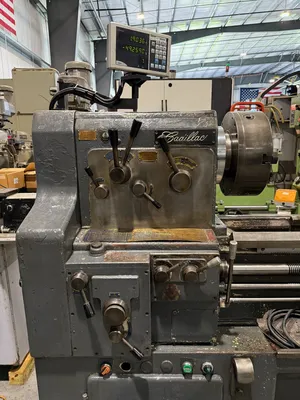

FAGOR 2 axis DRO Digital Read Out

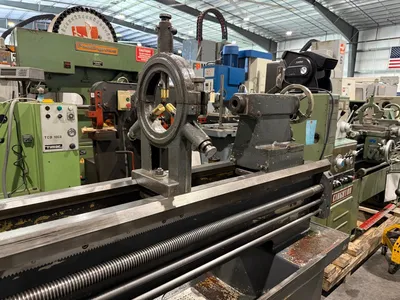

Steady Rest 7” capacity

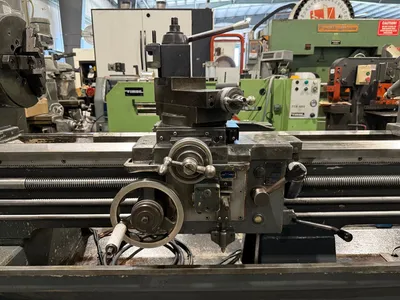

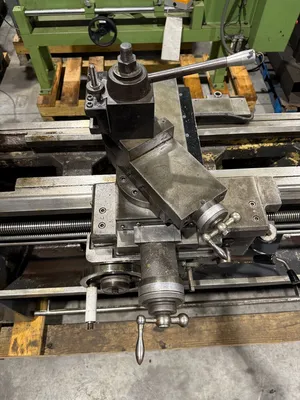

Tool Post and (1) Holder

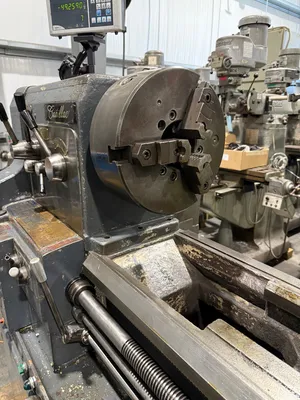

12” 3 Jaw Chuck
Foot treadle
10 H.P. motor
Machine is wired for 480 Volt / 3 phase / 60 H.Z.
Machine dimensions- 106” x 46” x 64” H
Machine weight- 6,000 Lbs.
Machine location- F.O.B. Sarasota, Floirda
