| X axis | 26" | 660.4 mm |
| Y axis | 14" | 355.6 mm |
| Z axis | 18" | 457.2 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 29" | 736.6 mm |
| Dimensions | 72” L x 90” W x 94” H | 72” L x 90” W x 94” H |
| Weight | 6500 Lbs. | 6500 Lbs. |

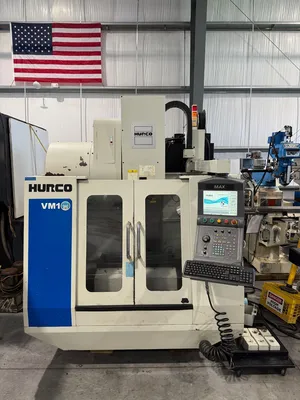

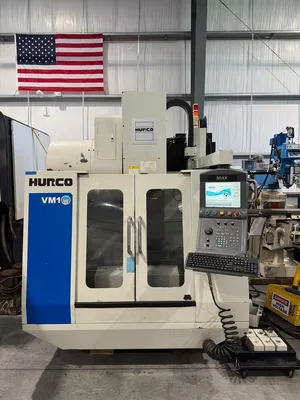

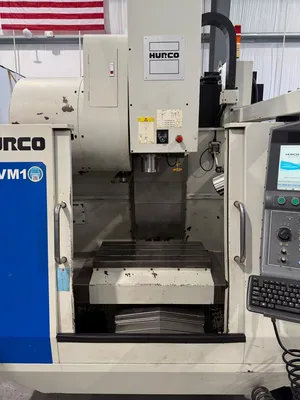

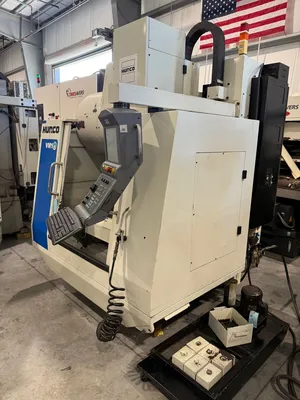

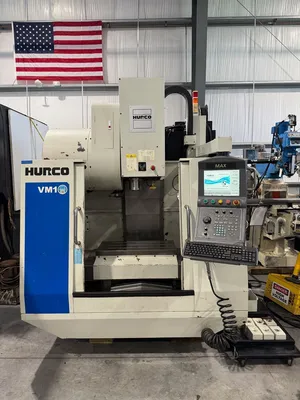

HURCO VM-1 CNC Vertical Machining Center 2008’ #7646
Reference # 7646

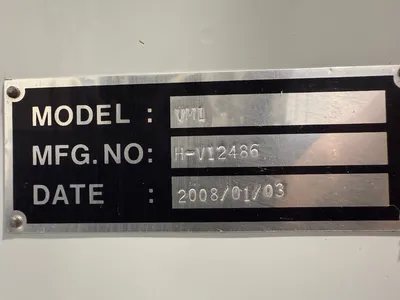

Model # VM-1
Serial # H-V12486
Year of Manufacture- 1/03/2008’

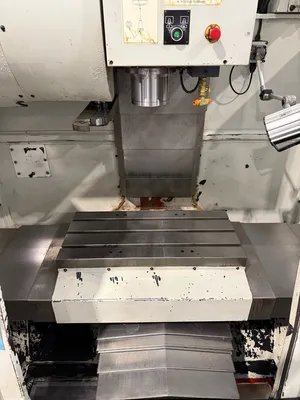

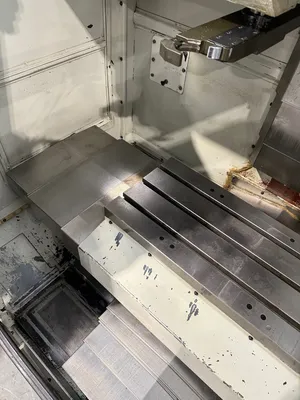

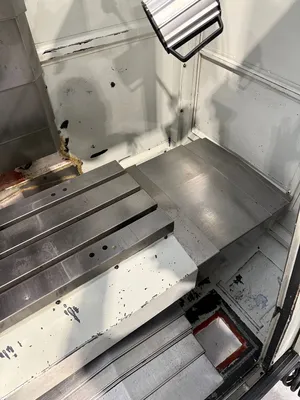

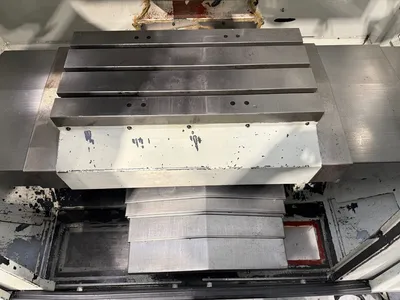

Table size- 30” x 14”
Max table weight- 750 Lbs.
X axis travel- 26”
Y axis travel- 14”
Z axis travel- 18”
Spindle taper- CAT 40
Max spindle speed- 8,000 R.P.M.

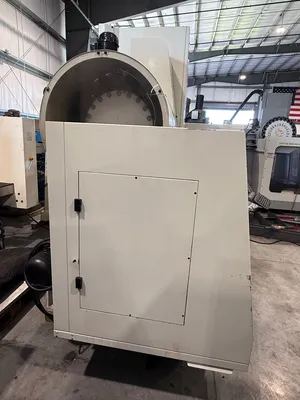

ATC # of tools- 20 (side mount)
Tool change time- 3 seconds
X & Y axis rapids- 945 I.P.M.
Z axis rapids- 750 I.P.M.

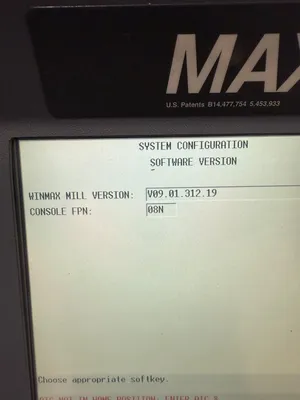

Winmax CNC Control / Touch screen Version V09.01.312.19

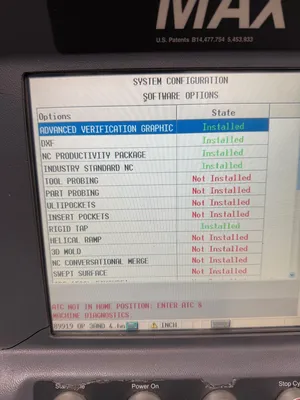

Control options- Advanced Verification Graphic, DXF, NC Productivity package, Industry Standard NC, Rigid Tap
15 H.P. Main spindle motor

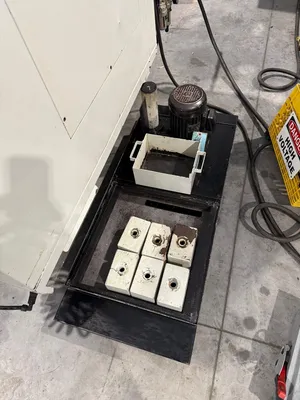

Coolant tank & pump
(6) Leveling pads

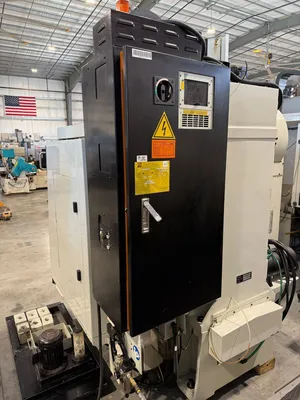

Machine is currently wired 220 / 3 phase / 60 H.Z.
Machine weight- 6,500 Lbs.
Machine dimensions- 72” L x 90” W x 94” H
Machine location- F.O.B. Sarasota, Florida
