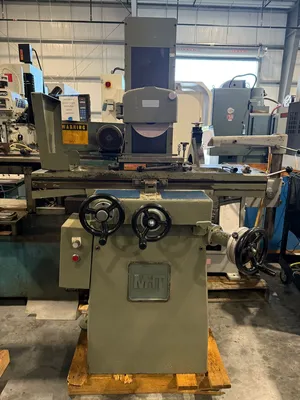

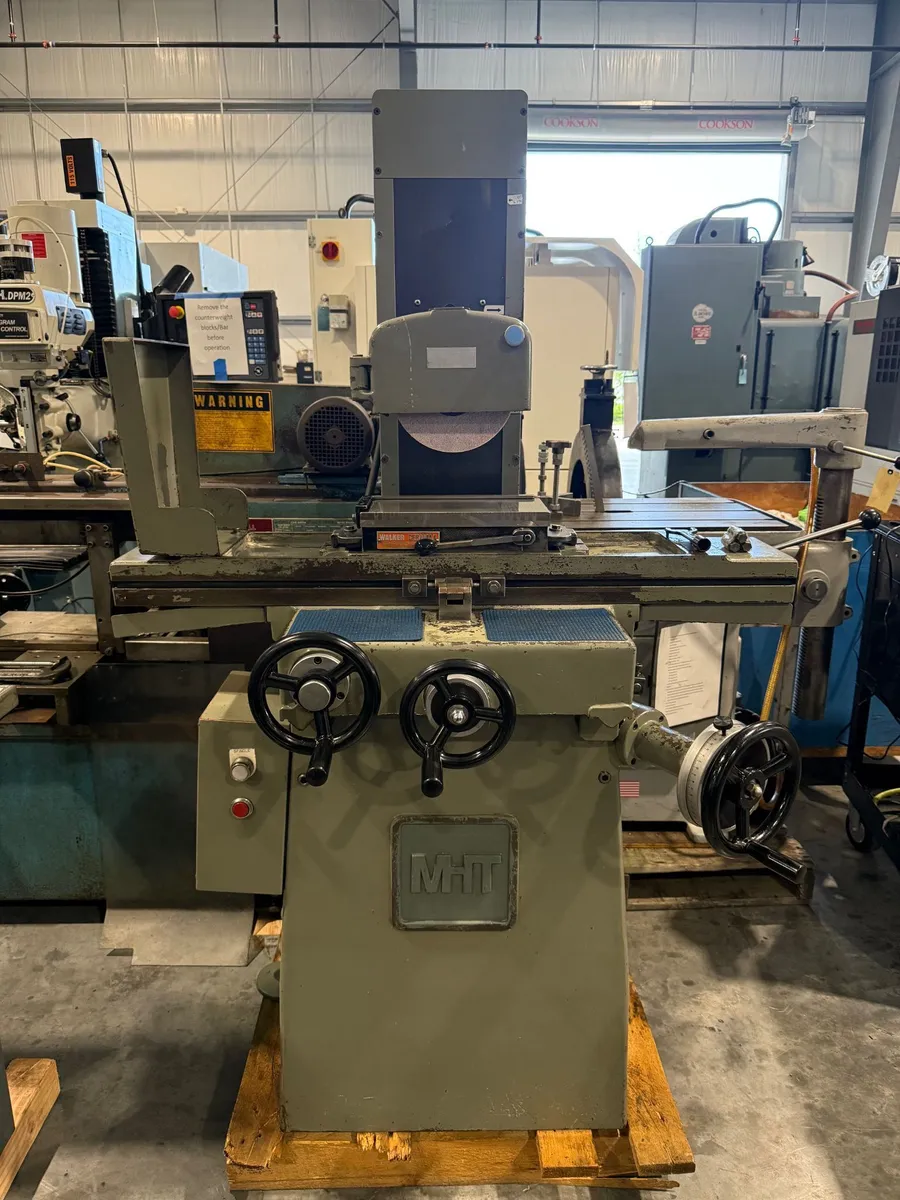

MITSUI #MH200 6 x 12” Precision Surface Grinder 1985’ #7654
Have one to sell?
$4,450.00 USD
ConditionUsed
1 available

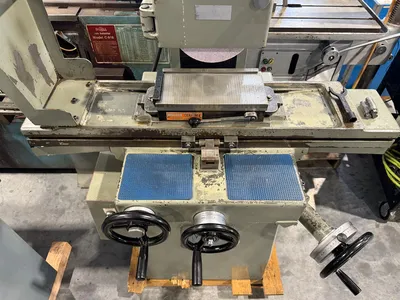

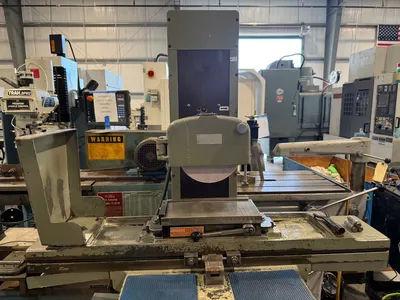

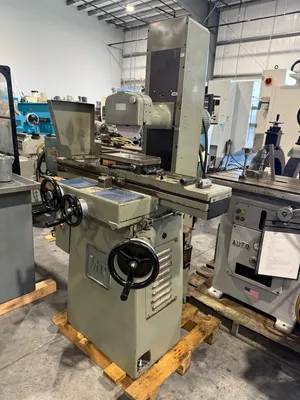

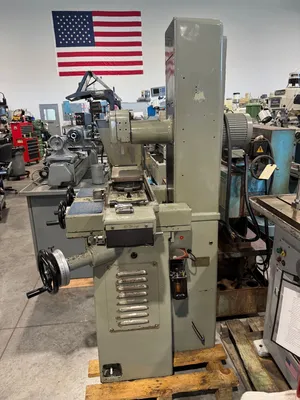

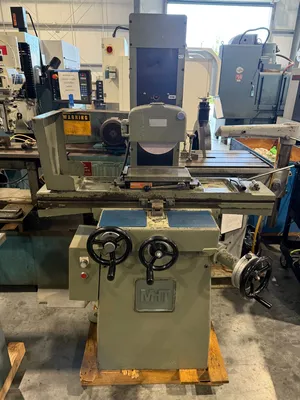

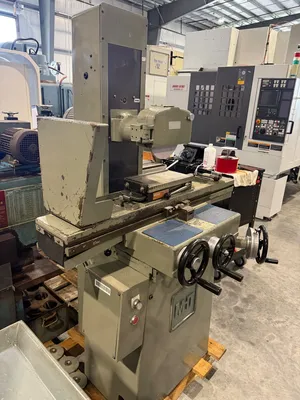

MITSUI #MH200 6 x 12” Precision Surface Grinder 1985’ #7654
MITSUI #MH200 6 x 12” Precision Surface Grinder 1985’ #7654
Reference #7654

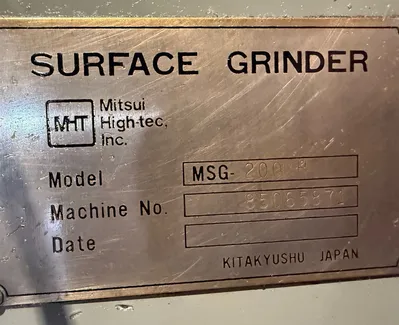

Model # MSG-200MH
Serial # 85065871
Year of manufacture- 1985’
Maximum surface ground- 6” x 12”
Maximum distance, table surface to spindle center- 18”
Maximum distance, top of chuck to underside of 8" diameter wheel- 11”
Range: longitudinal- 15”
Cross- 8”
Size of standard grinding wheel- 7" diameter x 1/2" face x 1-1/4" hole
Size of maximum grinding wheel- 8" diameter x 3/4" face x 1-1/4"hole

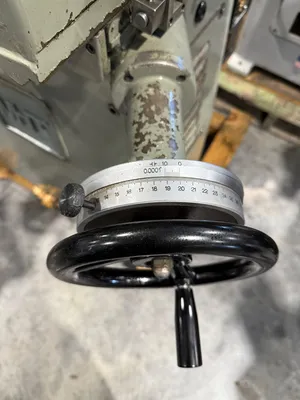

Elevating handwheel graduations- .0001"
Vertical feed per revolution of handwheel- 0.0500"
Cross feed handwheel graduations- .001"
Cross feed per revolution of handwheel- 0.100"
Hardened and ground removable ways on table, saddle, and column
All three axes traveling on roller bearing slides
6" x 12" OS WALKER permanent magnetic chuck
Manually operated one-shot lubrication system
1.3 H.P. 3/60/220 volt cartridge-type spindle drive motor and electrical controls
Machine weight- 1,500 Lbs.
Machine dimensions- 58” x 52” W x 72’’ H
Machine location- F.O.B. Sarasota, Florida
