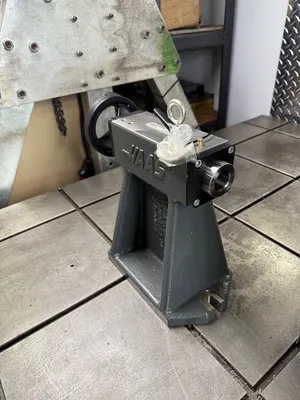

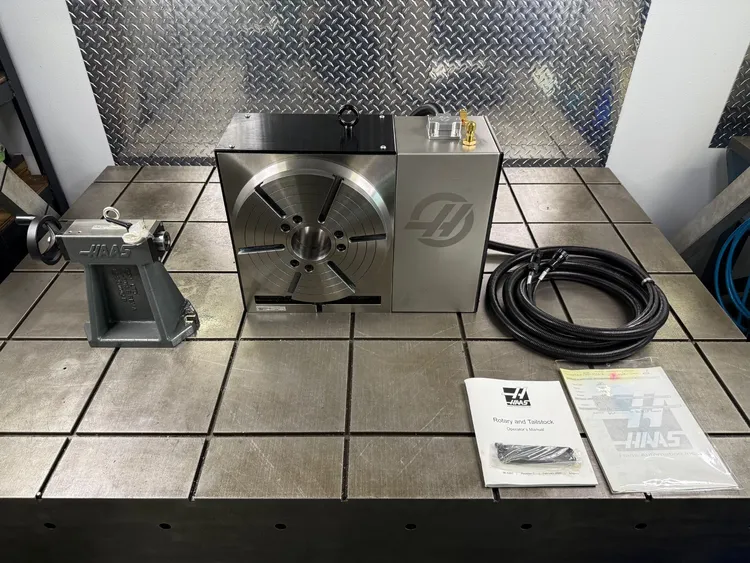

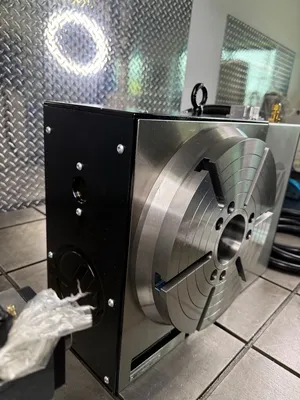

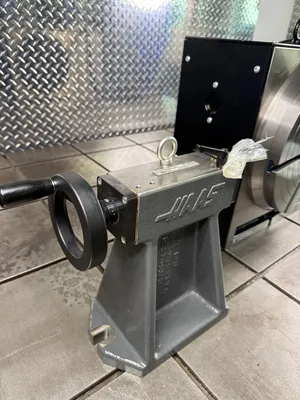

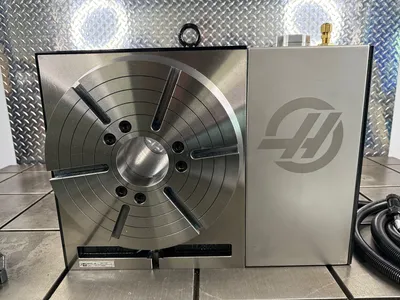

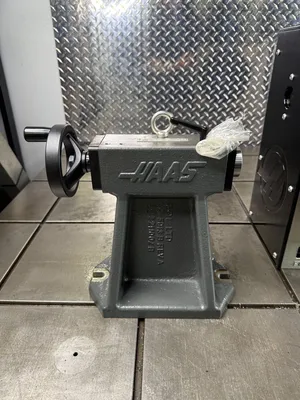

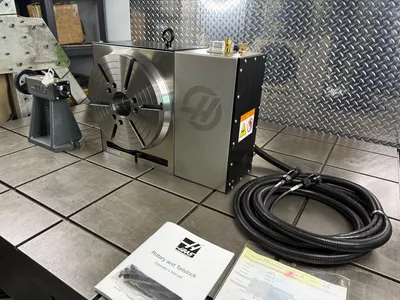

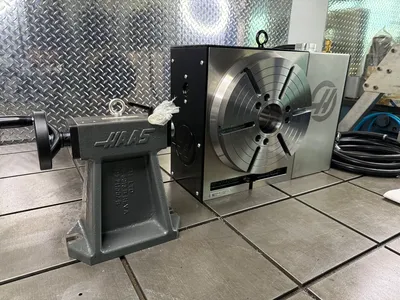

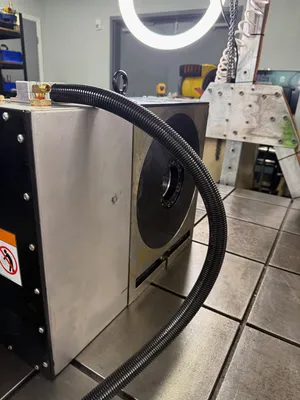

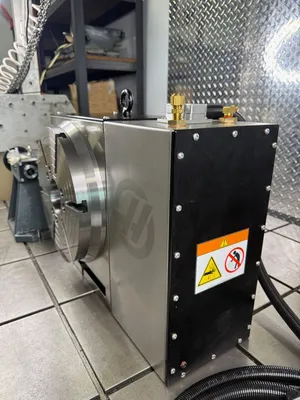

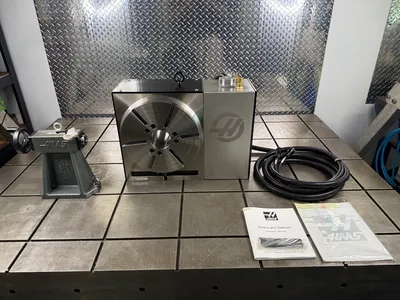

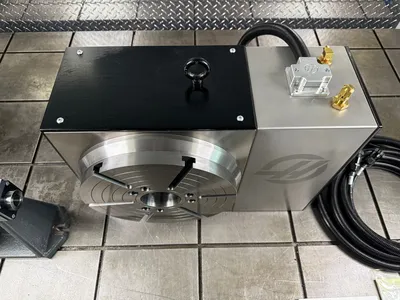

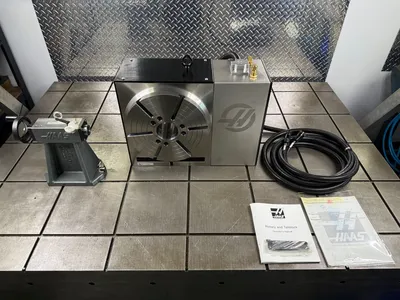

HAAS HRT-310 CNC Rotary Table & Tailstock 2022’ NEW USA #7660

HAAS HRT-310 CNC Rotary Table & Tailstock 2022’ NEW USA #7660
Reference #7660
Model # HRT-310
Serial # 320616 Version P20
Year of manufacture- 6/2022’

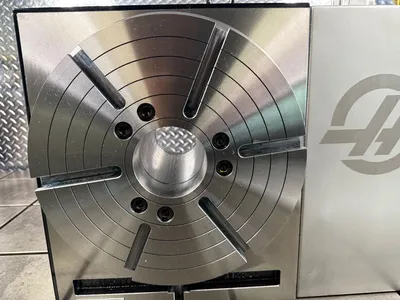

Platter diameter- 12.20”
Max weight on platter supported- 435 Lbs.
Max weight on platter unsupported- 218 Lbs.
Max spindle speed- 75° sec
Torque- 300 Ft-Lbf

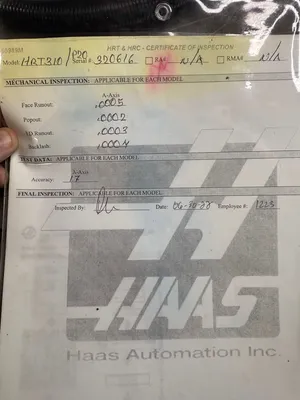

Runout max- 0.0010
Center height- 9.00
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 500 Fl-Lbf
Gear ratio- 72:1
Timing- 2:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter-9.4”
Max rotation / step- 999.999°
