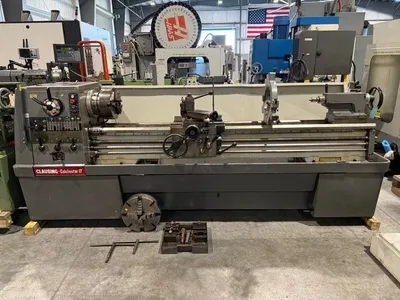

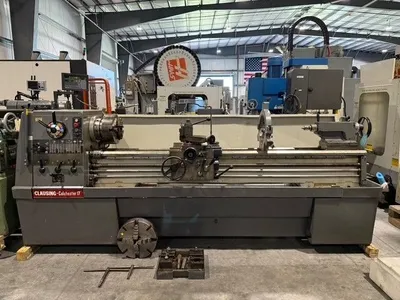

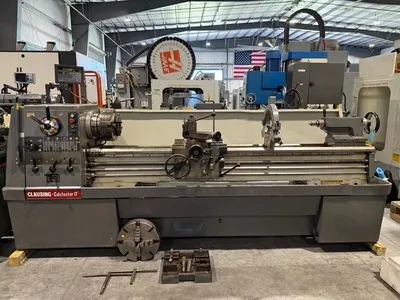

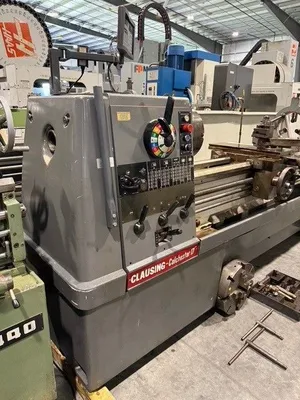

CLAUSING COLCHESTER 17” x 80”cc Engine Lathe DRO #7661
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available
CLAUSING COLCHESTER 17” x 80”cc Engine Lathe DRO #7661
CLAUSING COLCHESTER 17” x 80”cc Engine Lathe DRO #7661
Reference # 7661
Model # 17” Colchester
Serial # LMT80SILGV/17602
Swing over bed- 17-1/4”
Swing over cross slide- 10-1/2”
Distance between centers- 80”
Hole through spindle- 3-1/16”
Spindle nose, Camlock, size- D-1-8
(16) Spindle speeds- 20 – 1600 R.P.M.

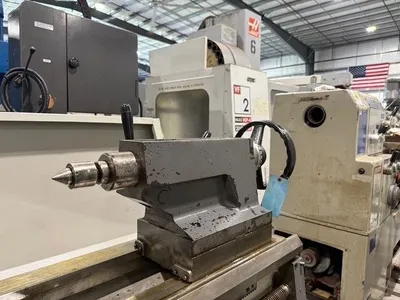

Headstock and tailstock spindle center taper- #5 Morse
Tailstock spindle travel- 7”
Tailstock spindle diameter- 2-15/16”
Width of bed- 13-1/2”
Longitudinal feeds- .002” - .032” I.P.M.
Cross feeds- .001” - .016” I.P.M.
Inch threads- (45) 2 – 72 T.P.I.
Metric threads- (39) .4 – 14 mm
NEWALL DP700 2 Axis DRO

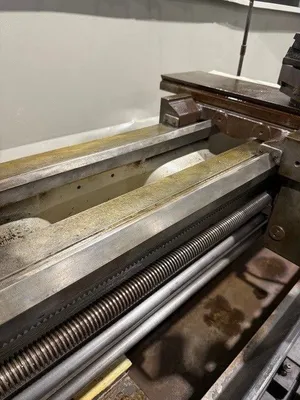

Induction hardened bedways
Inch/Metric threading capability

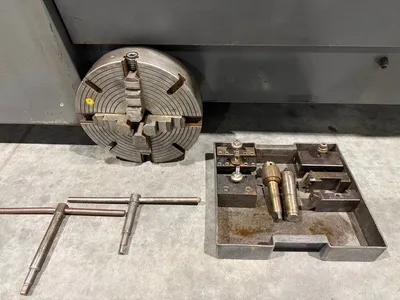

15" Diameter SWEDEN four-jaw chuck
12" three-jaw chuck with removable and reversible top jaws

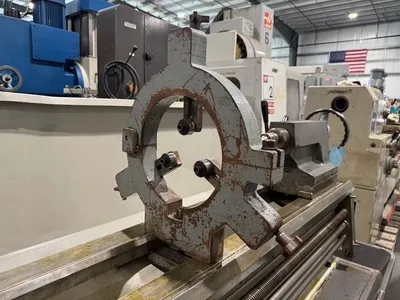

10" Diameter capacity steady rest

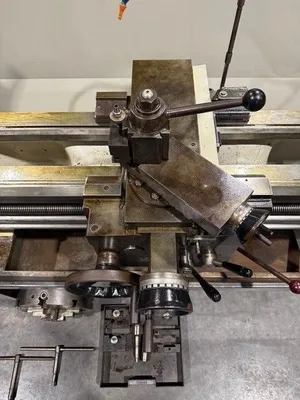

Aloris Tool Post & (7) Holders
Live center, Dead center, Drill chuck
Threading dial
Adjustable carriage stop

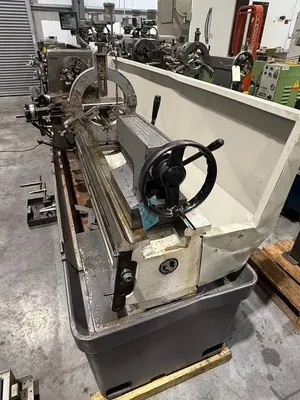

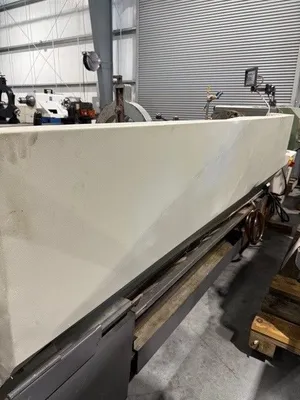

Self-contained coolant system with full length rear splash guard
10 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is wired for 460 volt operation.
Machine weight- 6000 Lbs.
Machine dimensions- 90” L x 50” W x 65’’ H
Machine location- F.O.B. Sarasota, Florida
