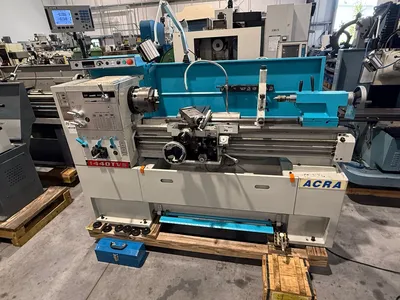

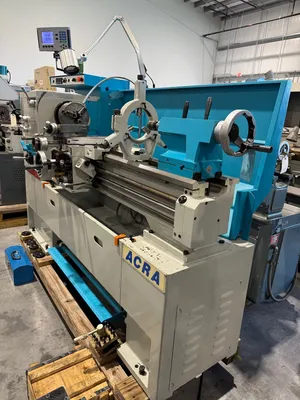

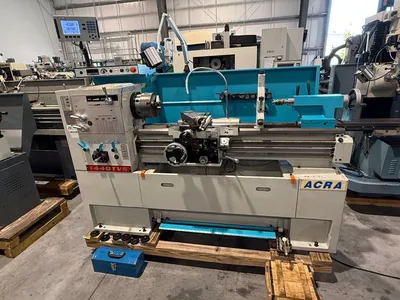

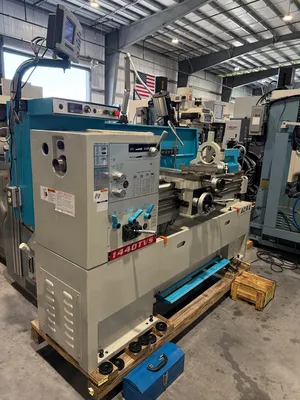

ACRA 1440TVS 14”/21” x 40”cc Variable Speed Lathe DRO 2015’ #7699

ACRA 1440TVS 14”/21” x 40”cc Variable Speed Lathe DRO 2015’ #7699
Reference # 7699
Model # 1440TVS

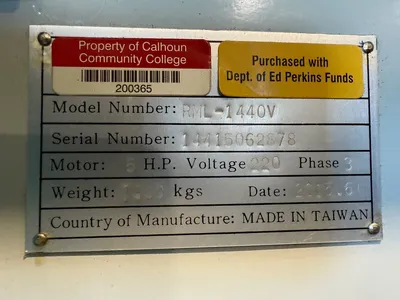

Serial # 14415062878
Year of manufacture- 6/2015’
Swing over bed- 14-3/16”
Swing in Gap- 21”
Swing over cross slide- 8/3/8”
Distance between centers- 40”
Bed width- 10-1/4”

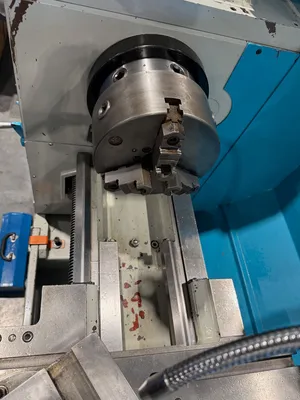

Spindle nose- D1-6
Spindle bore- 2-1/16”
Spindle speeds- 20 – 2,500 R.P.M.

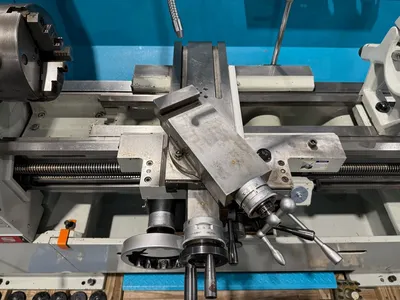

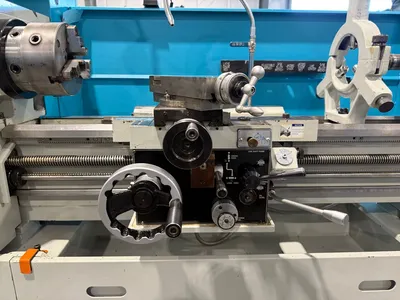

Cross slide travel- 8-11/16”
Compound travel- 5-1/2”
Inch threads- 2 – 72 T.P.I.
Metric threads- 0.2 – 14 mm
Longitudinal feeds- 0.002 – 0.067 I.P.R.
Cross feeds- 0.001 – 0.034 I.P.R.
Tailstock taper- # 4 Morse
Tailstock quill diameter- 2”
Tailstock quill travel- 6”
