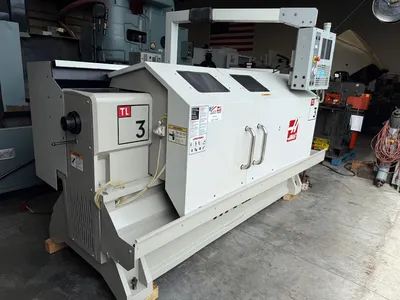

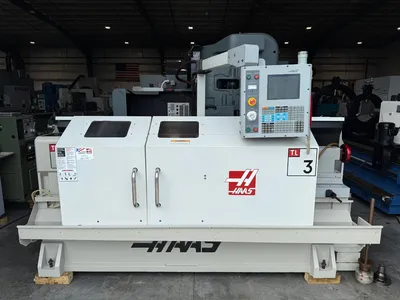

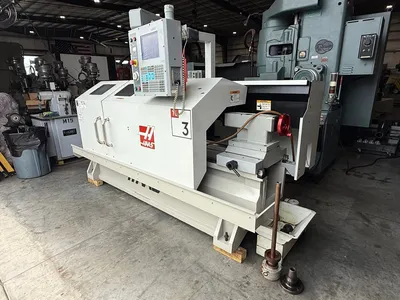

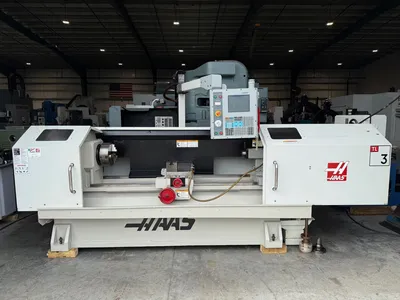

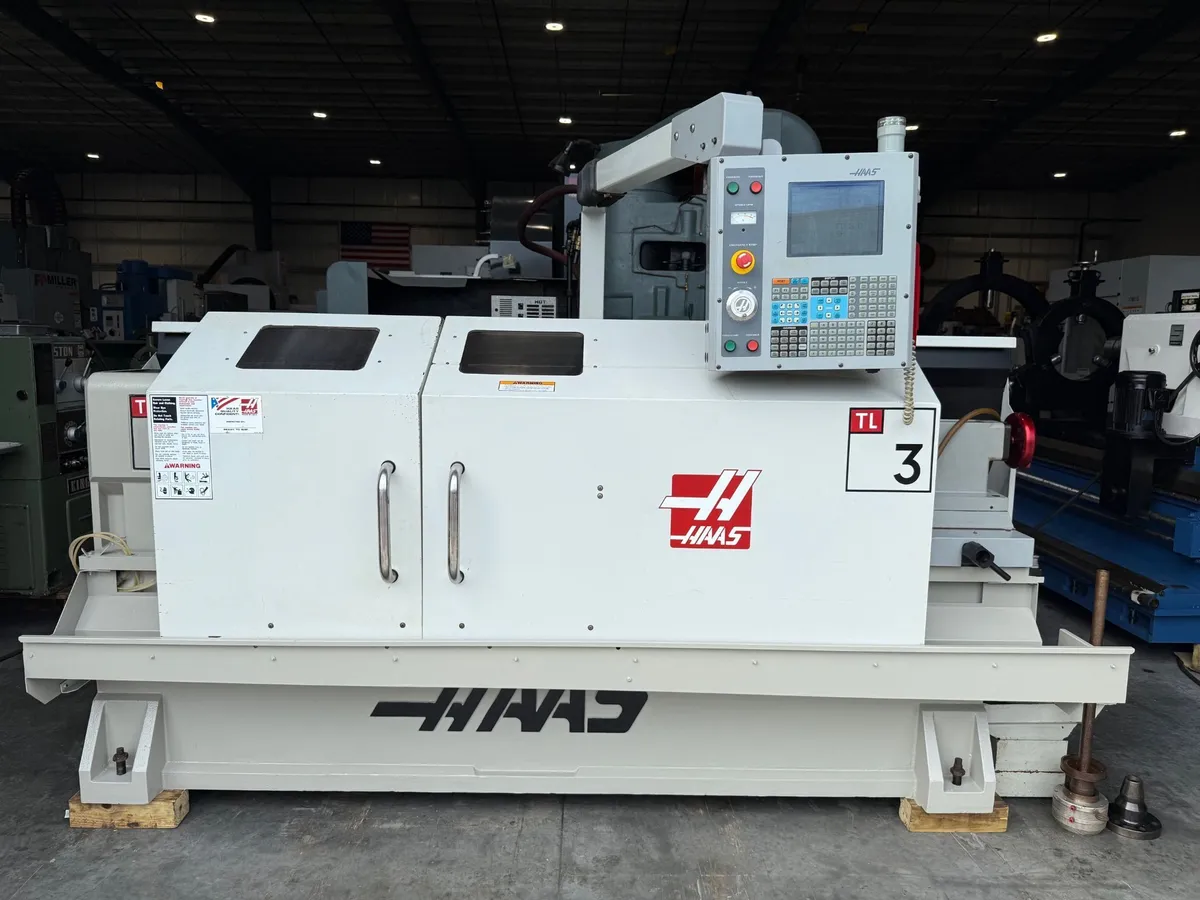

HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698
Have one to sell?
$34,500.00 USD
ConditionUsed
1 available
HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698
HAAS TL-3 CNC Toolroom Teach Style Lathe 2006’ USA #7698
Reference # 7698
Model # TL-3
Serial # 73723
Year of manufacture- 7/2006’
Maximum swing- 20”
Swing over cross slide- 13”
Maximum cutting diameter- 16”
Maximum cutting length- 60”
Distance between centers- 60”
X axis travel- 12”
Z axis travel- 60”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 1800 R.P.M.
Spindle bore- 3.5”

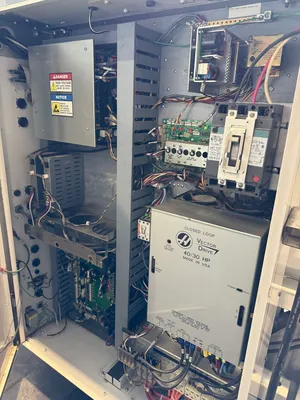

HAAS CNC control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code, Brushless Barfeeder Interface, Intuitive Programming Systems

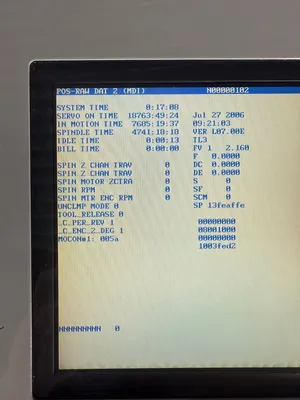

Machine hours- Servo time- 18,763 In motion time- 7,685, Spindle time- 4,741

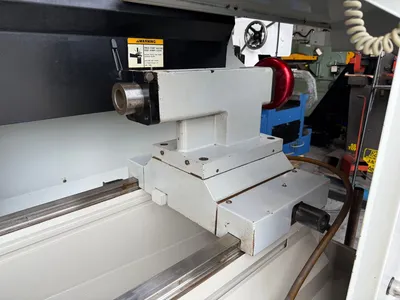

Tailstock

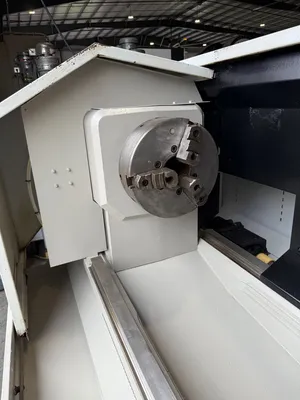

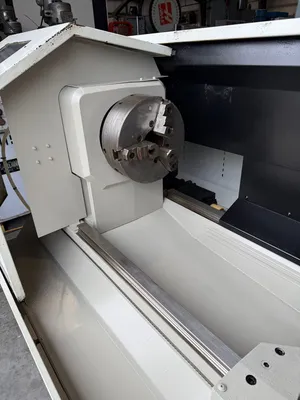

12” BTC 3 Jaw Chuck “Adjust-Tru” Type
5-C Collet chuck & Pneumatic draw tube

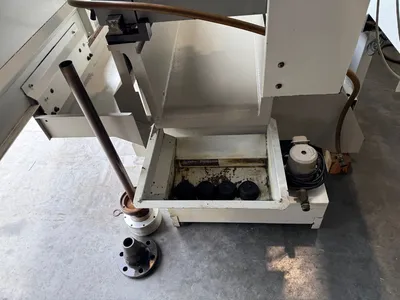

Coolant tank & pump
Chuck wrench
Main spindle motor 18 H.P.
Machine is wired for 208/230 volt / 3 phase / 60 H.Z.
Machine weight- 8500 Lbs.
Machine dimensions- 118” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
