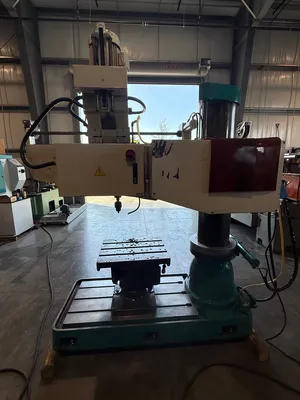

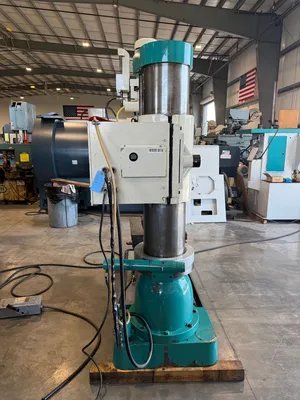

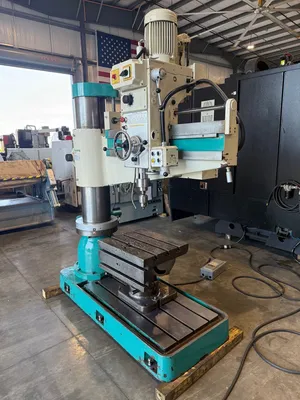

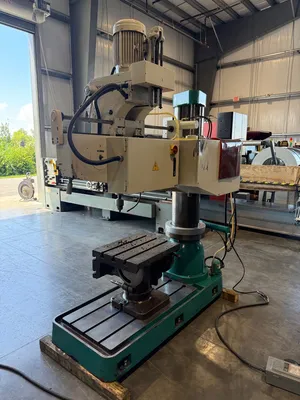

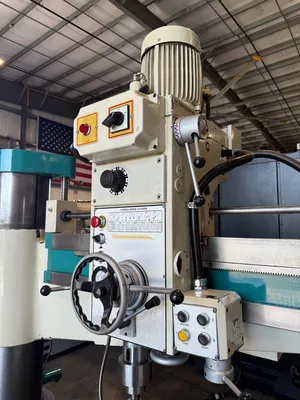

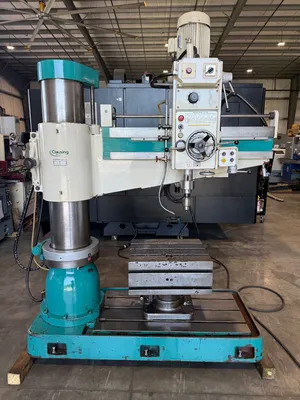

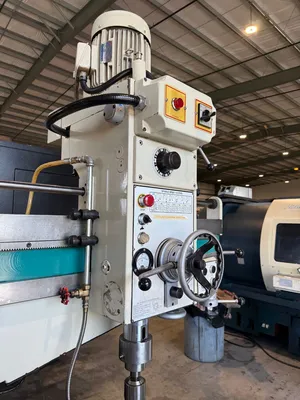

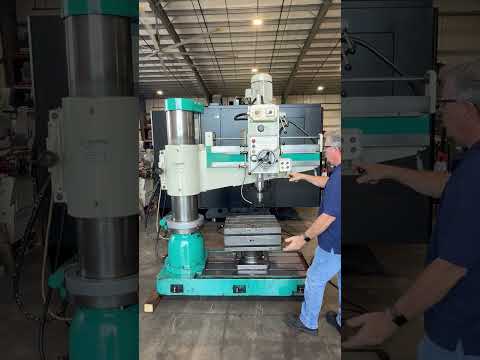

CLAUSING CL1230H 4’ x 11.81” Radial Arm Drill 2008’ #7700
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD
CLAUSING CL1230H 4’ x 11.81” Radial Arm Drill 2008’ #7700
CLAUSING CL1230H 4’ x 11.81” Radial Arm Drill 2008’ #7700
Reference #7700
Model # CL-1230H
Serial # 18672
Year of manufacture- 2008’
Number of speeds- 12
Speed range- 44 – 1500 R.P.M.
Column to spindle- 13.4” – 46.1” Min/Max
Spindle head travel- 35”
Arm elevation travel- 34.6”
Spindle taper- # 5 Morse
Spindle quill travel- 9.84”

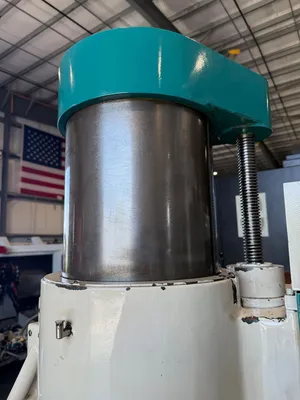

Column diameter- 11.81”
Base surface to spindle nose- 19.3” – 53.9” Min/Max
Base working surface-48” x 29.1”
Number of feeds- (3) 0.002, 0.0036, 0.006
Drill capacity- 2.16” cast iron / 1.65” steel
Tapping capacity- 1.38” cast iron / 1” steel

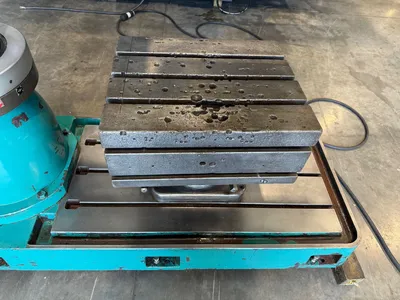

Universal Box table 24” x 20” x 20”
Drill chuck
Coolant pump
3 H.P. Spindle motor
3 H.P. Elevation motor
1 H.P. Clamping motor
1/8 H.P. Coolant motor
Machine is wired for 460 / 3 phase / 60 H.Z.
Machine weight- 5,100 Lbs.
Machine dimensions- 81” L x 35” W x 90’’ H
Machine location- F.O.B. Sarasota, Florida
