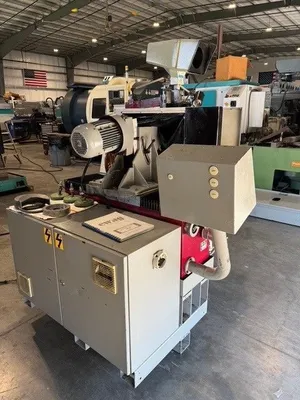

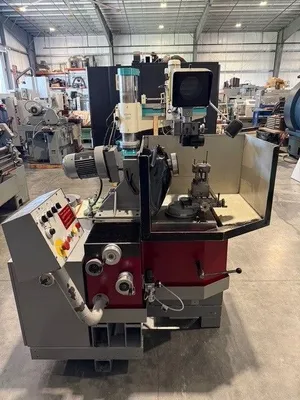

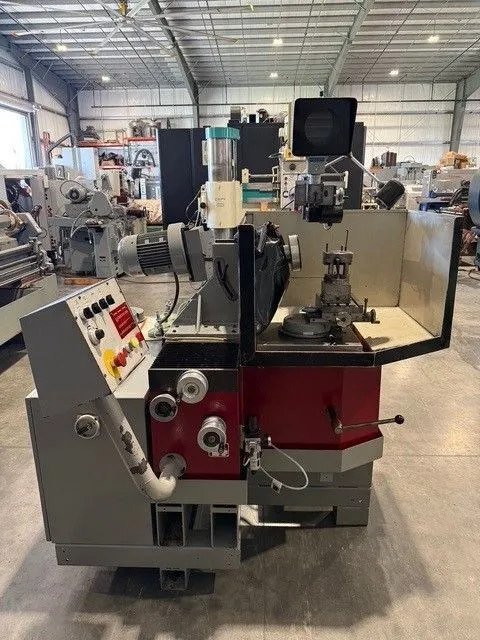

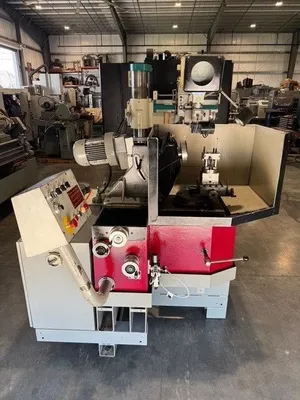

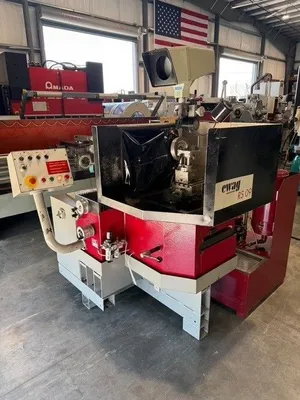

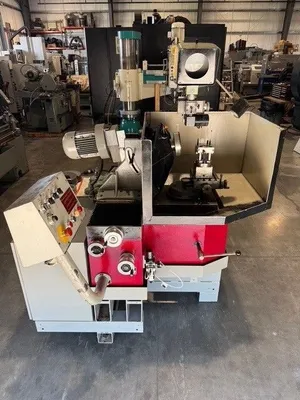

EWAG RS-09 Tool & Cutter Grinder Profile Swiss Made #7701
EWAG RS-09 Tool & Cutter Grinder Profile Swiss Made #7701
Reference #7701
Model # RS-09

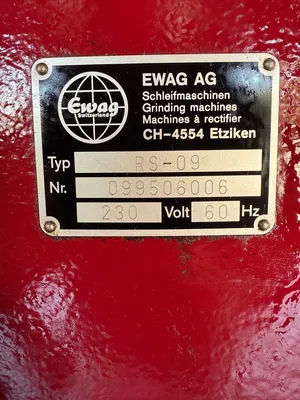

Serial # 099506006
A Axis (Spindle Inclination)- -6°- 24°
X axis travel- 8.66”
Z axis travel- 0 – 1.38”
B axis- 240° swivel
Grinding wheel speed- 4,000 R.P.M.
Oscillation stroke- 1.18”
Oscillation frequency- 30/60 S.P.M.
Setting accuracy of Z axis- .0004”
Grinding pressure- 0 – 300 N
Retraction of work head from the grinding to measure position- 1.77”

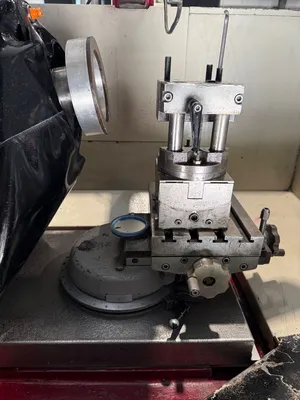

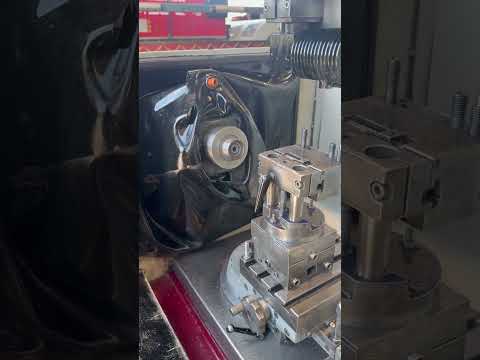

Cross table clamping surface- 6.10” x 8.07”
Travel- 2.36”
Swiss Made

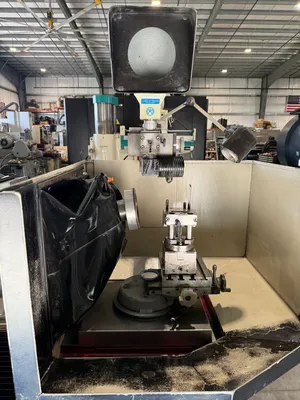

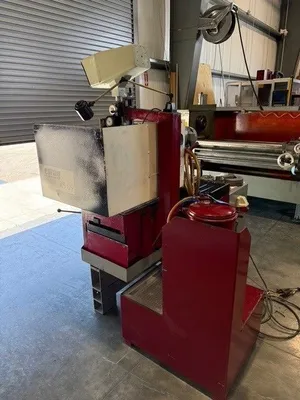

Profile projector

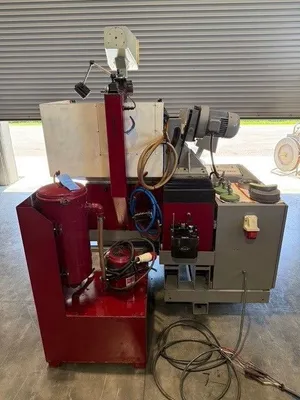

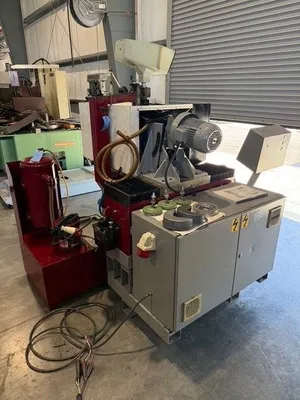

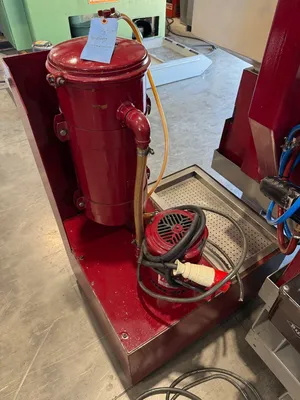

Coolant tank & Pump

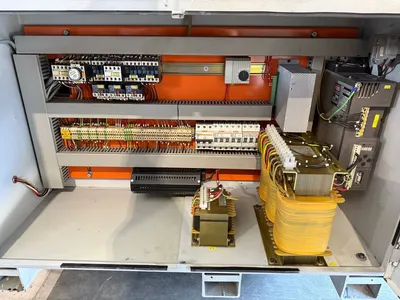

Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 3500 Lbs.
Machine dimensions- 64” x 70” x 73” H
Machine location- Sarasota, Florida
