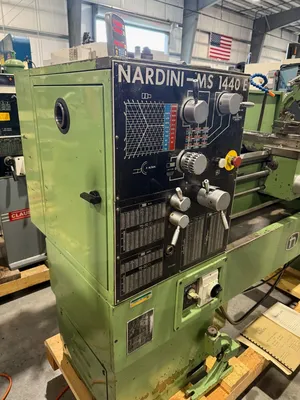

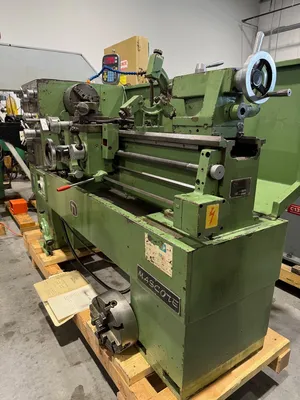

NARDINI MASCOTE MS-1440E 14”/19.75” x 40”cc Gap Bed Lathe #7767
Have one to sell?
ConditionUsed
1 available
$6,950.00 USD

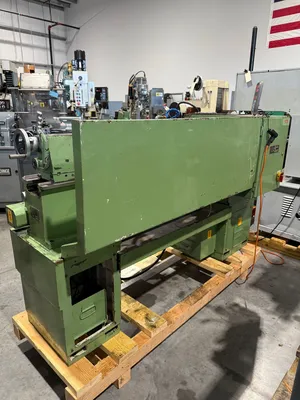

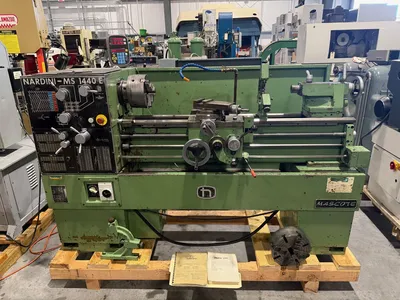

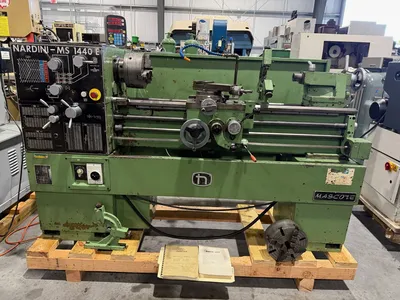

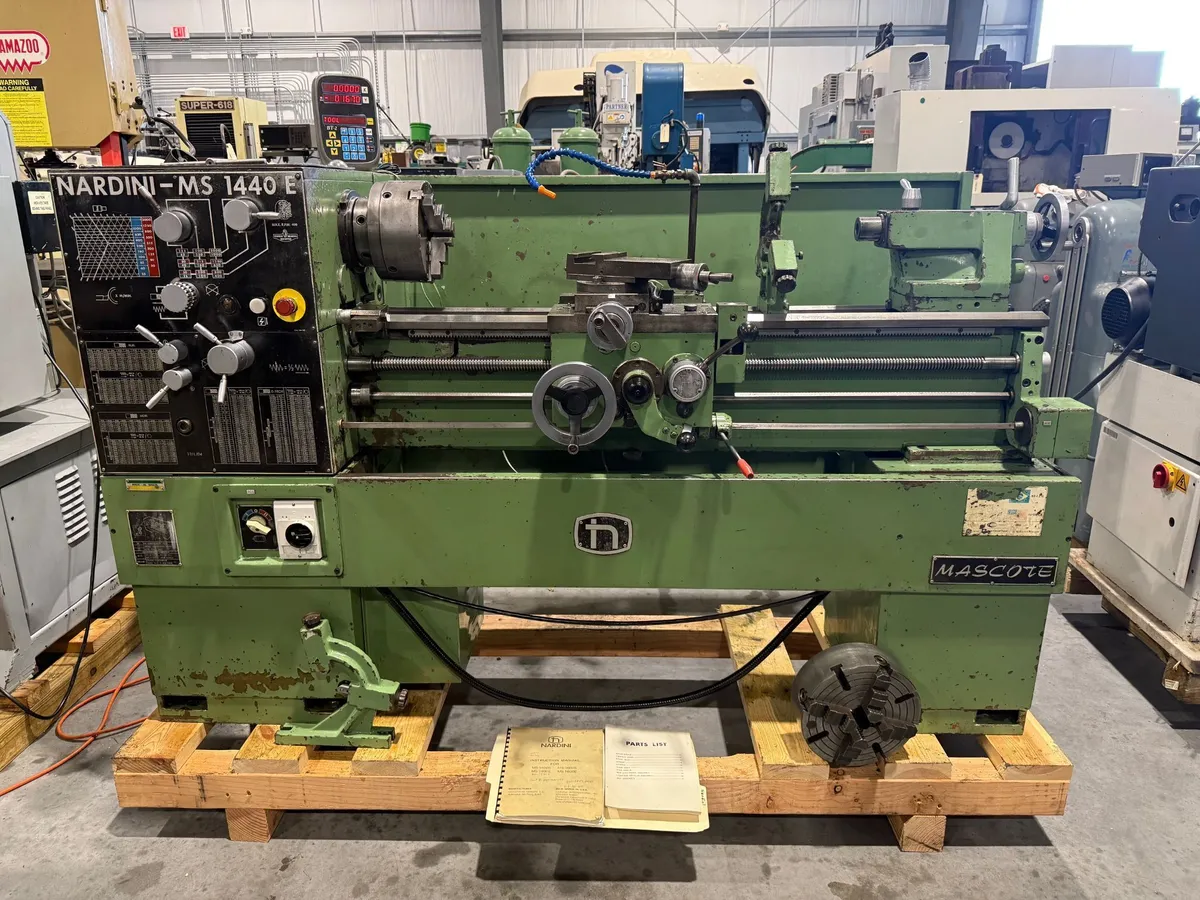

NARDINI MASCOTE MS-1440E 14”/19.75” x 40”cc Gap Bed Lathe #7767
NARDINI MASCOTE MS-1440E 14”/19.75” x 40”cc Gap Bed Lathe #7767
Reference # 7767
Model # MS-1440E

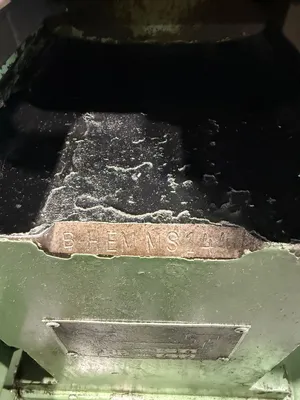

Serial # BHEMMS144
Swing over bed- 13-3/4”
Swing over cross slide- 7-7/8”
Swing through removable gap- 19-3/4”
Distance between centers- 40”
Spindle bore- 1-5/8”
Spindle nose, Camlock, size- D1-5
Headstock and tailstock spindle center taper- #3 Morse
(18) Spindle speeds, two ranges- 25 – 2,000 R.P.M.
(33) American Standard threads- 3 – 56 T.P.I.
(45) Metric threads- 0.40 – 7 mm
(64) Longitudinal feeds- 0.0015 to 0.552 I.P.R.
Tailstock travel- 3-1/8”
Tailstock taper- #3 Morse
2 axis digital read out DRO

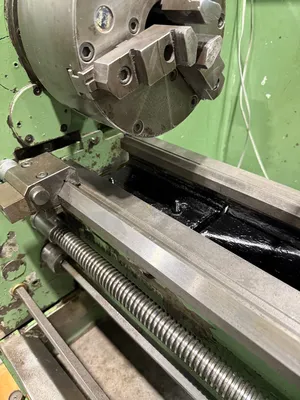

Induction hardened and ground bed ways
Removable gap bed

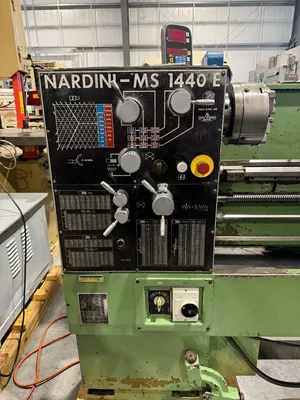

Universal gear box providing a comprehensive range of inch and metric feeds and threads

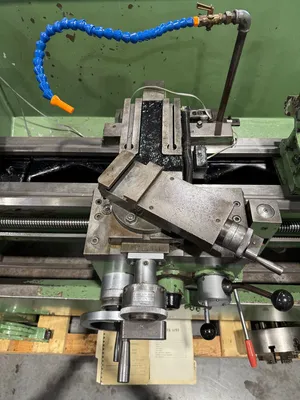

Dual reading inch and metric dials on compound and cross slide

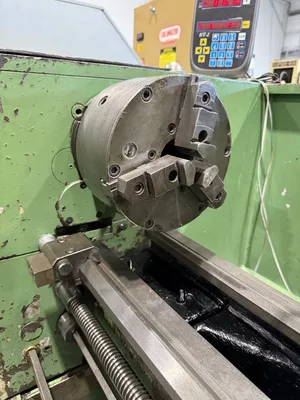

8" BUCK three-jaw chuck

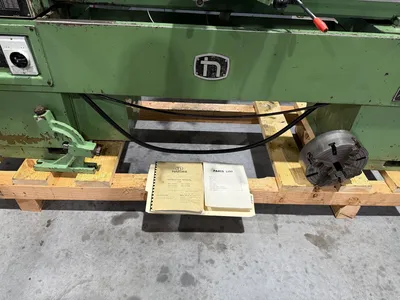

10" Diameter four-jaw chuck
Taper attachment (less guide block)

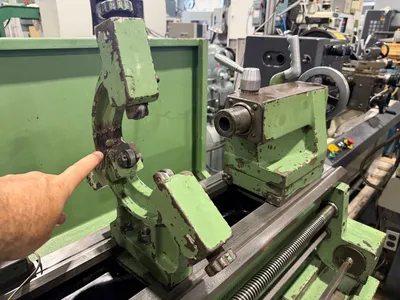

Follow rest
Steady rest (welded)
Threading dial
Self-contained coolant system with removable chip pan and full length rear splash guard
6.3/4 H.P. 3/60/220 volt two speed spindle drive motor and electrical controls
Machine is wired for 220 volt operation.
Machine weight- 2800 Lbs.
Machine dimensions- 80” x 35” W x 60’’ H
Machine location- F.O.B. Sarasota, Florida
