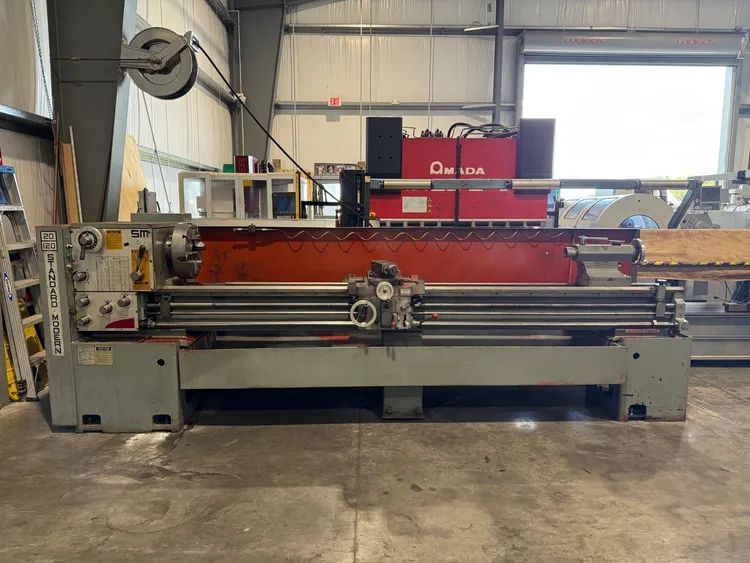

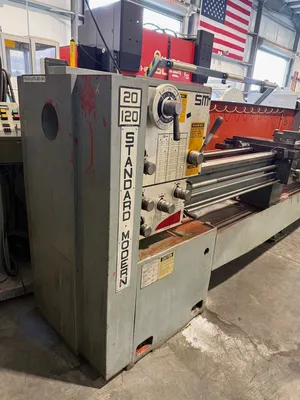

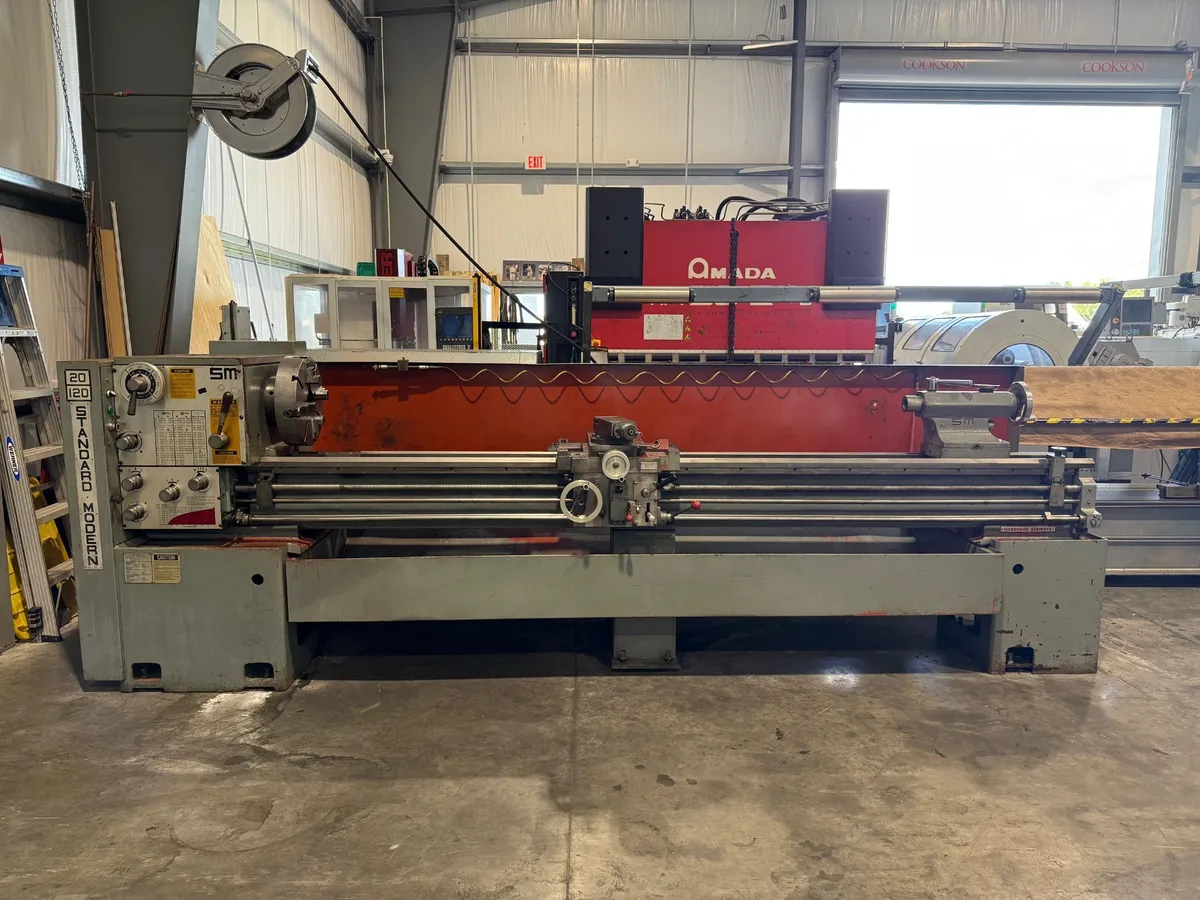

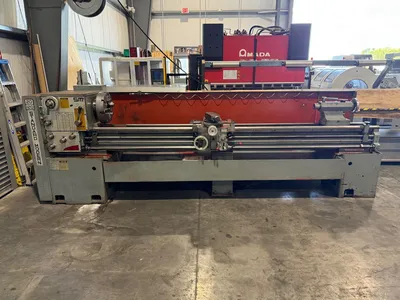

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
Have one to sell?
$18,500.00 USD
ConditionUsed
1 available

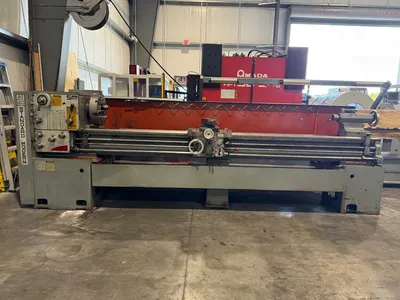

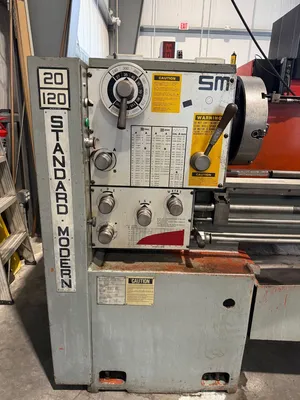

STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
STANDARD MODERN 20120 20” x 120”cc Engine Lathe #7696
Reference # 7696
Model # 20120

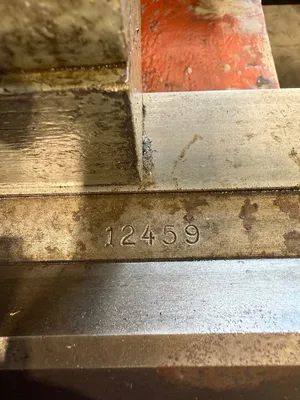

Serial # 12459
Swing over bed- 22”
Swing over saddle- 20”
Swing over cross slide- 12”
Distance between centers- 120”cc
Spindle speeds- (18) 27 – 1,600 R.P.M.
Spindle taper- D1-8
Spindle bore- 3”
Longitudinal feeds- .0015 - .105 I.P.R.
Inch threads- 2 – 127 T.P.I.
Metric threads- .2 – 14 mm

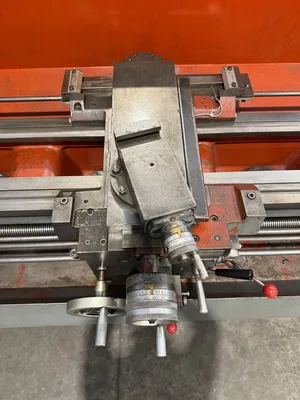

Cross slide travel- 12”
Compound travel- 5”
Bed width- 14”

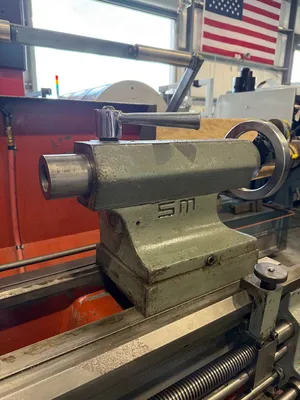

Tailstock taper- #5 Morse
Tailstock quill travel- 8”
Tailstock quill diameter- 2.94”
Inch/Metric dials
Threading dial

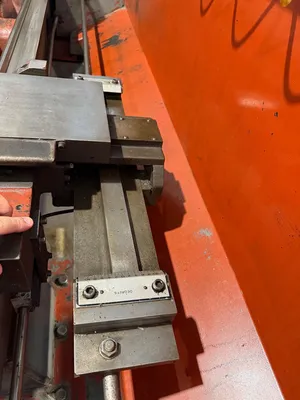

Taper attachment

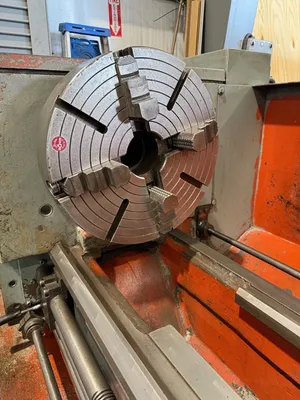

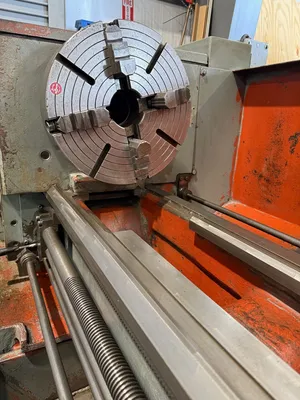

15-1/2” ROHM 4 Jaw Chuck
15 H.P. Main motor
Machine is wired 460 volt / 3 phase / 60 H.Z.
Machine dimensions- 186”L x 56” W x 65” H
Machine weight- 7500 Lbs.
Machine location- F.O.B. Sarasota, Florida
